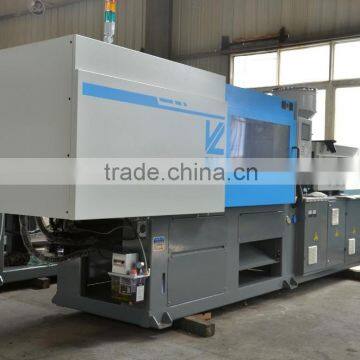

130Ton Plastic Injection Molding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Tube Head Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YOUCAN High Speed 130Ton Plastic Injection Molding MachineNegotiableMOQ: 1 Set -
YC-130 Plastic Injection Molding Machine Yuken Valve Techmation Computer Erckerle PumpNegotiableMOQ: 1 Set
-
Kinch 160 Ton Servo Motor Pallet Plastic Injection Molding MachineUS$ 19,500 - 19,800MOQ: 1 Set
-
Kinch 160 Ton Servo Motor Tableware Plastic Injection Molding MachineUS$ 19,500 - 19,800MOQ: 1 Set
-
Kinch 160 Ton Servo Motor Crate Plastic Injection Molding MachineUS$ 19,500 - 19,800MOQ: 1 Set
Condition
New
Type
Tube Head Injection
Style
Horizontal
Brand Name
YOUCAN
Model Number
YC130S
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
After-sales Service Provided
Engineers available to service machinery overseas
130Ton Plastic Injection Molding Machine
Our factory is located in Ningbo, China.
We are aiming to developing into a top-lined professional plastic injection molding machine manufacturer in China.
Our machine uses the first class brands parts as follows,

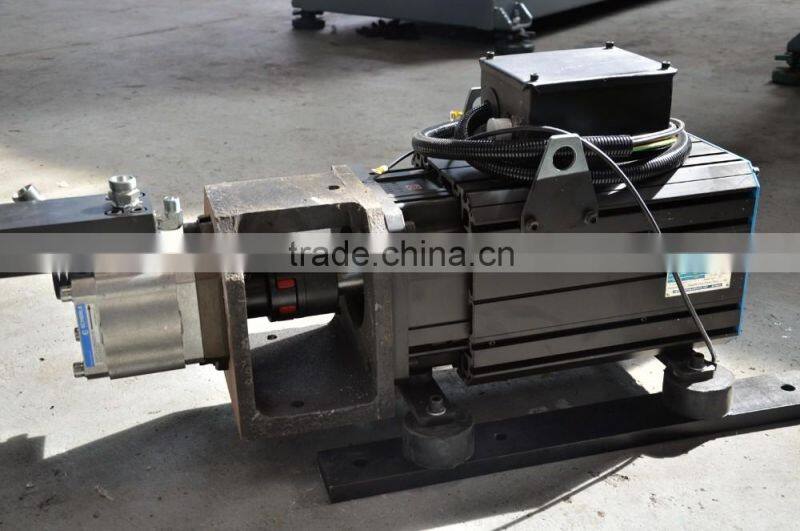

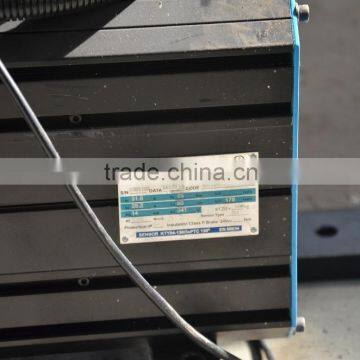

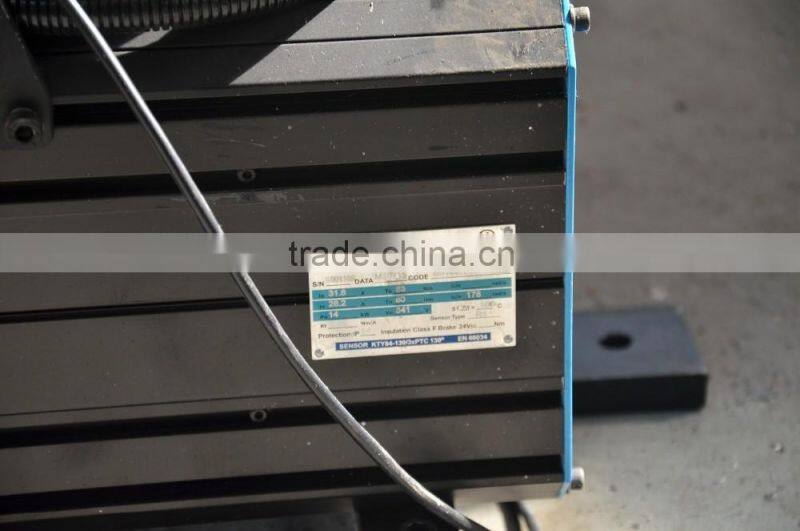

Servo Motor: Phase;

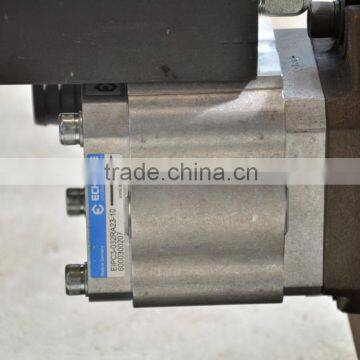

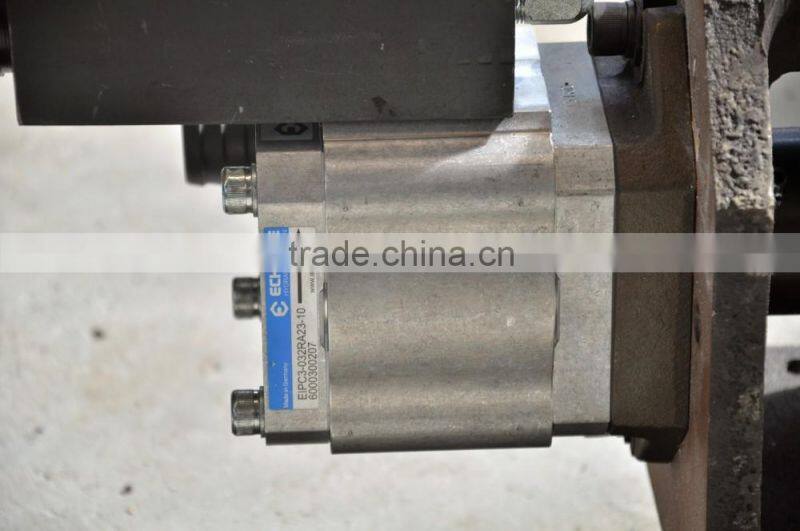

Gear Pump: Erckerle;

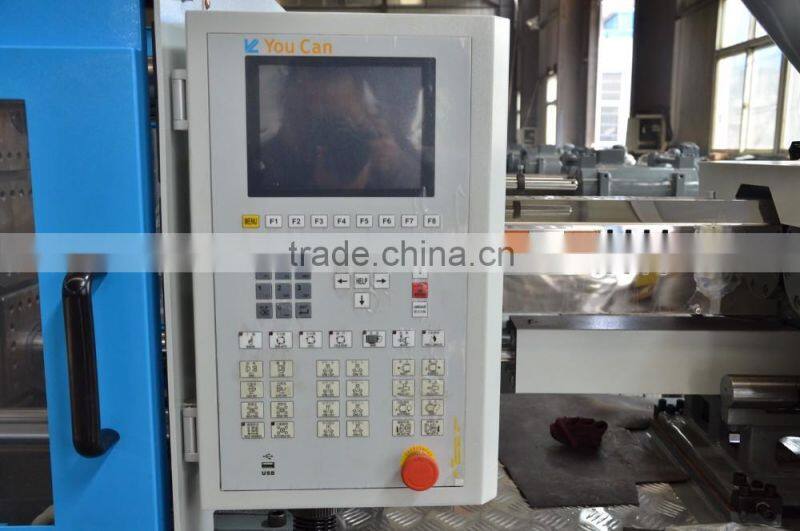

Computer: Techmation or KEBA;

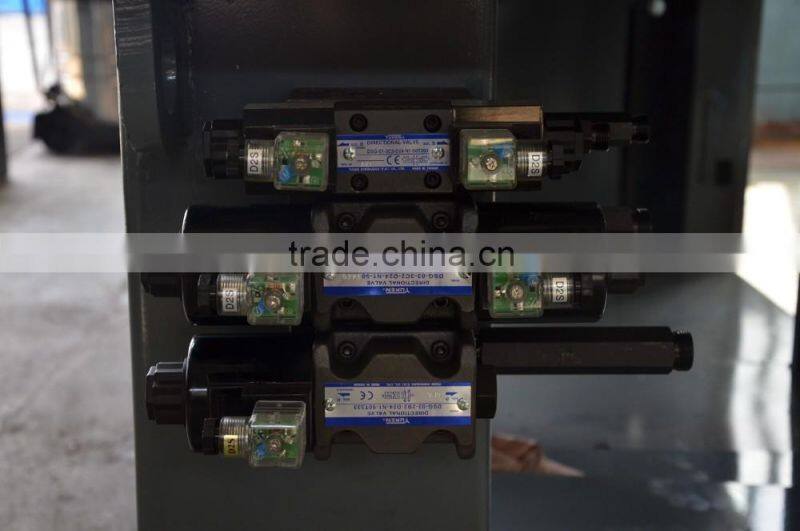

Valves: Yuken or Rexroth;
Contactor: SSR Scheneider;

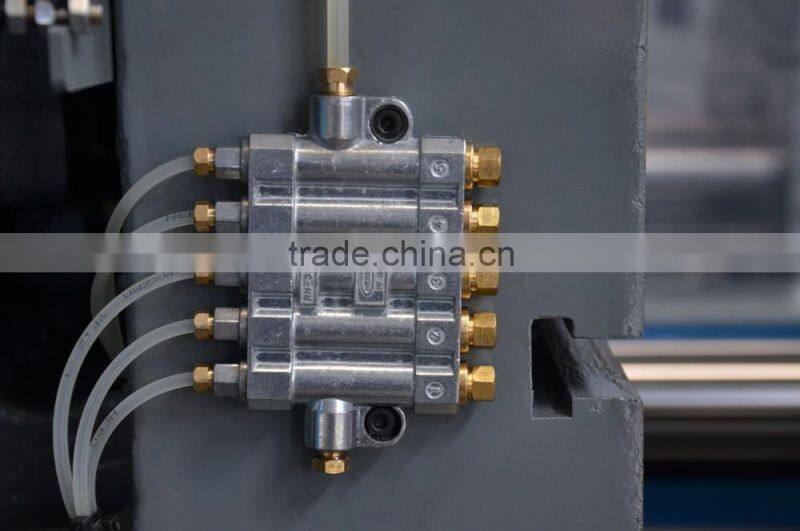

Lubrication System: Hegu;
Controller: Innovance.
130T Injection Molding Machine main technical datas as below;
| YC130S | ||||
| Injection Unite | A | B | C | |
| Shot Volume | CM3 | 215 | 263 | 302 |
| Shot Weight | Gram | 196 | 239 | 274 |
| Oz | 6.9 | 8.4 | 9.6 | |
| Screw Diameter | mm | 38 | 42 | 45 |
| Injection Pressure | MPa | 193 | 158 | 138 |
| Screw L/D Ratio | 22 | 20 | 18.5 | |
| Screw Stroke | mm | 190 | ||
| Screw Speed | r/min | 0~180 | ||

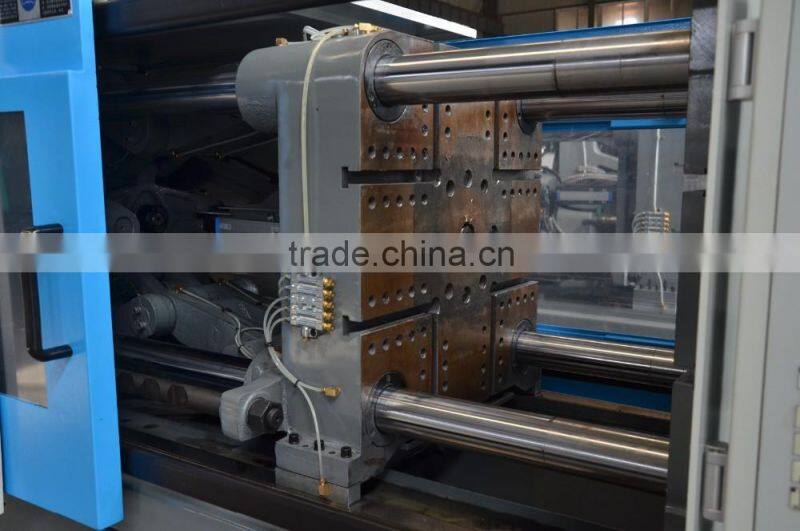

| Clamping Unit | ||||

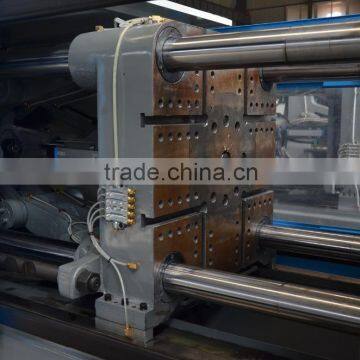

| Clamping Force | KN | 1300 | ||
| Opening Stroke | mm | 380 | ||
| Platen Size | mm*mm | 610*610 | ||
| Space Between Tie Bars | mm*mm | 410*410 | ||
| Mold Thickness(Min-Max) | mm | 160~450 | ||
| Max. Daylight | mm | 830 | ||
| Hydraulic Ejection Stroke | mm | 120 | ||
| Hydraulic Ejection Force | KN | 42 | ||
| Power Unite | ||||
| Hydraulic System Pressure | MPa | 17.5 | ||
| Pump Motor | KW | 11/18.2 | ||
| Heating Capacity | KW | 7.7 | ||
| Number of temp control zones | 4+Nozzle | |||
| General | ||||
| Dry-cycle Time | Sec | 1.3 | ||
| Oil Tank Capacity | Liter | 200 | ||
| Machine Dimensions | M*M*M | 4.6*1.2*1.8 | ||
| Machine Weight | KG | 4600 | ||
