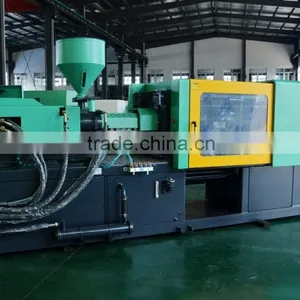

Kinch 160 Ton Servo Motor Crisper Plastic Injection Molding Machine
Model: KC90 - KC1000
Name: Tammy My Wechat: YQY932570502 Whats App: +0086 18329021230
Kinch M8 Series Plastic Injection Machine was especially designed for precisely producing. Equipped with 17.5Mpa system pressure, M8 series machine has very high reaction speed. Together with the specially designed Big Length to Diameter Ratio and Universal Plastic Components, our machine can make sure the high producing duplication accuracy and it is very suitable for injection molding of precision products.
Main Parameter Of Plastic Injection Molding Machine
| DESCRIPYION | UNIT | KC 260M8 | |||||||||
| INJECTION UNIT | A | B | C | ||||||||
| Screw diameter | mm | 42 | 46 | 53 | |||||||
| Screw L/D ratio | L/D | 22 | 20 | 17.5 | |||||||
| Shot Volume | cm3 | 346 | 415 | 551 | |||||||
| Injection weight | g | 325 | 389 | 516 | |||||||
| Injection rate | cm3/s | 124.2 | 149 | 197.8 | |||||||
| Plasticizing capacity | g/s | 18.4 | 24 | 34.5 | |||||||
| Injection Pressure | Mpa | 191 | 159 | 120 | |||||||
| Screw speed | rpm | 205 | |||||||||
| CLAMPING UNIT | |||||||||||
| Clamp tonnage | KN | 1600 | |||||||||
| Toggle stroke | mm | 430 | |||||||||
| Space between tie bars | mm | 460*460 | |||||||||
| Max.mold height | mm | 500 | |||||||||
| Min,mold height | mm | 180 | |||||||||
| Ejector stoke | mm | 140 | |||||||||
| Ejector tonnage | KN | 50 | |||||||||
| OTHER | |||||||||||
| Max.pump pressure | Mpa | 17.5 | |||||||||
| Pump motor power | KW | 15 | |||||||||
| Heater power | KW | 9.8 | |||||||||
| Machine dimension | m | 4.92×1.25×2.0 | |||||||||
| Machine weight | T | 5.3 | |||||||||
Main Parts Of Plastic Injection Molding Machine
| KC-M6/M8 Series Part List | ||
| Component | Brand | Origin |
| Servo motor | Phase | Italy |
| PC Controller | Techmaction 7" | Taiwan |
| Linear position transducer | JIESON/GEFREN | USA/Italy |
| AC contactor | Scheider | Franc |
| Stroke switch | Panasonic | Japan |
| Valves | YUKEN | Taiwan |
| Charging motor | Dandun | China |
| Adjustment die-height motor | Zhongyi | China |
| Vane pump | Nvichers | China |
| Variable pump | YUKEN | Japan |
| Main motor | Dongguan | China |
| Seals | Hallite | UK |
| Pressure | DMASS | Germany |
| Single switch | Zhengtai | China |
| Air switch | Zhengtai | Chian |
| Sensor | Jiazhun | Taiwan |
| Gear pump | Eckercle/Sumitomo | Germany/Japan |
| Servo driver | Inviter | China |
Main Feature and Function
CLAMPING UNIT
1. 5-point double toggle clamping system
2. Mechanical & electrical safety devices
3. Low pressure mould protection
4. Controllable multi-stage mold apen/chose position, pressure & speed
5. Fast mould clamping with differential device
6. Automatic mould height adjustment
7. Variable modes of ejector movement
8. Automatic central lubricarion
INJECTION UNIT
1. Double drive cylinder injection system
2. Controllable multi-stage injection pressure,speed and position
3. Controllable multi-stage dwell pressure, speed and time
4. Controllable multi-stage charging speed, position and time
5. PID barrel temperature control
6. Screw plasticizing back pressure control
7. Suck back function
8. Plasticizing cold start prevention
9. Self purging function
HYDRAULIC SYSTEM
1. Efficent and sound reduced hydraulic system
2. Weldless oil circuit
3. Hydraulic proportional control
4. Hydraulic elements by well-known brand with high reliability and long service life
5. Oil temperature alarm
CONTROL UNIT
1. Taiwan controller with 10 inch LED color screen
2. Mold data storage
3. Linear transducer for clamping/injection/ejection control
4. English, Spanish, Portuguese, Russian, Arabic and other language options

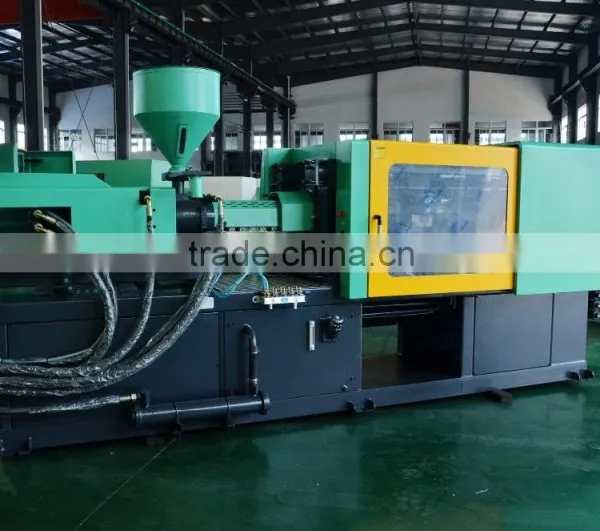

Main Picture Of KINCH 160 Ton Plastic Injection Molding Machine
PACKING: Wodden case packing
SHIPMENT: Average 30days, depend on order.
Corporation's customer service system, implements for the customer pre-sale, sells the neutral post-sale entire journey "one-stop" work style service, establishes the user file, active tracking service. The customer services center respective global service network by the company direct services, the sale on commission proxy selects the service and the main pass supplier direct services three service network construction becomes, insisted that the service idea wholeheartedly, 24 hours deals with the pattern, provide quickly, thorough and the intimate post-sale service for the user.
If you have any problem, please leave message to Tammy Yan! We have ready stock!
