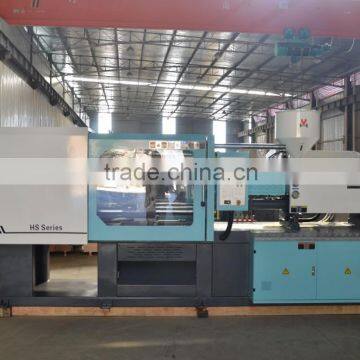

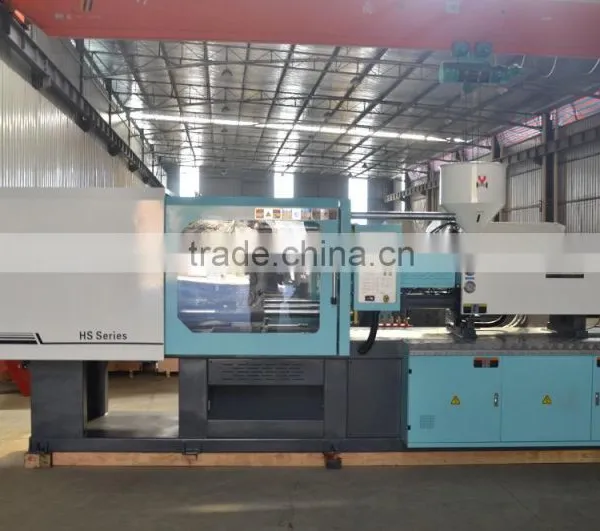

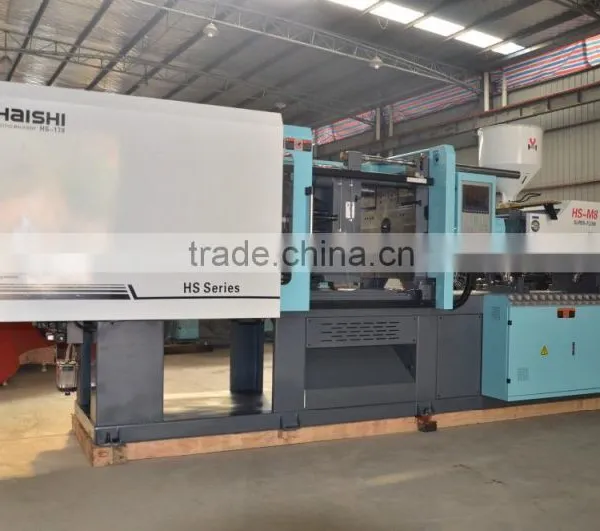

HAISHI 178 Ton Servo Motor PS Plastic Injection Molding Machine
Model: HS80 - HS1180
Name: Tammy My Wechat: YQY932570502 Whats App: +0086 18329021230
It is perfect injection molder for most components, thin-wall and thick-wall injection molding as well as many standard applications. A wide range of standard functions and multiple options can meet all kinds of your needs. Moreover, our veteran Haishi technicians devote themselves to meeting the special demands of the customers every day. High - quality Haishi injection molder features super low maintenance ratio, which can improve the productivity of the user substantially.
Main Parameter Of Plastic Injection Molding Machine
| DESCRIPTION | UNIT | HS - 178 | ||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 42 | 45 | 50 |
| Screw L/D Ratio | L/D | 22 | 20 | 18.5 |
| Theoretical Shot Volume | cm³ | 312 | 358 | 442 |
| Shot Weight(PS) | g | 284 | 326 | 402 |
| Injection Pressure | Mpa | 203 | 177 | 143 |
| Max.screw speed | rpm | 200 | ||
| CLAMPING UNIT | ||||
| Clamping Force | kn | 1700 | ||
| Opening Stroke | mm | 435 | ||
| Distance Betweenn Tie-bars | mm | 470×470 | ||
| Max. Mold Height | mm | 570 | ||
| Min. Mold Height | mm | 180 | ||
| Ejection Stroke | mm | 135 | ||
| Ejection Force | kn | 46 | ||
| OTHERS | ||||
| Drive Power | kw | 18.5 | ||
| Heating Capacity | kw | 9.9 | ||
| Machine Dimensions | m | 5.10×1.40×2.20 | ||
| Machine weight | t | 5.3 | ||
Main Parts Of Plastic Injection Molding Machine
| Configuration | Servo Motor Solution |
| Servo Controller | Innovance |
| Servo Motor | Innovance/Phase |
| Gear Pump | Sumitomo/Erckerle |
| Hose | Balflex |
| Connector | Eaton |

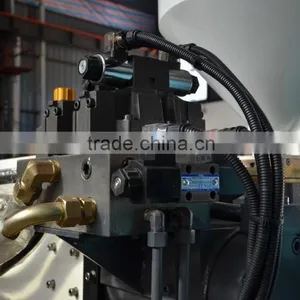

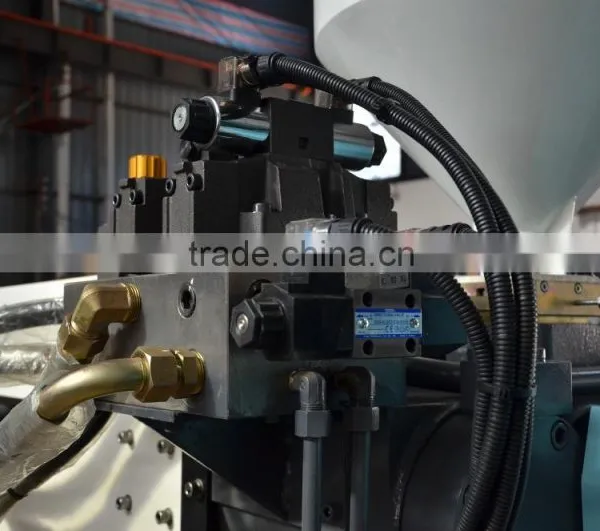

| Valve | Yuken/Finotek |
| Computer | EST/Techmation |
| AC Contactor | Schneider |
| Stroke Switch | Schneider |
| Single-Pole Switch | Chint |
| Micro Switch | Omron |
| Seal Component | Hallite |
| Pressure Gauge | Skon |
| Hydrulic Motor | Dandun |

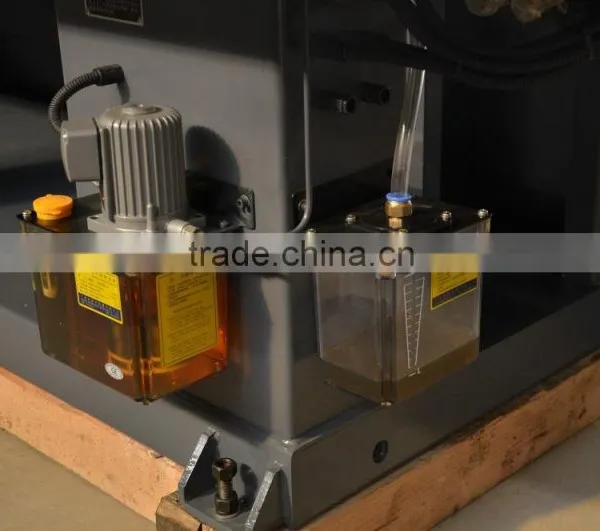

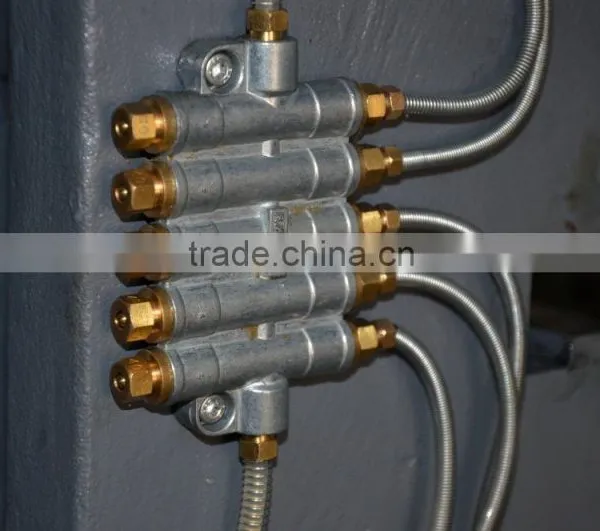

| Lubrication System | Runchau |
Main Feature and Function
Products Range: 80 Ton------1180 Ton
- Energy Saving Machines With Servo System
- PVC Special
- PET Special
- High Speed
- Full Electric
HS CREATS VALUES
- We use strong structure, the strong basement and strong clamping structure for heavy duty production requirements.
- We make very strict requirements for the cost control & give the best price for our client.
- We only use the best parts for our clients.
-
We are not only building the machine, we are also building the value for our clients.
- We provide good aftersale service, 24 hours mobile alive. You are welcome to connect us by E-Mail, whats app, wechat or Skype.
PACKING: Wodden case packing
SHIPMENT: Average 30days, depend on order.
Corporation's customer service system, implements for the customer pre-sale, sells the neutral post-sale entire journey "one-stop" work style service, establishes the user file, active tracking service. The customer services center respective global service network by the company direct services, the sale on commission proxy selects the service and the main pass supplier direct services three service network construction becomes, insisted that the service idea wholeheartedly, 24 hours deals with the pattern, provide quickly, thorough and the intimate post-sale service for the user.
If you have any problem, please leave message to Tammy Yan!
Name: Tammy My Wechat: YQY932570502 Whats App: +0086 18329021230
