High Speed Tableware Plastic Injection Molding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Tube Head Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Servo Motor Crisper Plastic Injection Molding MachineNegotiableMOQ: 1 Set -
220T Servo Motor Fruit Box Plastic Injection Molding MachineNegotiableMOQ: 1 Set
-
HAISHI 178 Ton Servo Motor Pallet Plastic Injection Molding MachineUS$ 20,300 - 20,600MOQ: 1 Set
-
Plastic Injection Molding Machine Using Techmation Computer Erckerle Pump Phase Servo MotorUS$ 27800.00 - 27800.00MOQ: 1 Set
-
Plastic Injection Molding Machine For Food BoxNegotiableMOQ: 1 Set
Condition
New
Type
Tube Head Injection
Style
Horizontal
Brand Name
YOUCAN
Model Number
YC220
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
347-520g
Clamping Force
2200kn
Opening Stroke
480mm
Power(W)
18.5kw/22kw
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas

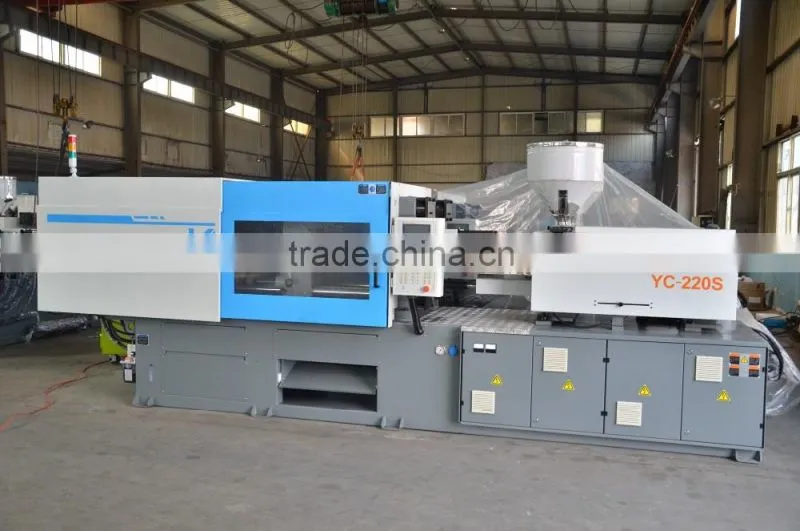

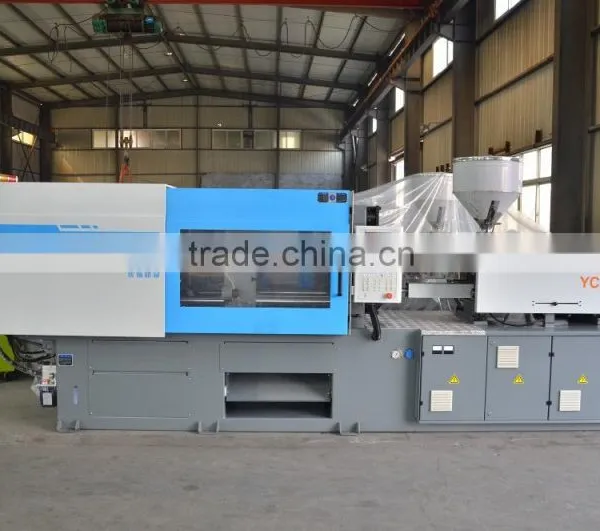

High Speed Tableware Plastic Injection Molding Machine
Name: Spring WhatsApp: +86 13567193083
Our factory is located in Ningbo, China.
Our machine uses the first class brands parts as follows:
Servo Motor: Phase;
Gear Pump: Erckerle;

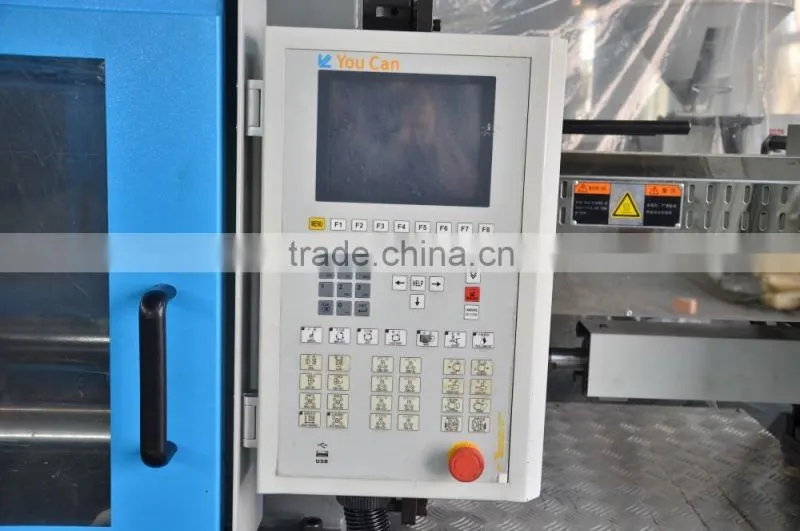

Computer: Techmation or KEBA;

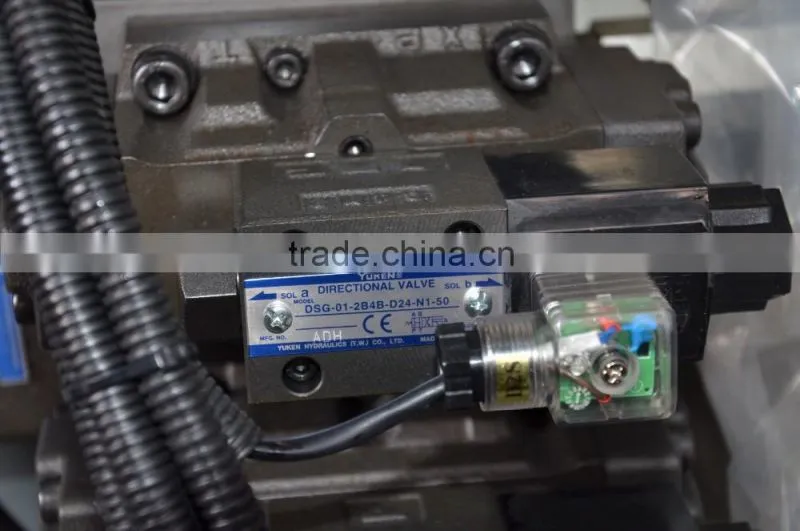

Valves: Yuken or Rexroth;
Contactor: SSR Scheneider;

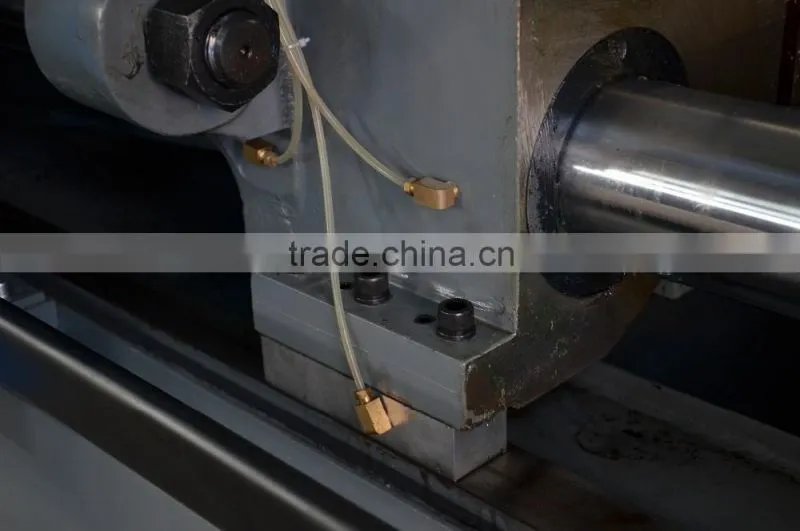

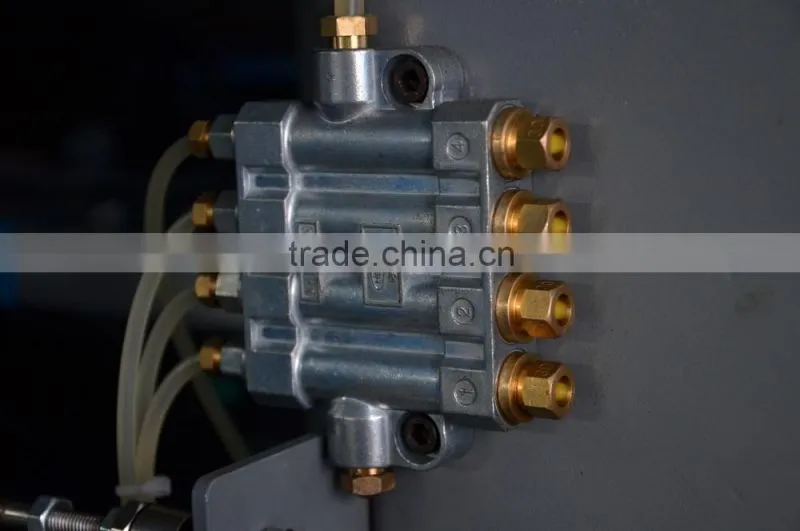

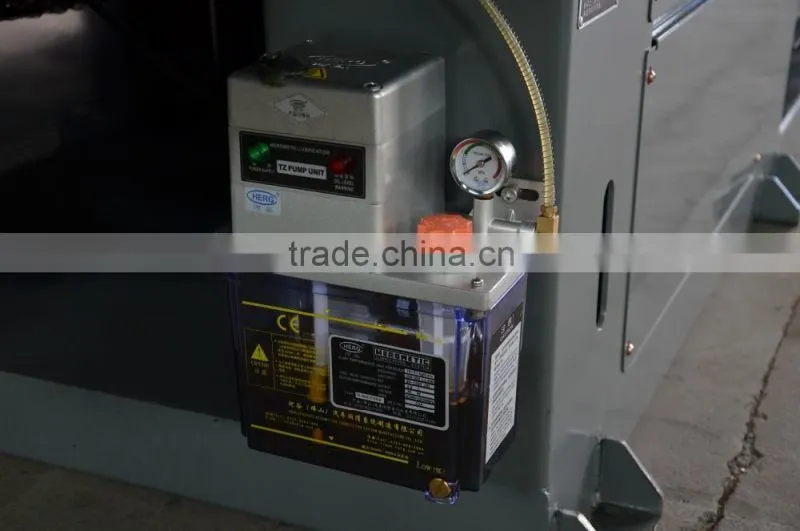

Lubrication System: Hegu;
Controller: Innovance.
Model: YC220
| Injection Unite | A | B | C | |
| Shot Volume | CM3 | 381 | 470 | 569 |
| Shot Weight | Gram | 347 | 428 | 520 |
| Oz | 12.1 | 15 | 18.1 | |
| Screw Diameter | mm | 45 | 50 | 55 |
| Injection Pressure | MPa | 217 | 176 | 145 |
| Screw L/D Ratio | 22:1 | 20:1 | 18:1 | |
| Screw Stroke | mm | 240 | ||
| Screw Speed | r/min | 0~200 | ||

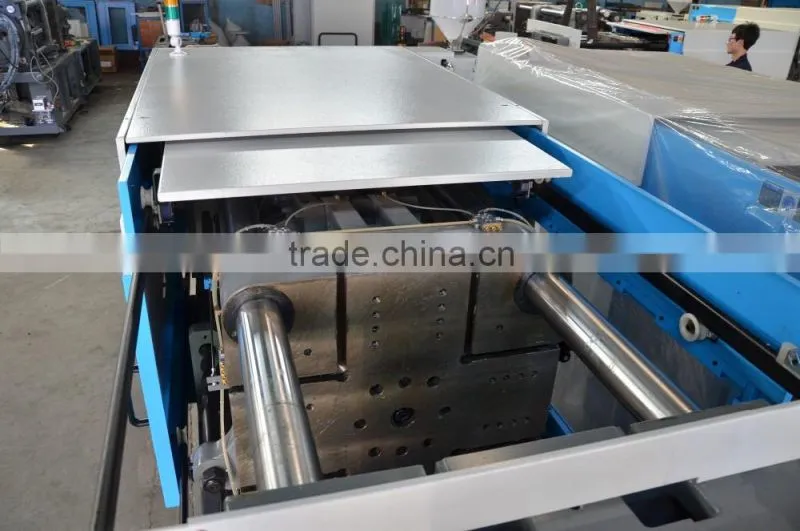

| Clamping Unit | ||||
| Clamping Force | KN | 2200 | ||
| Opening Stroke | mm | 480 | ||
| Platen Size | mm*mm | 745x745 | ||
| Space Between Tie Bars | mm*mm | 510x510 | ||
| Mold Thickness(Min-Max) | mm | 200~560 | ||
| Max. Daylight | mm | 1040 | ||
| Hydraulic Ejection Stroke | mm | 150 | ||
| Hydraulic Ejection Force | KN | 67 | ||
| Power Unite | ||||
| Hydraulic System Pressure | MPa | 17.5 | ||
| Pump Motor | KW | 18.5/22 | ||
| Heating Capacity | KW | 13.1 | ||
| Number of temp control zones | 4+Nozzle | |||
| General | ||||
| Dry-cycle Time | Sec | 4.5 | ||
| Oil Tank Capacity | Liter | 310 | ||
| Machine Dimensions | M*M*M | 5.4x1.3x2.1 | ||
| Machine Weight | KG | 6800 | ||
