Specifications
1.Laser lifetime: 100,000 hours2.Marking speed: 7,000mm/s
3.Free from maintenance
4.Machine power less than 800w
5.CE/FDA
Portable Fiber Color Laser Marking Machine
1.Brief Introduction:
This laser marking machine is widely used in hardware products, tools, accessories, electronic components, integrated circuits, instruments and other material marking.

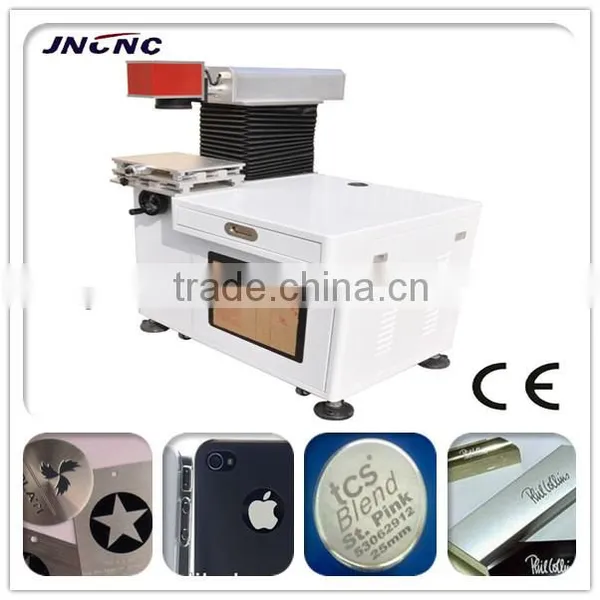

2.Picture of Fiber Color Laser Marking Machine:
3.Technical Parameter:
Model |
Fiber Laser Marking Machine |
Laser Power |
20W |
Standard Marking Area |
100x100mm |
Optional Marking Area |
150X150mm |
Laser Wavelength |
1064nm |
Laser Repetition Frequency |
20-80KHZ |
Cooling System |
Water Cooling |
Reposition Accuracy |
≤±0.001mm |
Marking Depth |
≤0.3mm(According to the material) |
Marking Linear Speed |
≤15000mm/s |
Marking Linear Width |
0.01mm |
Minimum Character |
0.25mm |
Working Voltage |
AC220V±10% 50HZ 15A/20A/25A |
Consuming Power |
≤800W |
4.Applicable Field and Materials:
Electronic Components |
Resistance, capacitance, chips, printed circuit boards, computer keyboard |
Apparatus and Meter |
Panel signs, precision equipment, etc |
Instrument |
Panel signs nameplate, precision equipment, etc |
Hardware Tools |
Knives, tools, measuring tools, cutting tools, etc |
Automobile Parts |
Fistons, piston rings, gears, shafts, bearings, clutch lights, etc |
Mechanical Parts |
Bearings, gears, standard parts, motors, etc |
Daily Necessities |
Handcrafts, zipper, key holder, sanitary ware, etc |
Jewelry Rings |
Jewelry, gold, silver, etc |
Food, drinking packing |
Plastic packings, etc |

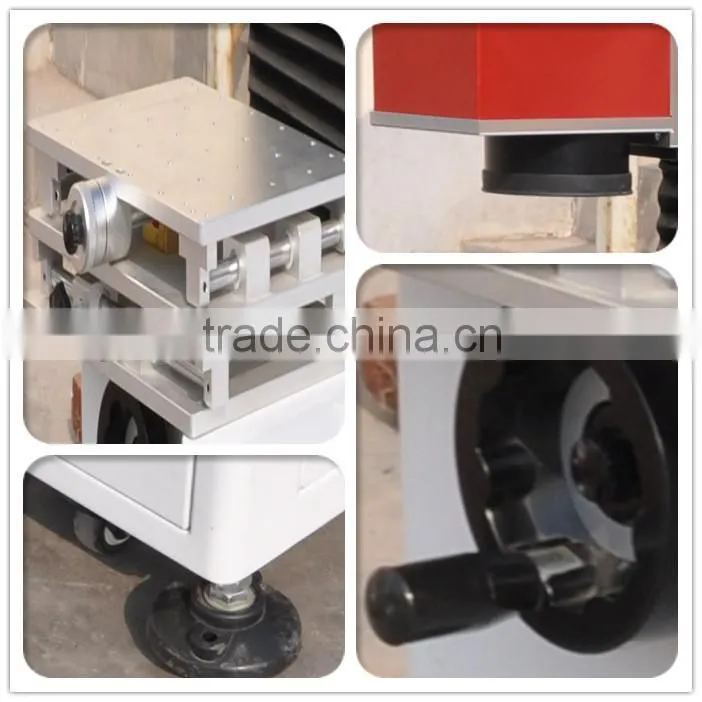

5.Main Parts Picture:
6.Features of Laser Marking Machine:
1).Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
2).High Precision: Re-position precision is 0.002mm
3).High Speed: Imported scanning system makes the scanning speed is up to 7m/s
4).Easy Operating: Afford specific marking software based on Windows, which can adjust the laser power and pulse frequency. You can make input and output by computer according to edit in both of the specific marking software and graphic software such as AutoCAD, CorelDRAW and Photoshop.
5).High Reliability: MTBF>100,000 hours
6).Energy Saving: The efficiency of optic-electrical converting is up to 30%
7).Low Running Cost: No wearing part. Free maintaining

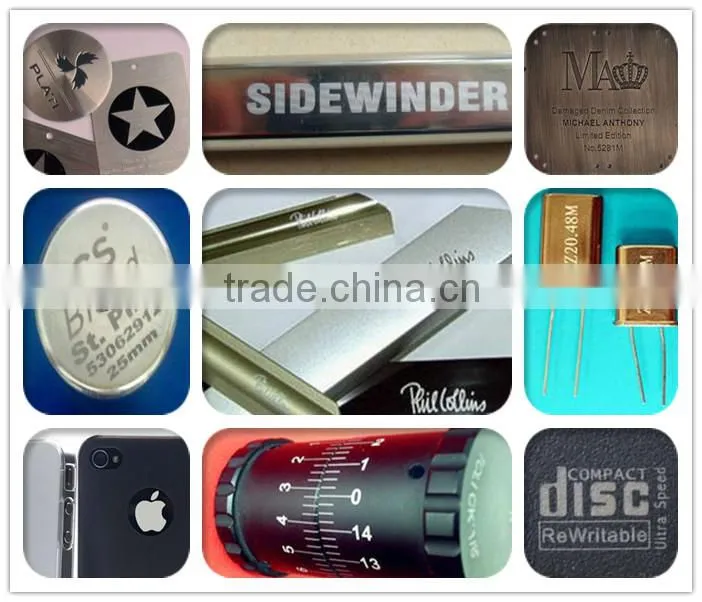

7.Samples of Laser Marking Machine:
8. Controlling Software System:
1).The software controlling system has the interface of WINDOWS and comprises files output by software such as CORELDRAW, AUTOCAD, PHOTOSHOP, etc
2).It can support graphic file formats such as PLT, PCX, DXF, BMP etc and use fonts such as SHX, TTF directly.
3).It also can mark automatic code, sequence number, batch number, date, bar code and two-dimensional code, and the software can mark the figures on the opposite side.

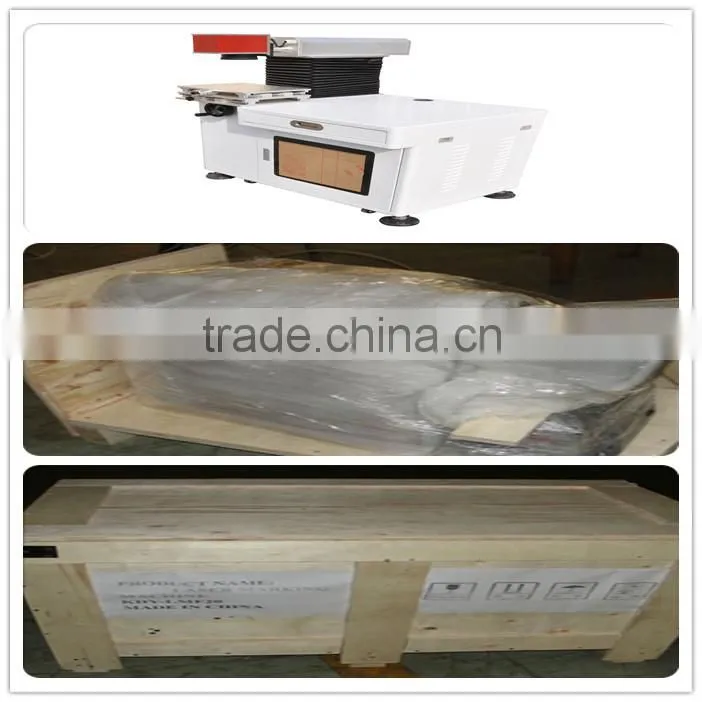

9.Packing Show:
10.Warranty and After-sale Service:
1).12 months warranty for the whole machine
2).24 hours technical support by e-mail
3).Use friendly English software, user manual and detailed Videos/CD
11. Why fiber laser marking machine is better?
1).It uses advanced fiber laser pumping technology, producing higher quality beam.
2).Water cooling
3).Free from maintenance (100,000 hours service time)
4).Smart compact structure
