Specifications
1Laser working life:100,000 hours2Reposition accuracy:0.05mm/m
3Free maintenance
4Max cutting speed 30,000mm/min
5.CE FDA
CNC Fiber Laser Metal Cutting Machine Price
1.Breif Introduction:
This machine is widely used in metal material cutting.Ideal choice for cutting sheet metal such as Carbon steel, Silicon steel, Stainless steel, and other metal materials .Widely used in sheet metal processing, metal ware, kitchen appliance,etc.

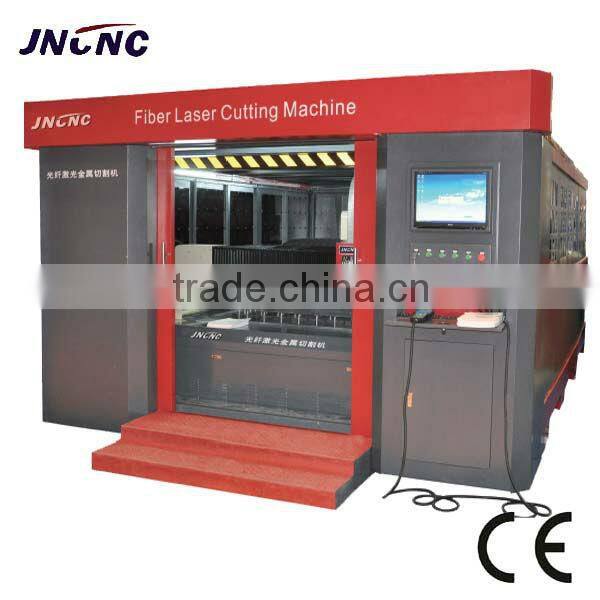

2. Metal Cutting MachinePicture:
3.Parameter:
Fiber Laser Cutting Machine Main Technical Data: | |||
Laser Type: |
Fiber laser |
||
Laser Power: |
1000W / 500W / 400W /300W/200W |
||
Working area: |
1300 x 2500mm |
1500 x 3000mm |
2000 x 4000mm |
Working Table Structure: |
Fixed / Pallet Working Table |
||
Control System: |
PMAC full-closed loop servo control |
||
Driving Mode: |
Double ball screw driving / Double gear rack driving |
||
Idle/Processing Speed: |
60m/min/24m/min |
||
Positioning Accuracy: |
0.05mm |
||
Cooling System: |
High precision constant temperature water chiller |
||
Protection System: |
Enclosure protection |
||
Power Supply: |
AC220V ± 5% 50/60Hz/AC380V ± 5% 50/60Hz |
||
Total Power: |
7.5KW/6KW~20KW |
||
Support Format: |
PLT, DXF, BMP, AI, DST, DWG, etc. |
||
Floor Space: |
5.4m x 4.6m (shuttle working table) |
||
Other Standard Collocation: |
Metal nesting software, dual-pressure gas route of 3 kinds of gas sources, dynamic focus, remote controller, etc. |
||

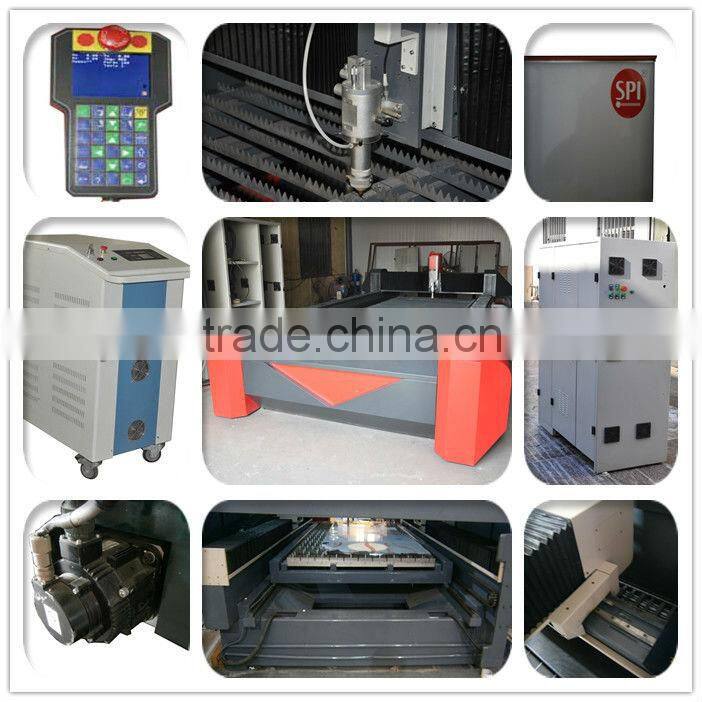

4. Detailed Picture:
1) Compact structure, small floor area.
2 ) Stability and reliability of light path system and control system.
3 ) High performance and low operating cost, famous fiber laser with up to more than 100 thousand hours life-cycle.
4 ) Higher cutting quality and efficiency, cutting speed is up to 15 m/min with appearance and beautiful cutting edge.
5 ) High precision servo motors, lead screws and guide ways with famous brands to ensure the efficiency and accuracy, greatly increasing the stability and reliability.

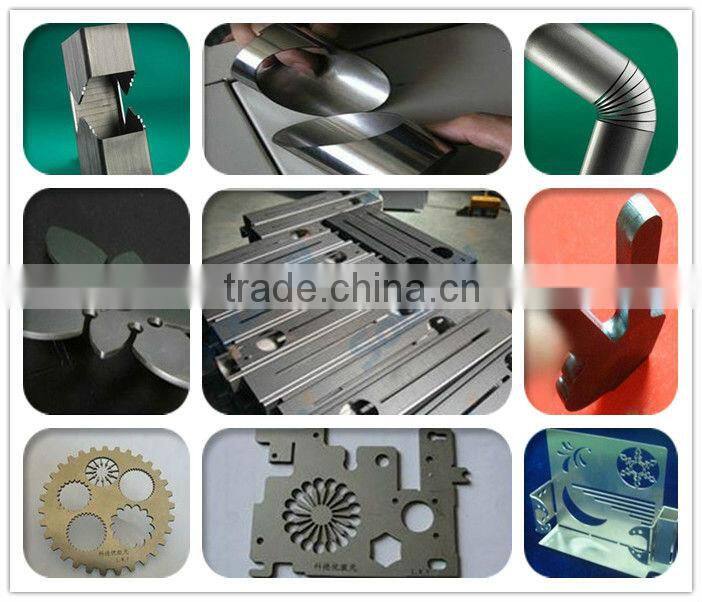

5. Sample Picture:
1) Faster cutting speed and higher quality cutting result compared to other cutting solutions.
2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals.
3) Low use-cost and maintenance cost (less energy as the laser is absorbed into the metal being cut). The unit will consume little to no energy when not active, easy operation and convenient maintenance (Long lifespan100,000 hours) of the laser module (laser source 300W, 500W, 1000W for choice).
4) Auto focus system to change focus length automatically while processing uneven materials.

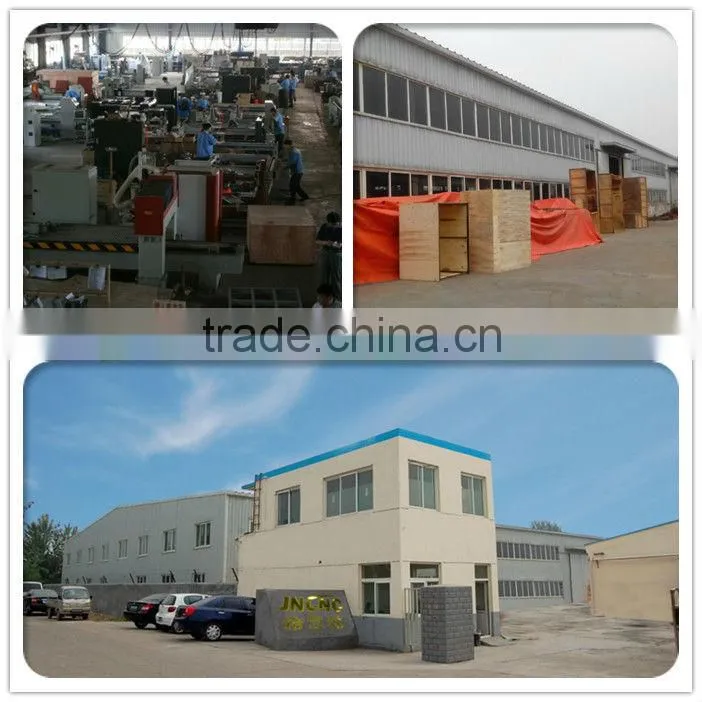

6.Factory Show:
7.Exhibition Show:
