Help Center500W YAG Metal Laser Cutting Machine Price
Related Products
-
500W YAG Stainless Steel Metal Laser Cutting MachineUS$ 38,000 - 41,000MOQ: 1 Set -
CNC Mini Craft Acrylic Laser Cutting MachineUS$ 2,300 - 2,600MOQ: 1 Set
-
130W Co2 Low Cost Plastic Laser Cutting MachineUS$ 4,300 - 4,600MOQ: 1 Set
-
CO2 Laser Marble Brick Engraving MachineUS$ 3,400 - 3,700MOQ: 1 Set
-
Advertisng 100W Portable Laser Metal Cutting MachineUS$ 2,900 - 3,200MOQ: 1 Set
Specifications
1Reposition accuracy: 0.02mm/m2.OEM available
3.Max cutting thickness up to 7mm
4.YASKAWA servo motor
5.CE/FDA

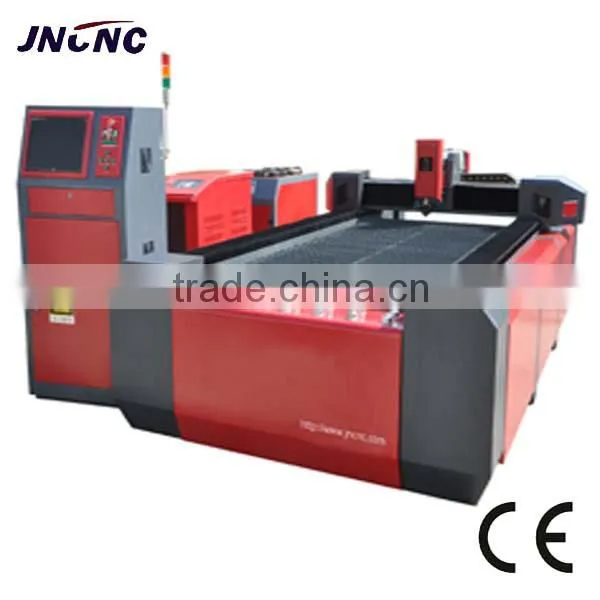

500W YAG Metal Laser Cutting Machine Price
1.Brief Introduction:
YAG laser cutter is used to cut metal material such as mild steel, stainless steel etc, and widely used in advertising signs, sheet metal structures, high and kitchen utensils, automobile, machinery, metro parts and other metal parts processing industry .

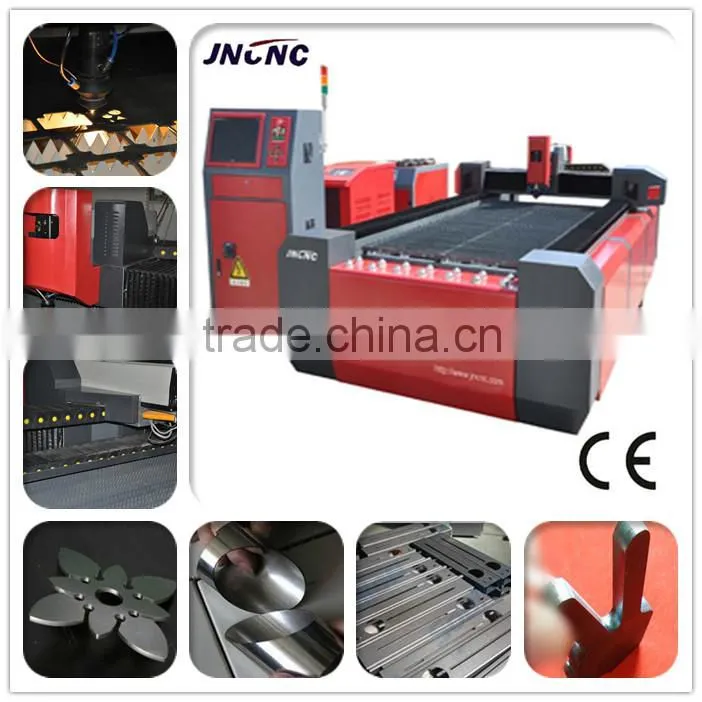

2.Picture of Metal Laser Cutting Machine Price:
3.Technical Parameters:
Model No. |
CNC-Y1325 |
CNC-Y2040 |
CNC-Y1530 |
|
||
Working Area |
1300×2500mm |
2000×3000mm |
1500×3000mm |
|
||
Laser Type |
YAG lamp-pumped solid laser generator |
|||||
Laser Power |
500W / 650Watts |
|||||
Working Table |
Cross sliding platform, Rack working platform |
Rack working platform |
||||
laser cutting machine Cutting Speed |
0~30000mm/min |
|||||
Repeating Positioning Accuracy |
±0.1mm |
|||||
Motion System |
Servo motor, Ball screw driving system, LCD display numerical off-line control system |
|||||
Cooling System |
Constant temperature water chiller |
|||||
Power Supply |
AC380V±5% 50/60Hz |
|||||
Laser Cutting Machine Supporting Format |
PLT, DXF, BMP, AI, DST, DWG, etc. |
|||||
Impulse frequency |
0-500Hz |
|||||
Location accuracy |
±0.03mm/m |
|||||
Repeat location accuracy |
±0.1mm/m |
|||||
Min cutting kerf |
0.15mm |
|||||
Max cutting thickness |
8mm |
|||||
Location speed |
15m/min |
|||||
Max cutting speed |
6m/min(different material, different speed) |
|||||
Power supply |
Three-phase AC380V±10%,50Hz |
|||||
|
Working table |
Rack working platform Dynamic focusing device, Control handle, 3000W following down exhausting system (2 sets) |
|||||
|
Control system |
Googol control system(including software) |
Rotary device, Pneumatic loading device, fast digitizing system, auto-recognition system, Polishing coloring, Pattern engraving |
||||
Location system |
Red dot indicator |
|||||
Dynamic focusing device |
Yes |
|||||
|
Water cooling system |
Constant temperature water chiller |
|||||

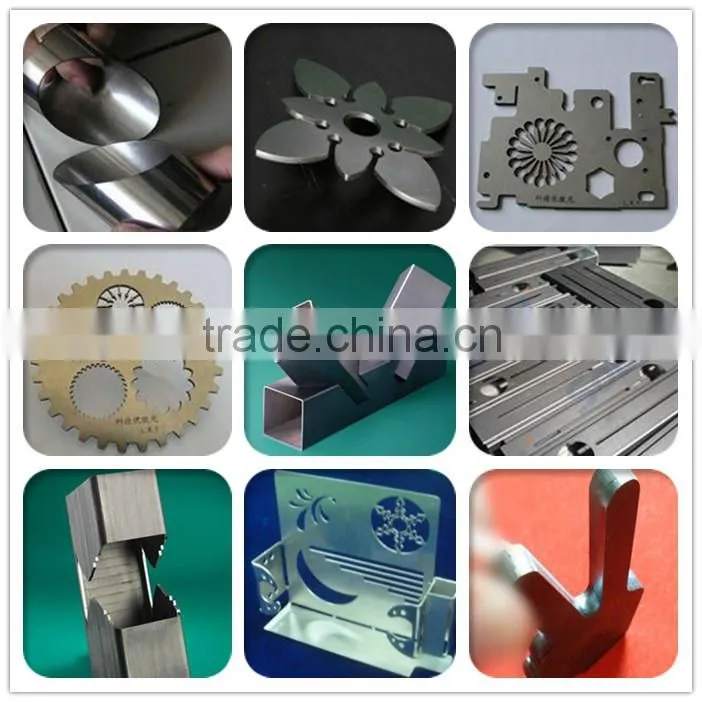

4.Samples Show:
5.Applicable Industry:
YAG laser cutting machine has been widely used in sheet metal, hardware products, structural steel, precision mechanical, auto components, nameplate advertisement, crafts, toys, packages, etc.
6. Applicable Materials:
YAG laser cutter is the first choice to cut stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, galvanized sheet, aluminum, copper, brass, bronze, gold, silver, titanium plates, metal sheets, metal plates, metal tubes and pipes, etc.

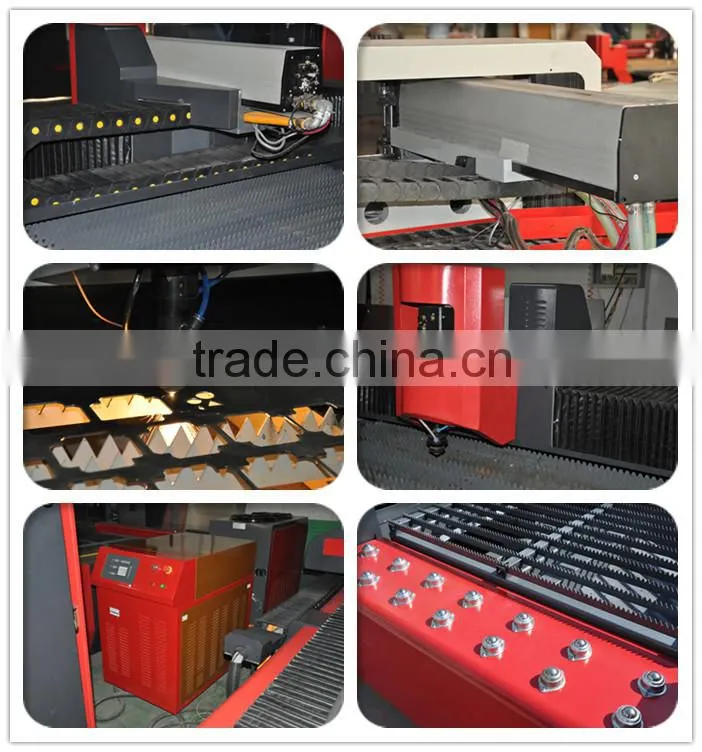

7.Main Parts Pictures:

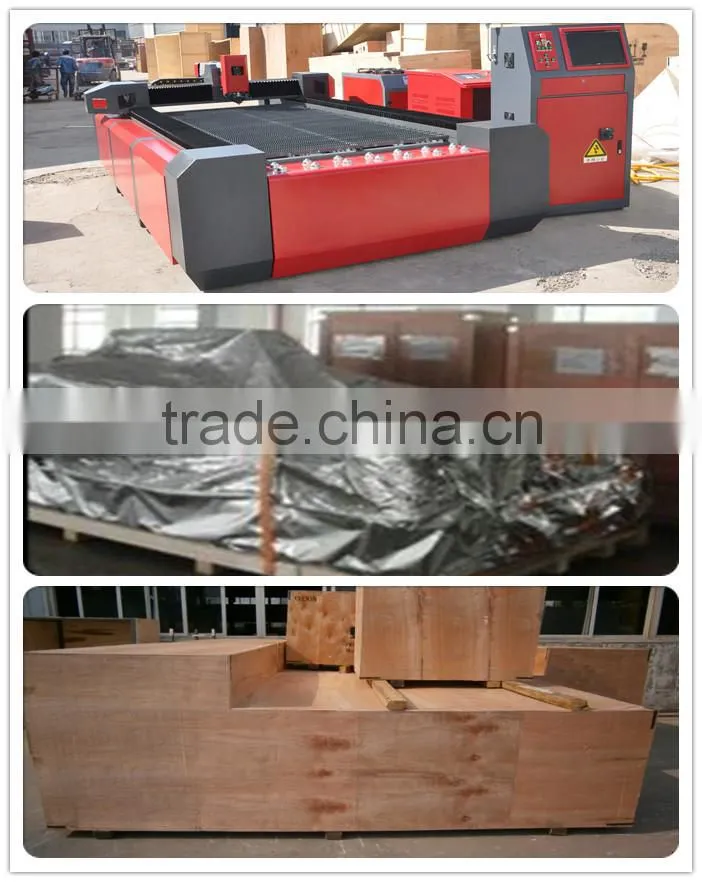

8.Packing Picture:
9.Exhibition Show:
10.Warranty and After Sales Service:
1).One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2).Maintenance free of charge during lifespan.
3).Free training course at our plant.
4).We will provide the consumable parts at an agency price when you need replacement.
5).24 hours on line service each day, free technical support.
6).Machin.e has been adjusted before delivery, operation disk is included.
