Specifications
1.Heat affected zone much smaller than plasma2.Nearly invisible burr
3.YASKAWA servo system
4.7mm Max cutting thickness

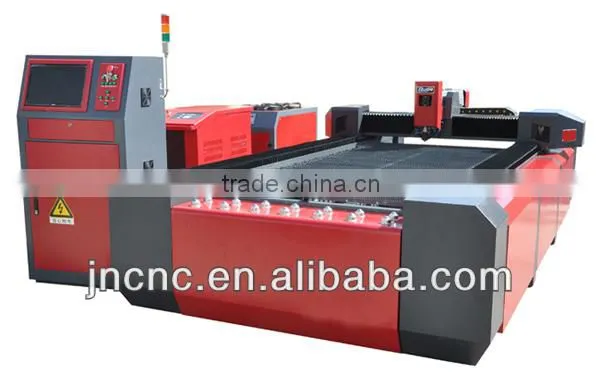

500W YAG Stainless steel Metal Laser Cutting Machine
1. Brief introduction:
Widely use in cutting thin metal material such as mild steel, stainless steel, iron, alloy with high-speed, high precision, and high efficiency, it is the best choice of the metal processing industry.

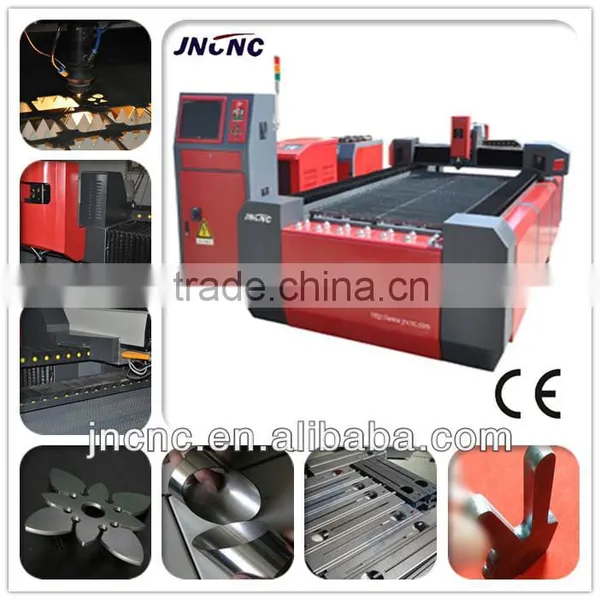

2. Metal laser cutting machine picture:
3. Parameters:
Model |
CNC-YL1325 |
|||
Working Area |
1300×2500mm |
|||
Laser Type |
YAG lamp-pumped solid laser generator |
|||
Laser Power |
500W(option:650W) |
|||
Working Table |
Cross sliding platform, Rack working platform |
Rack working platform |
||
laser cutting machine Cutting Speed |
0~3000mm/min |
|||
Repeating Positioning Accuracy |
±0.04mm |
|||
Motion System |
Servo motor, Ball screw driving system, LCD display numerical off-line control system |
|||
Cooling System |
Constant temperature water chiller |
|||
Power Supply |
AC380V±5% 50/60Hz |
|||
Laser Cutting Machine Supporting Format |
PLT, DXF, BMP, AI, DST, DWG, etc. |
|||
Impulse frequency |
0-500Hz |
|||
Location accuracy |
±0.03mm/m |
|||
Repeat location accuracy |
±0.1mm/m |
|||
Min cutting kerf |
0.15mm |
|||
Max cutting thickness |
7mm |
|||
Location speed |
15m/min |
|||
Power supply |
Three-phase AC380V±10%,50Hz |
|||
Working table |
Rack working platform Dynamic focusing device, Control handle, 3000W following down exhausting system (2 sets) |
|||
Control system |
Bochu(Shanghai) |
Rotary device, Pneumatic loading device, fast digitizing system, auto-recognition system, Polishing coloring, Pattern engraving |
||
Location system |
Red dot indicator |
|||
Dynamic focusing device |
Yes |
|||
|
Water cooling system |
Constant temperature water chiller |
|||
4.Applicable materials:
Mainly suitable for fast cutting on various sheet metals such as
carbon steel, silicon steel, stainless steel, aluminum alloy, titanium
alloy, galvanized sheet and other sheet metal.
5.Applicable industries:
Applied in a variety of industries, such as medical
microelectronics, spectacle frame, metro accessories, mechanical
parts, arts and crafts, hardware, advertising, etc.

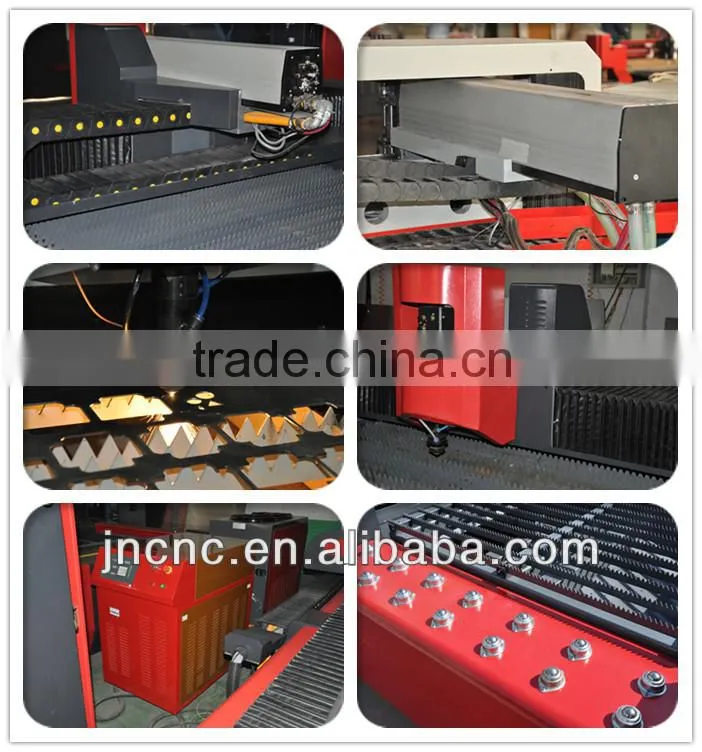

6.Main parts picture:

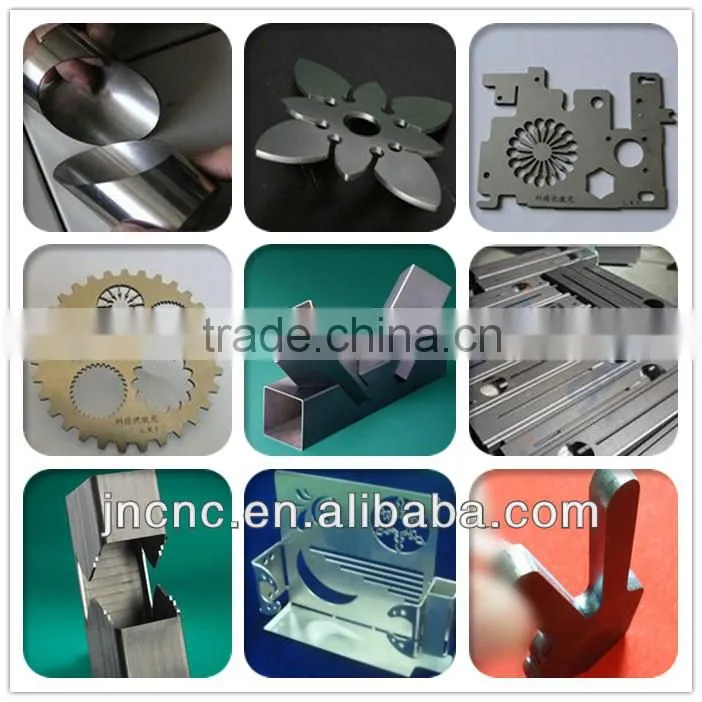

7. Samples pictures:

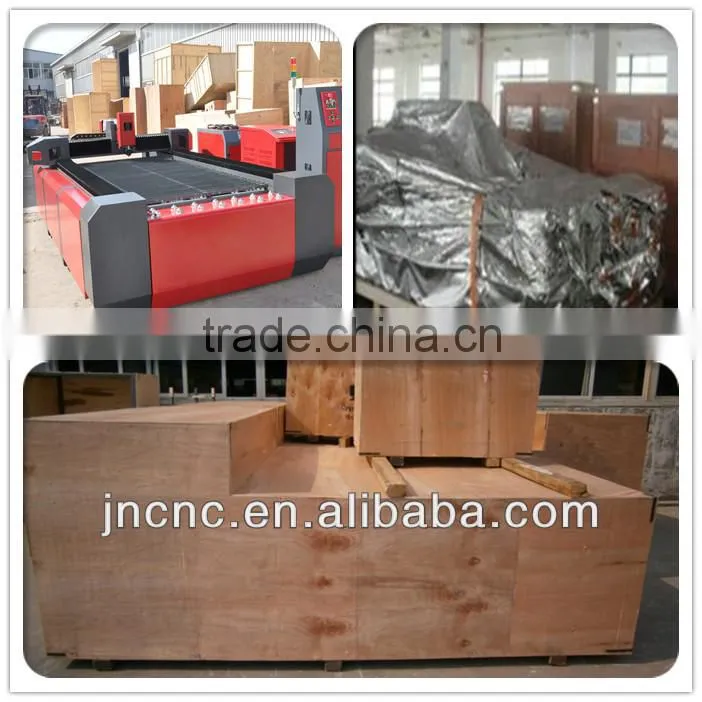

8. Packing details:
9. Factory show:
10. Warranty and after sales service:
1) One year free warranty, main parts are free of charge when problems happened during this period.
2) Life time free maintenance service.
3) Free training course at our factory with professional engineers.
