CNC Mini Craft Acrylic Laser Cutting Machine

Specifications

1.40W 60W laser power
2.Economical type,easy operating
3.water pump or chiller cooling system
4.Hobby market
5.CE/FDA

CNC Mini Craft Acrylic Laser Cutting Machine





1. Brief Introduction:



This machine can engrave and cut wood, fabric, bamboo, rubber, stone and other non-metal materials,widely used in advertising,garment,craft,model,packing,decoration industries.

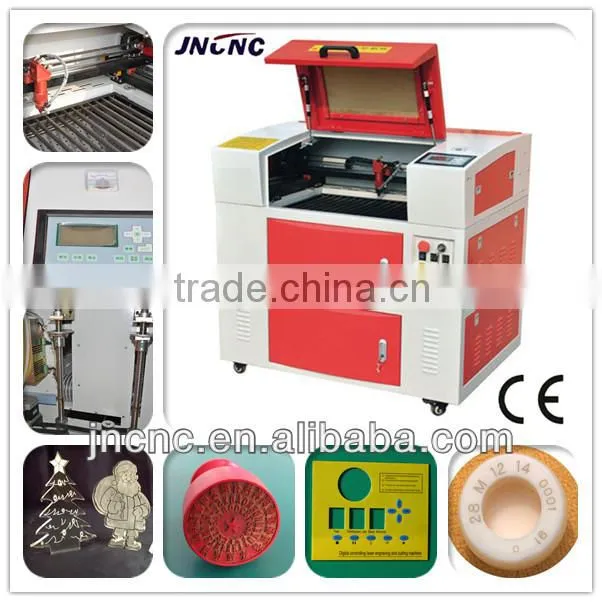

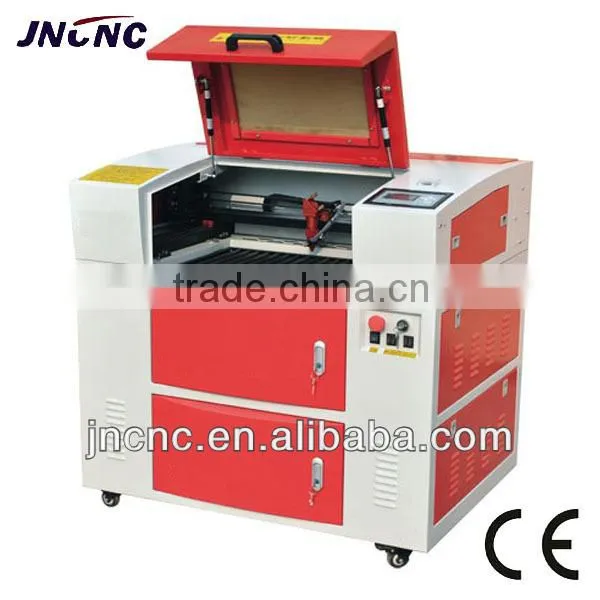

 2. Acrylic Laser Cutting Machine Picture:







3. Parameters:



Model Name	CNC-L5030
Working Area	500*300mm
Laser Power	60W
Laser Type	Sealed-off Glass CO2 Laser Wavelength: 10.6um
Cooling System	Water cooling
Laser Output Control	0-100% no section control, soft inner 0-100% adjustable
Control System and Driver	High Speed DSP control system, stepper motor, high subdivision driver
Engraving Speed	0-1200mm/s
Cutting Speed	0-600mm/s
Voltage	AC220V/110V±10%   50HZ/60HZ
Reposition Accuracy	≤±0.01mm
Minimum Letter Size	English : 1mm
Machine Power	≤1000W
Rise and fall height	High-precision ball screw electric lift 100mm
Working Environment	Temperature: 0-45°C   Humidity: 5%-95% ( No condensate water)
Warranty	12 Months (6 months for laser tube)
Supported Format and Software	PLT, DST, DXF, BMP, AI; Support AutoCAD, Corel Draw output directly

































































4. Features:



1). The structure is strong enough to ensure the moving stable.

2). High quality laser tube provides the strong beam and long service life.

3). Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.

4). The imported linear guide way ensures the high precision and the long service.

5). The stepper motor guarantees cutting and engraving smooth.

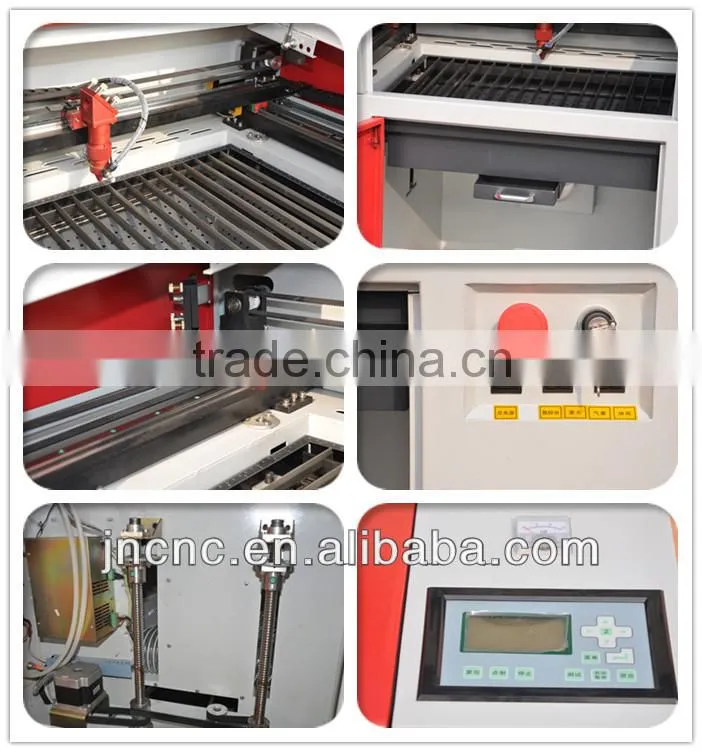

5.Main Parts Picture:

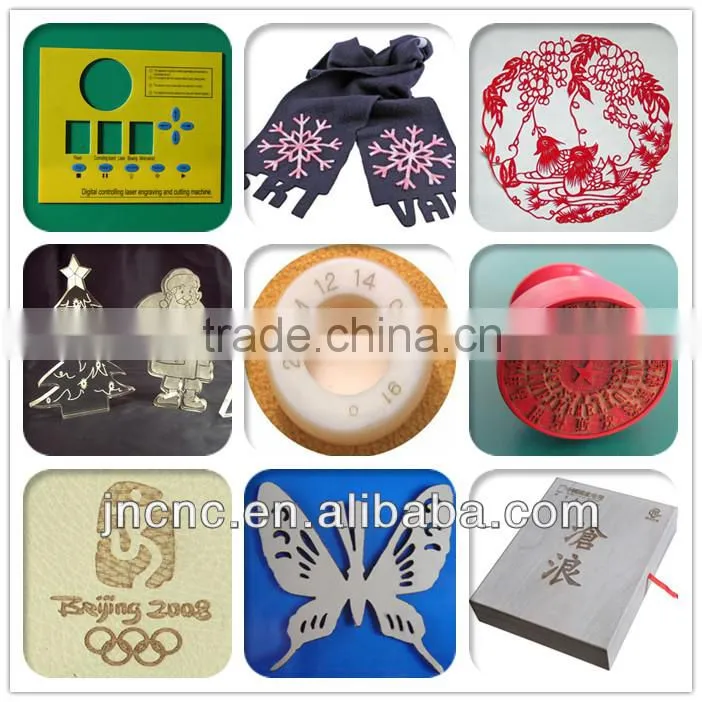

6. Samples Pictures:





7. Packing Details:

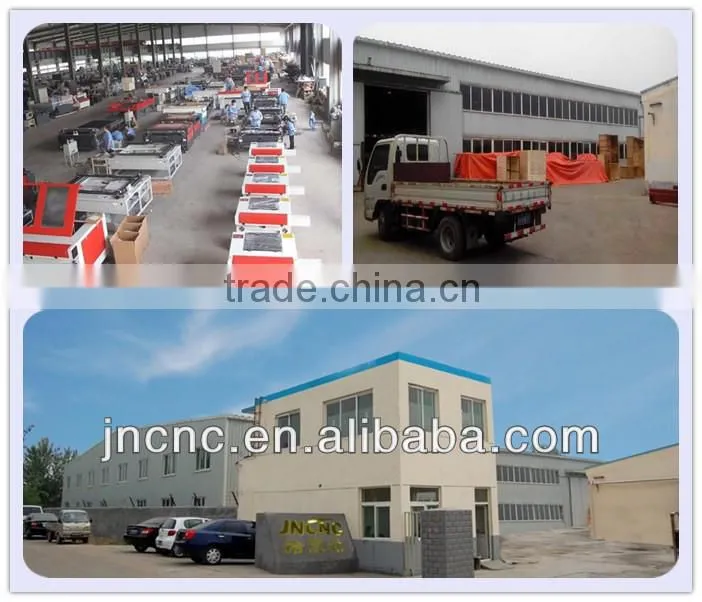

8. Factory Show:





9. Warranty and After Sales Service:



1) One year free warranty, main parts are free of charge when problems happened during this period.



2) Life time free maintenance service.



3) Free training course at our factory with professional engineers.
