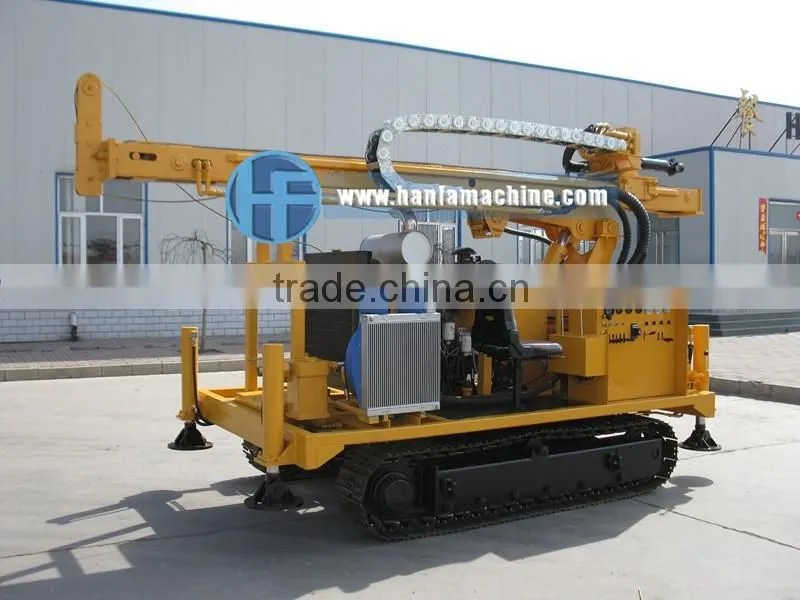

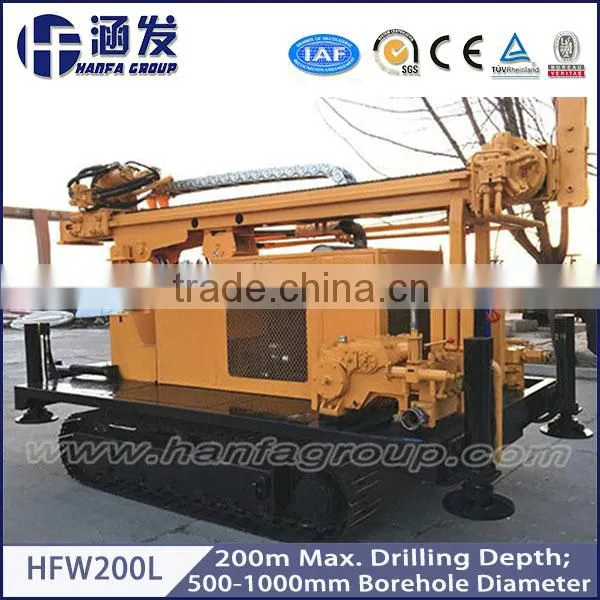

200m Depth !!! HFW200L Track Type Water Well Drilling Rig,DTH Drilling Rig
Product Description:
1.Guide lane matches with roller skate, HFW200L water well drilling machine can reduce the sliding
resistance,and also reduce friction and improve the lifetime of extension guide.

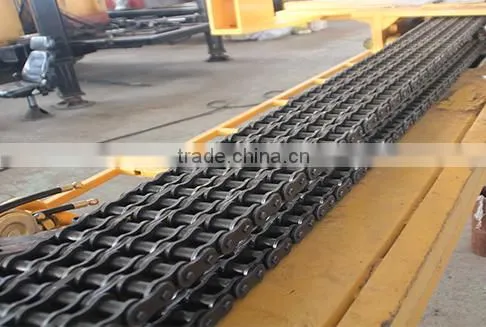

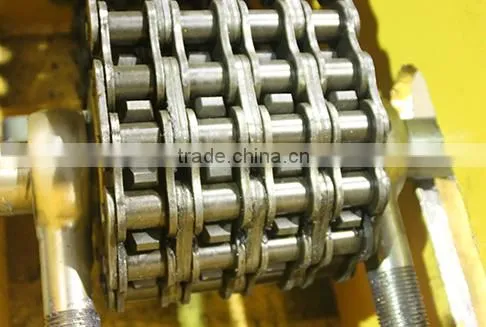

2.Hydraulic power head and a hydraulic rotary disc motor chain, drilling and hydraulic winch binding, new
drilling method, reasonable power matching.
3.Set covering layer, stratum two kinds of method in one construction drill
4.Travelling to tracked self-propelled structure, optional6x4heavy truck to car type well drilling.
5.HFW200L water well drilling machine is very convenient with air compressor and DTH hammer, using
compressed air DTH hammer drilling technology, complete the bedrock drilling operation.

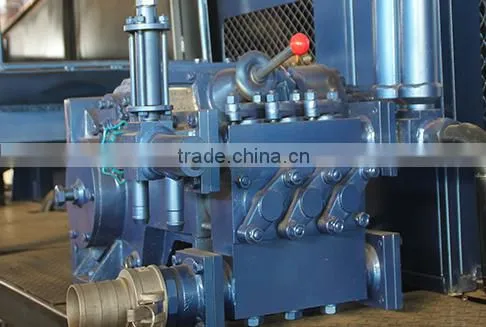

6.HFW200L water well drilling machine is equipped with patent technology hydraulic rotary disk, mud pump,
hydraulic winch, the mud can be completed normal circulation drilling technology.
7.Drill carriage slipway and roller skate matching,Namely, reduce sliding resistance, and reduce the slide
wear. To extend the service life
8.Twospeed hydraulic regulation is used in rotary,trust,lifting,shall make drilling specification more match with well working situation.
9.Hydraulic system equipped with separate aircooled hydraulic oil cooler,and can optional install water cooler
to ensure hydraulic system keep continuous and efficient operation under the hightemperature weather
conditions of different regions.
10.Four strenthened hydraulic jacks can become self loading system, to ensure rotation easy and save lifting
costs.
Specification:
HFW200L water well drilling machine specification:
Kw |
Engine power |
110 |
M |
Max.drilling depth |
200 |
Mm |
Borehole diameter |
Rock layer100-200,soil layer500-1000 |
Mpa |
Working air pressure |
1.05-2.46 |
m3/min |
The total gas consumption |
16-30 |
m/h |
Drilling efficiency |
10-25 |
m |
Length of drill rod |
3 |
mm |
Drill pipe diameter |
89/108 |
mm |
The driven rod |
108*108 |
KN |
Axial pressure |
120 |
KN |
Lifting force |
120 |
KN |
Hydraulic hoist |
100 |
m/min |
Slow down,slow speed |
9.2 |
m/min |
Rise fast,fast forward speed |
50 |
Nm |
Power head of rotary torque |
5400 |
Nm |
Lower rotary hydraulic turntable |
35000 |
r.p.m |
Rotary speed |
0-50,0-100 |
L/min |
Hydraulic mud pump |
250 |
Km/h |
Walking speed |
3 |
° |
Climbing ability |
20 |
KN |
Host weight |
7200 |
mm |
Mainframe exterior size |
5700*2100*3200 |
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products.
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
