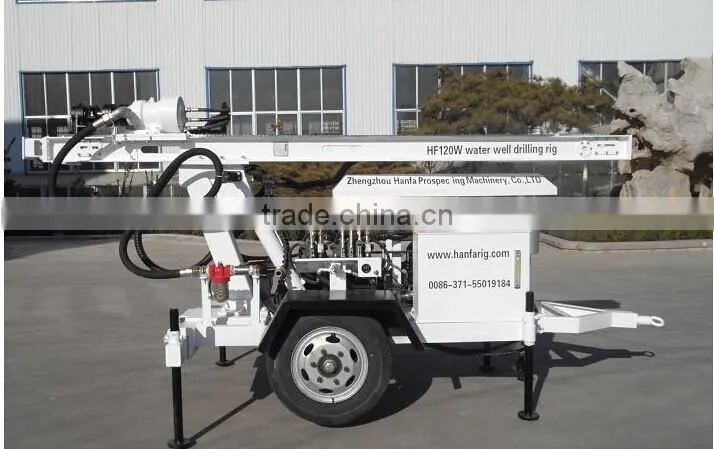

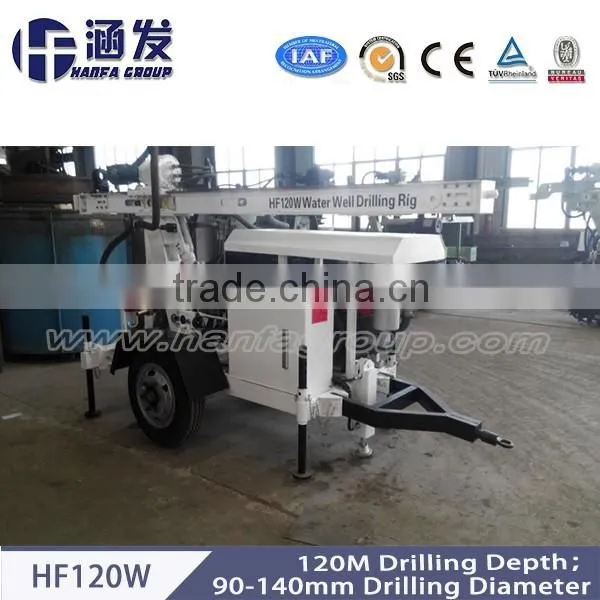

HF120W Handheld Drilling Machine for sale
Introduction:
1. HF120W’s compact structure with small truck helps its movement and transportation become very easy.
2. Hydraulic system, convenient for operation.
3. HF120W adopt the diesel engine for power, which can be used in any area, especially the place where the electricity is not available.
Technical parameters
Description |
HF120W |
Geology drilled |
All kinds |
Drill depth |
0-120 m |
Drilling Diameter |
90 -140mm |
Drill system and operation |
Hydraulic |
DRILL PIPE |
|
Drill pipe length |
2.00 meter |
Drill pipe diameter |
60/76 mm |
MUD PUMP |
|
Flow capacity |
200 liter/min |
Max. working pressure |
1.8MPA |
HYDRAULIC SYSTEM |
|
Hydraulic tank capacity |
140 liter |
DIMENSIONS |
|
Overall length |
3200 mm |
Overall width |
1400 mm |
Overall height |
1500 mm |
Diesel engine |
|
Power |
16.2KW |
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
