260m Depth HF510T Portable Trailer Mounted Water Well Drilling Rig for Sale

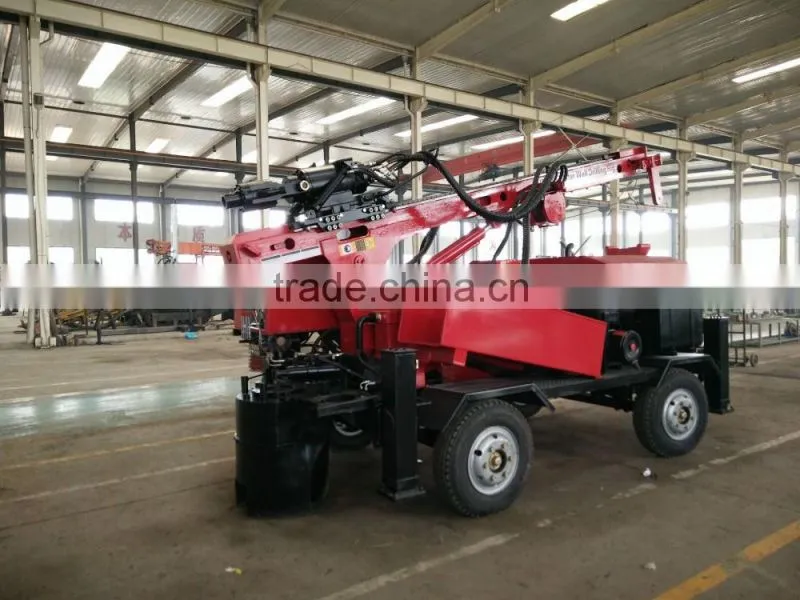

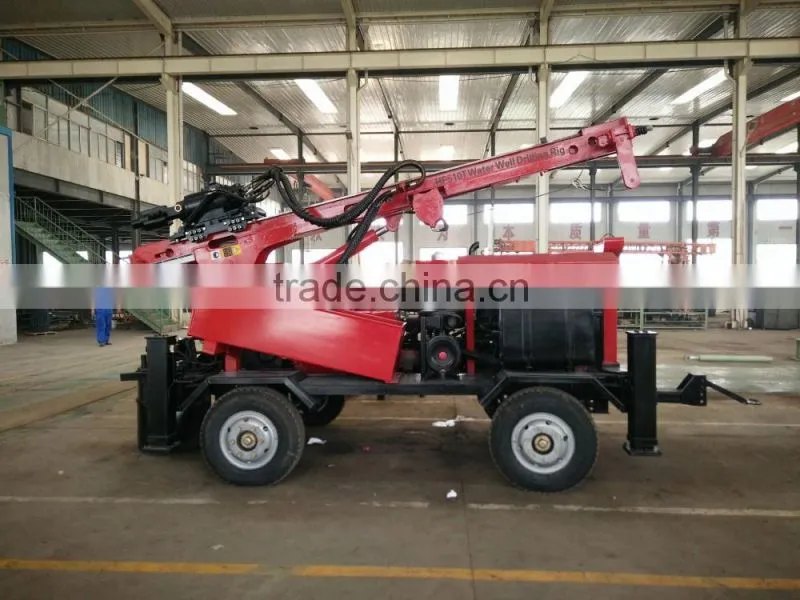

260m Depth HF510T Portable Trailer Mounted Water Well Drilling Rig for Sale photo-1
US$ 40000.00 - 40000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name Hanfa
Model Number HF510T
Usage Water Well
Voltage 220V/380V
Power(W) 56/87(Optional)
Dimension(L*W*H) 5425*2250*2470 mm
Weight 6000kg
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

HF510T Portable Trailer Mounted Water Well Drilling Rig

1.HF510T trailer mounted water well drilling rig for groundwater can use air, foam or mud rotary for percussive drilling according to different textures.



2.It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes.



3.In particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement,loose gravel drilling rock formation connected with a variety of engineering.

 260m depth HF510T Portable Trailer Mounted Water Well Drilling Rig for sale260m depth HF510T Portable Trailer Mounted Water Well Drilling Rig for sale



Bore diameter(mm)

115-300



Bore depth(m)

260

Walk speed(km/h)

45

 For rock(F)

6-20

 Air pressure(Mpa)

1.05-3.0



 Air consumption(m³/min)

16-30



Once promotion(mm)

2000

Skid max angle(°)

90

Maximum height from the ground(mm)

320



Rotation Speed(r/min)

0-100



Rotation torque(NM)

3900

Lifting power(T)

6.5T

Dimension(L*W*H)(mm)

5425*2250*2470

Host power(Kw)

56/87(Optional)

weight(Kg)

6000

Mud pump

BW450/5

Pump speed(L/min)

172--450

Pressure (Mpa)

2.0--5.0



Packaging & Shipping

260m depth HF510T Portable Trailer Mounted Water Well Drilling Rig for sale

After-Sales Service

1.New machine provides technical train.

2.Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.

3.When the machine should be maintained,you will receive the reminding from us.

4.According to different geological conditions,we will recommend different construction plans for you.

5.Remind you which are wearing parts,so you can prepare enough.

6.24 hours respond to your quality problem.



7. Other customer's reasonable request

260m depth HF510T Portable Trailer Mounted Water Well Drilling Rig for sale

Our Services

260m depth HF510T Portable Trailer Mounted Water Well Drilling Rig for sale

260m depth HF510T Portable Trailer Mounted Water Well Drilling Rig for sale
