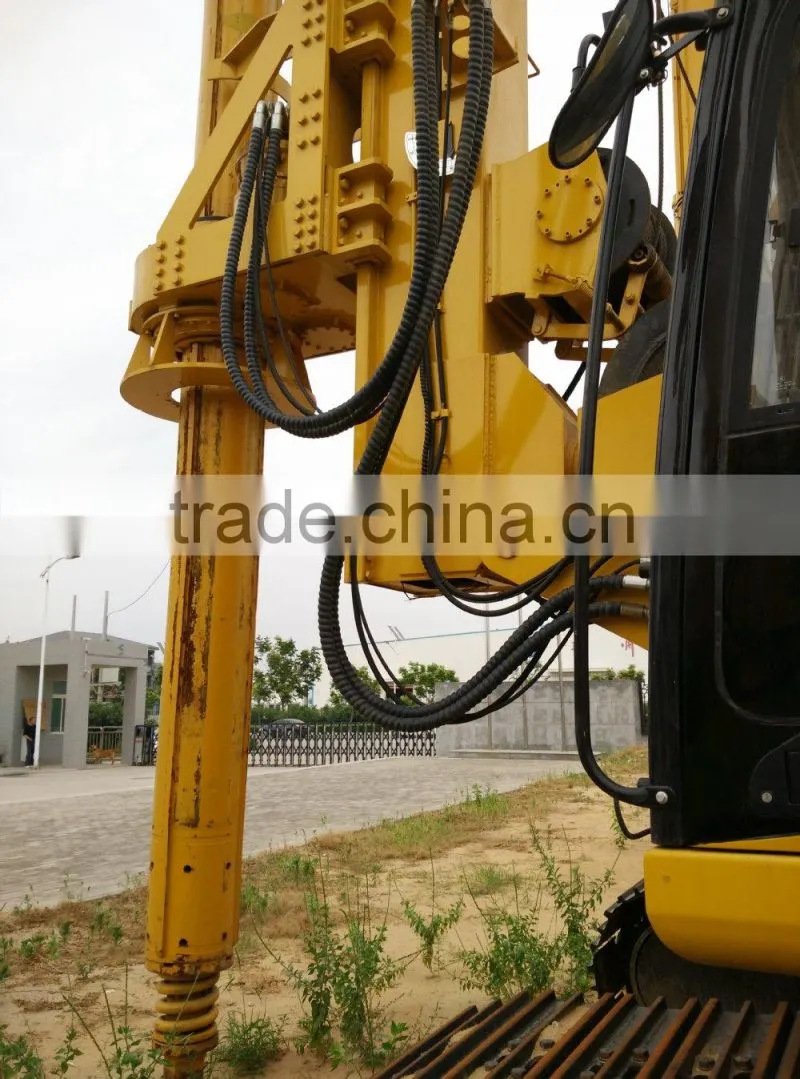

HF128 full hydraulic rotary drilling machine , solar pile driver

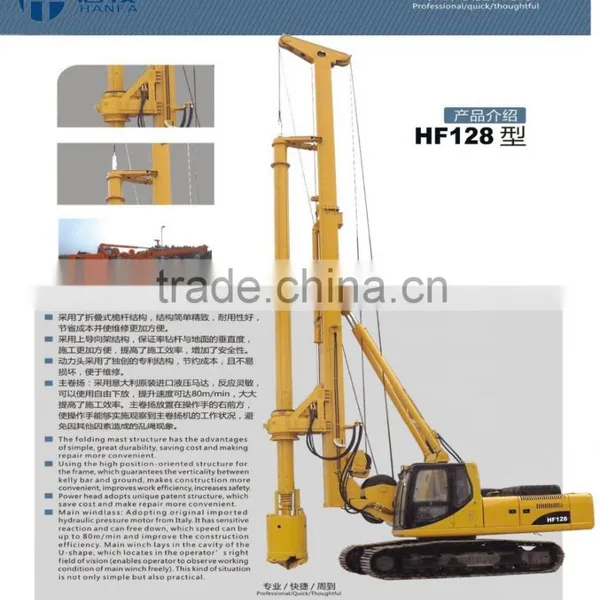

·The folding mast structure has the advantages of simple, great durability, saving cost and making repair more convenient.
`Using the high position-oriented structure for the frame, which guarantees the verticality between kelly bar and ground, kes constucture more convenient, improves work efficiency, increses safty.
`Power head adopts unique patent structure, which save cost and make repair more convenient.
`Main windlass: Adoptin original imported hydraulic pressure motor from Italy. It has sensitivereaction and can free down, which speed can be up to 80m/min and improve the construction efficiency. Main winch lays in the cavit of te U-shape, whchlocates in the operator's right field of vision (enables operator to obseve working condition of main winch freely). This kind of situation is not only simple but also practical.
| HF128A | |||
| Drilling diameter | mm | 600-1500 | |
| Drilling depth | m | 42 | |
| Overall measurement | Working dimentions | mm | 7630X3110X15592 |
| Transport dimentions | mm | 15185X3110X3173 | |
| Rotary drive torque | KNm | 50/102 | |
| Rotation speed | rpm | 38/20 | |
| Crowed clinder | Max. push | KN | 150 |
| Max. pull | KN | 100 | |
| Max. stroke | mm | 3000 | |
| Main winch | Max. pull | KN | 120 |
| Max. speed | m/min | 70 | |
| Auxilary winch | Max. pull | KN | 60kn |
| Max. speed | m/min | 50 | |
| Engine | Rated speed | KW | 113 |
| Type | B5.9-C Cummins U.S.A | ||
| Electronic management system | Long distance monitor system | Available | |
| Drilling record system | Available | ||
| On car printer | Available | ||
| Hydraulic system pressure | bar | 300bar | |
| Chassis | Chassis modality | Available | |
| Max.travel speed | km/h | 2.0km/h | |
| Min. ground clearance | mm | 500 | |
| Track width | mm | 800 | |
| Mast inclination | Free adjustment forwares/backwares | 0-93° | |
| Free adjustment left/right wards | ±3° | ||
| Machine weighth | kg | 36500 | |
