HF-YD7 Full Hydraulic Hammer , Concrete Pile Driver,hammer Piling Rig
US$ 50,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
133KW/2100
Piling Speed(m/min):
3m/min
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer of HFD530 , Rotary Pile Drilling Rig for Sale , Guardrail Piling DriverUS$ 30,000 - 50,000MOQ: 1 Set -
30m Drilling Depth , HFD 530 Borehole Piling Rig,piling DriverUS$ 30,000 - 50,000MOQ: 1 Set
-
HF-YD7 Full Hydraulic Hammer Pile Rig,piling EquipmentUS$ 50,000 - 80,000MOQ: 1 Set
-
Exported to Colombia 80 KN.M Torque Bore Piling Machine HF856A Piling EquipmentUS$ 50,000 - 80,000MOQ: 1 Set
-
HF856A Crawler Type Economic Rotary Drilling RigUS$ 273,000 - 277,000MOQ: 1 Set
Condition
New
Efficiency
133KW/2100
Piling Speed(m/min)
3m/min
Place of Origin
Henan, China
Brand Name
HF concrete pile
Model Number
HF-YD7 concrete pile
Weight
47000kg
Dimension(L*W*H)
8042X3600X21250(mm)
Certification
ISO& CE
After-sales Service Provided
Overseas service center available

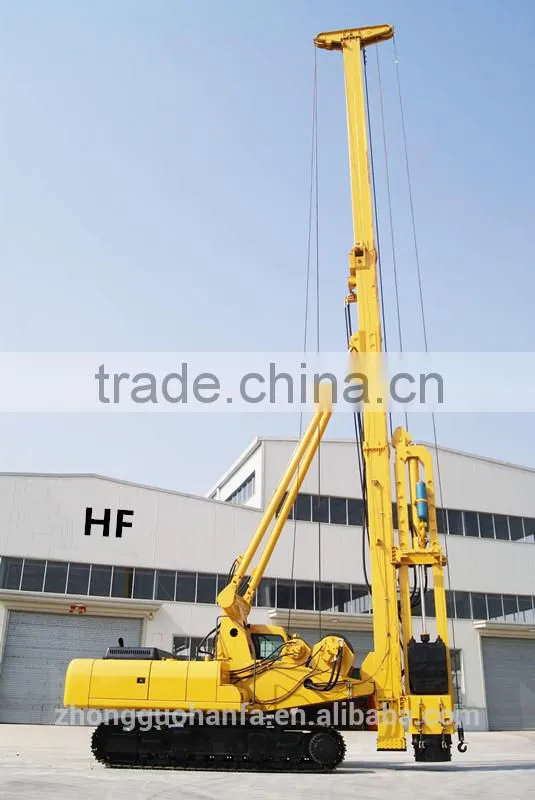

HF-YD7 full hydraulic hammer , concrete pile
HF-YD types of full hydraulic functonal hammer is our company launch a type of piling machinery in 2010. According to hammer weight, we have HF-YD5, HF-YD6 and HF-YD7 types of piling driver il cylinder can automatically adjust the oil cylinder trip and realize thump and tip-tap. When dismantle hydraulic piling the hammer and replace hydraulic power head, pressurization cylinder, scaleable Kelly bar and broach, it will get full hydraulic rotating drill of 65m-deep drilling.
Diameter | 500mm | |
Max drilling depth | 4 joints | —————— |
5 joints | —————— | |
Overall measurement | Working dimension | 8042X3600X21250(mm) |
Transport dimension | 16460X2800X3300 (mm) | |
Rotary drive torque | —————— | |
Rotary drive speed | —————— | |
Crowd cylinder | Max push | —————— |
Max pull | —————— | |
Max stroke | —————— | |
Main winch | Max line pull | 140kN |
Max line speed | 70m/min | |
Auxiliary winch | Max line pull | 60kN |
Max line speed | 60m/min | |
Engine | Rated power | 133kW/2100 |
Type | Cummins 6BTA5.9-C178 | |
Electronic management system | Long distance monitor system | Available |
Drilling record system | Available | |
On car printer | Available | |
Hydraulic system pressure | 30mpa | |
Chassis | Chassis modality | telescopic |
Max travel speed | 2.5km/h | |
Min ground clearance | 330mm | |
Track width | 800mm | |
Mast inclination | Forward / backward | 90° |
Left / right | ±3° | |
Hammer weight | 7000kg | |
Hammer stroke | 500-1500mm | |
Impact frequency | 30time/min | |
Max impact force | 105kN·m | |
Whole machine weight | 47000kg | |
