30m Drilling Depth , HFD 530 Borehole Piling Rig,piling Driver

30m Drilling Depth , HFD 530 Borehole Piling Rig,piling Driver photo-1
US$ 30,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Any
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name HF bore pile machine
Model Number HF 525A bore pile machine
Usage Water Well
Voltage 380V
Power(W) 108 KW
Dimension(L*W*H) 13200*3200*7456mm
Weight 36000KGS
Certification ISO 9001:2000
Warranty 33 Years
After-sales Service Provided Engineers available to service machinery overseas

25m drilling depth , HFD 530 bore pile machine







1.It adopts telescopic mast which has simple structure, high durability, low cost and makes the repair more convenient.
2.The power head adopts high position-oriented frame structure guarantees the verticality of kelly bar, which makes construction more convenient, and improves the working efficiency and safety.

3. The power head adopts unique patented structure, which features low cost, not easily damaged and convenient for repair.
4. Main winch: it adopts originally imported Italy hydraulic motor. It is more flexible and can be lowered freely, and the lifting speed is up to 80m/min, which greatly improves the work efficiency. The main winch is allocated at the front right of the operator, so the operator can observe its work condition and avoid twisted ropes.

Specfication:

Max. drilling diameter 1200 mm
Max. drilling depth 30 m
Engine powerPower86KW
 typeJapanese-Yanma(86kw)/2200RPM
Rotary DriveTorque50 KN
 Speed1-20 rpm
 MotorItaly Sai
Main WinchMax.pull80KN
 MotorItaly Sai
Auxiliary winch Shanghai
Crowd cylinderMax. push100KN
Overall measurementWorking dimensions10913X2600X5810 mm
 Transport dimensions9908X2600X3207 mm
Traveling gear Toshiba/Chinese-Doushan
Hydraulic pump Toshiba/Chinese-Doushan
Hydraulic valve Toshiba/Chinese-Doushan
Machine weight 25000 KGS

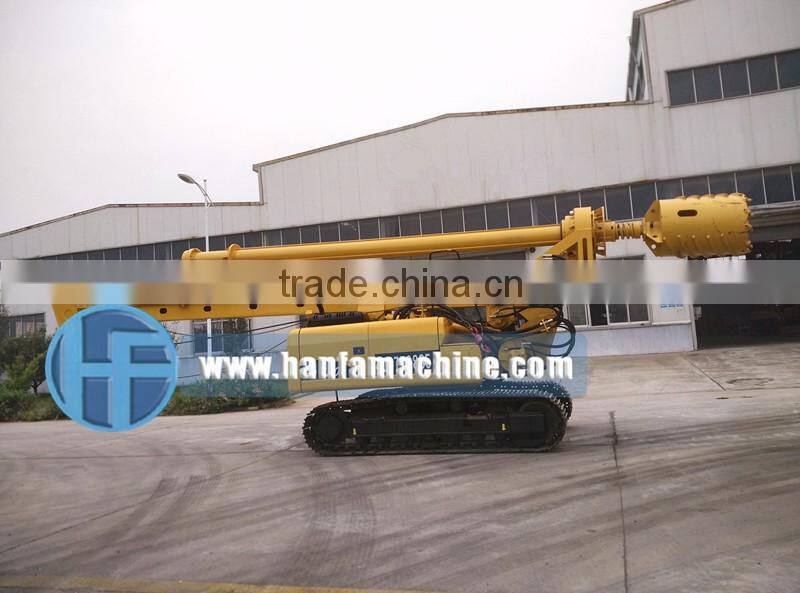

 30m drilling depth , HFD 530 borehole piling rig,piling driver

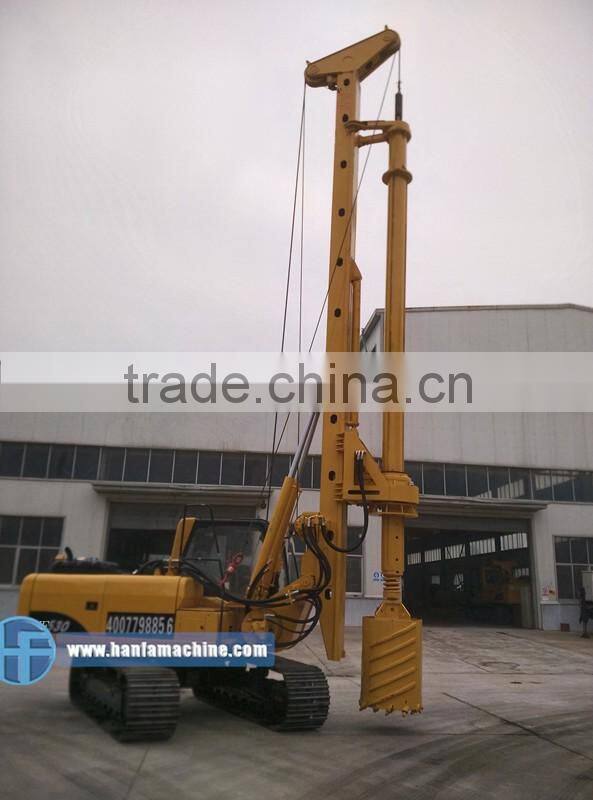

30m drilling depth , HFD 530 borehole piling rig,piling driver

30m drilling depth , HFD 530 borehole piling rig,piling driver30m drilling depth , HFD 530 borehole piling rig,piling driver

30m drilling depth , HFD 530 borehole piling rig,piling driver
