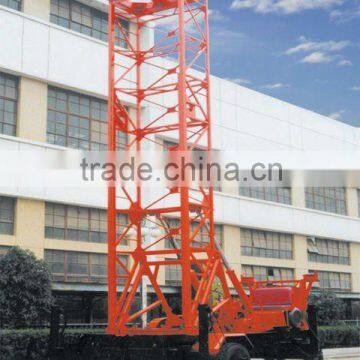

Best Seller in Africa,South America and the Middle East,KP2000A Piling Drilling Rig
uses rotary to drive bar for driling, with the electric machine for power, in the mode of mechanical drive. Partial action appiles hydraulic drive, with large torque, high efficiency and convenience for use.
This drilling machine is applicable to pore forming construction of various foundations, drilling projects such as heavy caliber shallow water well, small coal mine silo and national defense project.
This drilling machine is driven by hydraulic pressure, being double layer chassis type. The upper chassis can move back and forth on the lower one; the drilling tools in the sphere that has the diameter with 2m can be put into the well bore without the movement of the lower chassis. Therefore, the drilling machine is convenient and reliable, which can guarantee the construction quality. According to the situation of construction site and custome of construction unit, the displacement of lower chassis can be selectes among the three forms (i.e. prise, steel, wheel and rolling bar) at will to meet the need of construction.
KP2000A drilling machine is equipped with the company’s patent product ZK150type circulation system for both positive sha negative use, which can improve the drilling machine’s work efficiency by 3~5 times.
KP2000A Type engineering drilling machine |
ZK150 type circulating system for both positive and negative use |
||||
Dynamic power(kW) |
45 |
|
3PNL |
6PS |
|
Drilling depth(m) |
80 |
||||
Power(kw) |
22 |
30 |
|||
Hole Diameter rock formation(m) |
2 |
||||
Delivery lift(m) |
22 |
12 |
|||
Rotary speed(r/m) |
10 30 43 63 |
||||
Suction lift(m) |
|
7.5 |
|||
Rotary torque(kN.m) |
43.8 14.6 10.2 7.0 |
||||
Flow capacity(m3/h) |
108 |
180 |
|||
Mass(t) |
11 |
||||
