Big Sales in 2012! HF-7 Deep Water Well Drilling Rig, HF-7 Deep Water Well Drilling Rig

Big Sales in 2012! HF-7 Deep Water Well Drilling Rig, HF-7 Deep Water Well Drilling Rig thumbnail-1
Big Sales in 2012! HF-7 Deep Water Well Drilling Rig, HF-7 Deep Water Well Drilling Rig photo-1
US$ 57,000 - 61,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name HF Deep Water Well Drilling Rig
Model Number HF-7 Deep Water Well drilling rig
Usage Other, Coal, Water Well/Coal Mining/Ore sample
Voltage 220V, 50HZ/380V, 50HZ
Power(W) 85kw/56kw
Dimension(L*W*H) 3260 x 1280 x 2290mm
Weight 3350kg
Certification ISO/BV/CE, CE, ISO 9001:2008
Warranty 12Months

Specifications

Deep Water Well Drilling Rig
* New type drilling machine
* Drilling hole up to 2200m
* Hydraulic or electric power

Deep Water Well Drilling Rig
* New type drilling machine
* Drilling hole up to 2200m
* Hydraulic or electric power



Introduction------  Deep Water Well Drilling Rig :

· Core drilling machine, designed for hard conditions and Suitable for different hardness of geological features;

· They are used for core sample, water well, geothermal well, SPT



Advantages------  Deep Water Well Drilling Rig :

1 Suitable for different hardness of geological features;

2 Strong structure and scientific design enable them to drill water well deep and with large diameter;

3 Durable parts, long service life;

4 Easy operation and maintenance save extra costs;

5 Supply various size accessories, like rod, bit, core barrel, rope, and so on.

Diamond Core Drilling Rig
* New type drilling machine
* Drilling hole up to 2200m
* Hydraulic or electric power

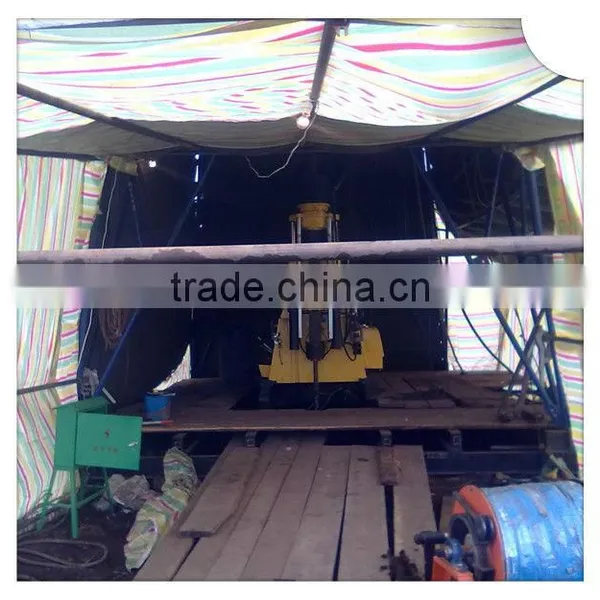

Project case------ Deep Water Well Drilling Rig

 Big sales in 2012! HF-7 Deep Water Well Drilling Rig, HF-7 Deep Water Well Drilling RigBig sales in 2012! HF-7 Deep Water Well Drilling Rig, HF-7 Deep Water Well Drilling RigBig sales in 2012! HF-7 Deep Water Well Drilling Rig, HF-7 Deep Water Well Drilling Rig



  Big sales in 2012! HF-7 Deep Water Well Drilling Rig, HF-7 Deep Water Well Drilling Rig

Big sales in 2012! HF-7 Deep Water Well Drilling Rig, HF-7 Deep Water Well Drilling Rig

Main parameters------ Deep Water Well Drilling Rig :



Unity machine parameter
Drilling depth 600-2200m
Drill Rod made in China Φ50 x 4.75 2200m
Φ50 x 5 2000m
Φ60 x 6 1450m
Φ71 x 5 1659m
Φ73 x 7 1000m
Φ89 x 5 1300m
Φ89 x 10 600m
Internally Thickeded Drill Rod BW 2200m
NW 1700m
HW 1150m
Wireline Coring Drill Rod BQ 2200m
NQ 1700m
HQ 1150m
PQ 800m
BCQ 2500m
NCQ 2000m
HCQ 1550m
Power Electric motor Y250M-4   56KW   1500r/min
Diesel Engine 6BT5.9-85 85KW   2000r/min
Drilling angle 90° ~75°
Drill machine moving stroke 500mm
Dimension 3260 x 1280 x 2290mm
Weight ( power not included ) 3350kg
Spindle
Spindle Bore Diameter 118mm
Spindle stroke 800mm
Spindle max. torque 7500N.m
Spindle max. lifting capacity 180kn
Spindle max. pressure force 120kn
Spindle Speed           Electric motor 1500r/min Forward Rotation 41; 70; 122; 155; 178; 265; 268; 469; 681; 1016r/min
Backward Rotation 41; 156r/min
Spindle Speed           Diesel Engine 200r/min Forward Rotation 54; 94; 163; 207; 237; 353; 358; 625; 908; 1355r/min
Backward Rotation 54; 207r/min
Hoist
Max.single line hoisting capacity 60KN
Wirerope caliber 20mm
Roller capacity of wireline length 102m
Single line lifting speed Power rotation Speed 1500r/min 0.438; 0.758; 1.322; 1.921; 2.865m/s
Power rotation Speed 2000r/min 0.584; 1.011; 1.762; 2.560; 3.820m/s
Transssion gearbox
Auto gearbox
Hydraulic oil box
Duplex gear oil pump CBY2032/K1020
Displacement 32/16 ml/r
Work pressure 20 Mpa
Max. pressure 25 Mpa
Water brake
Work rotation speed 700-1800r/min
Single line balance speed 3-8m/s
Single line balance load 45KN
