Specifications
Water Well Drilling Rig1. trailer type, easy to move
2.rotary type, durable to use
3.practicability

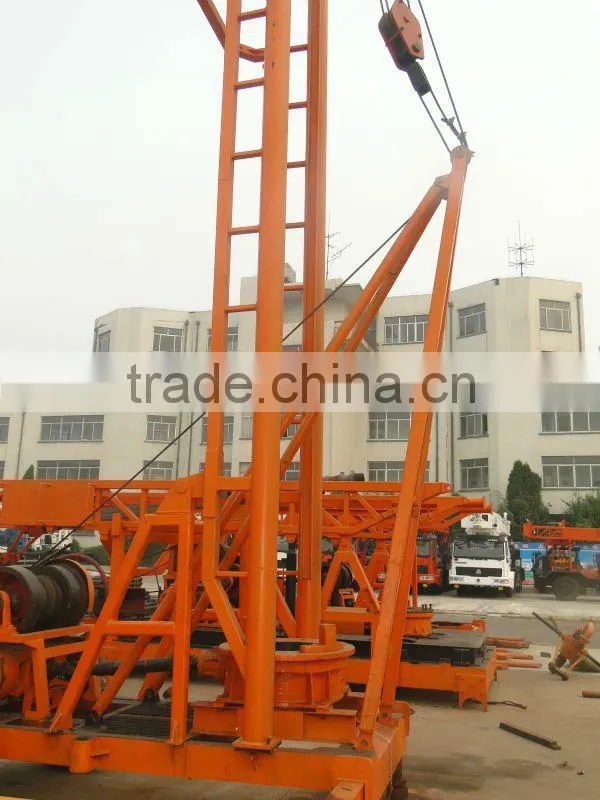

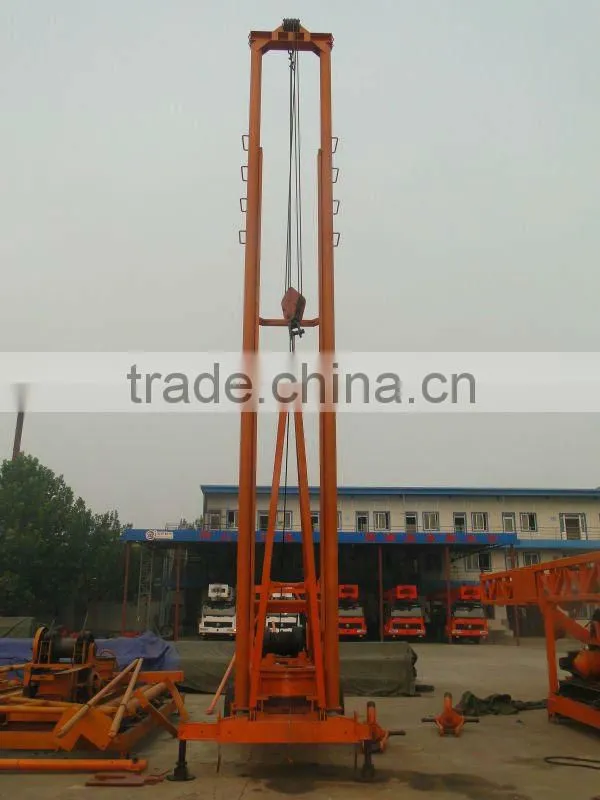

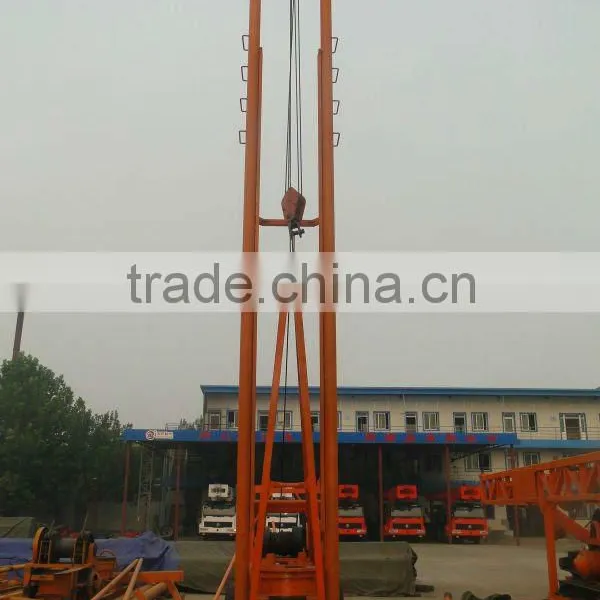

Water Well Drilling Rig
HF300 engineering and water well driller adopts 89mm diamater size pipes, small gantry trailer, so it is convenient for far distance construction. HF300 engineering and water-well driller is suitable for construction of high-rise building, bridges, ports, dam foundations and deep well works.
Technical parameters | |||
Drilling depth(m) |
300 |
||
Drilling diameter (mm) |
500 |
||
Inner diameter of turntable(mm) |
500 |
||
Electric engine |
power(kw) |
22 |
|
Speed (r/min) |
1450 |
||
Speed of truntable(forward and reverse)(r/min) |
66.7;100 |
||
Rated output torque of truntable(KN.m) |
10 |
||
Lifting capacity of windlass(single rope)(t) |
3 |
||
Bearing capacity of hydrant(KN) |
150 |
||
Height of mast (m) |
9 |
||
Kelly (mm) |
108×108×7000 |
||
Assistant pipe (mm) |
89×10×6000 |
||
Working condition(mm) |
6000×2400×10000 |
||
Transport condition(mm) |
9550×2400×2775 |
||
Weight of whole machine(kg) |
3210 |
||
