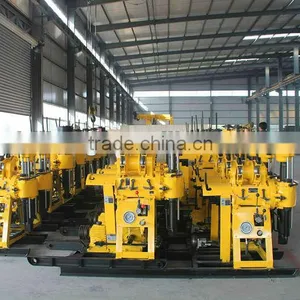

HF150 Borehole Drilling Machine With ISO , Drilling a Borehole thumbnail-1
HF150 Borehole Drilling Machine With ISO , Drilling a Borehole photo-1
US$ 8,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name Hanfa drilling a borehole
Model Number HF150 drilling a borehole
Usage Other, core drilling
Dimension(L*W*H) 2.75*0.95*1.6 m
Weight 910kg
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Overseas third-party support available

HF150 borehole drilling machine with ISO , drilling a borehole







I.Introduction of borehole drilling machine HF150


>it can drill Max150m depth,Max 300mm drill diameter



2>it equip different drill bits to drill different stratum,such as sand,soil,clay,hard rock etc,high efficiency

3>Hydraulic system control and trailer type ,easy to operate and move,saving labor force

4>it can be used for drilling water well,geothermy well,soil sampling or mining sampling,geological prospecting etc,wide application

5>national inspection-free product,quality guarantee,it can be used at least 10 yrs without full repair;as well as we offer you one-year quality warranty of main machine



II. Technical parameter of portable core drilling rig HF150

Unity machine parameter

Drilling Depth

30--150m

Drilling Diameter

300-75mm

Drill rod caliber

50mm

Drilling angle

90°~75°

Drill weight (No include power)

910kg

Unity machine dimensions

2.75×0.95×1.6

Spindle

spindle speed

64,128,287,557r/min

Spindle stroke

 450mm

Hoist

Max.single line hoisting capacity

1600kg

Single line lifting speed

17,35,75,151r/min

Tightrope caliber

12.5mm

Tightrope cubic measure

35m

Hug floodgate caliber

245mm

Hug folldgate belt width

70mm

Distance between drill and hole

400mm

Mud pump

Type

Horizontal single urn twin-action

Displacement

170L/min

Diesle engine

s1105 18HP

Electric motor

Y160M—4 15kw 1440r/min

Maximum pressure

1.5Mpa

Work pressure

0.7Mpa

Water inlet caliber

40mm

Water to exit caliber

30mm

Triangle conveyer belt

B1728mm

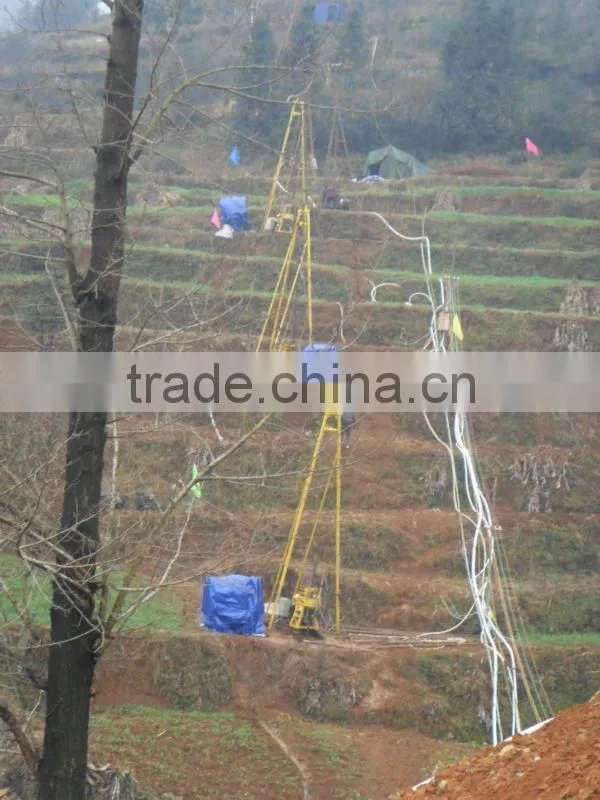

 HF150 borehole drilling machine with ISO , drilling a borehole

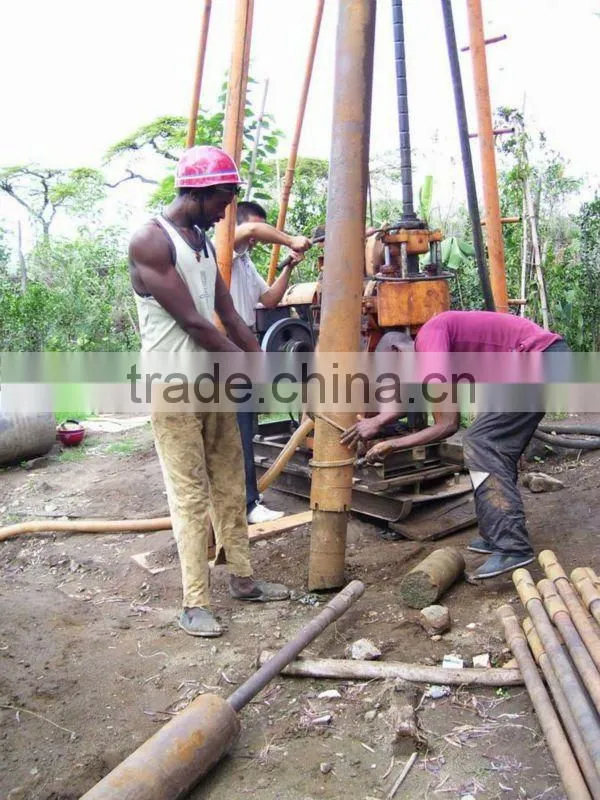

HF150 borehole drilling machine with ISO , drilling a borehole
