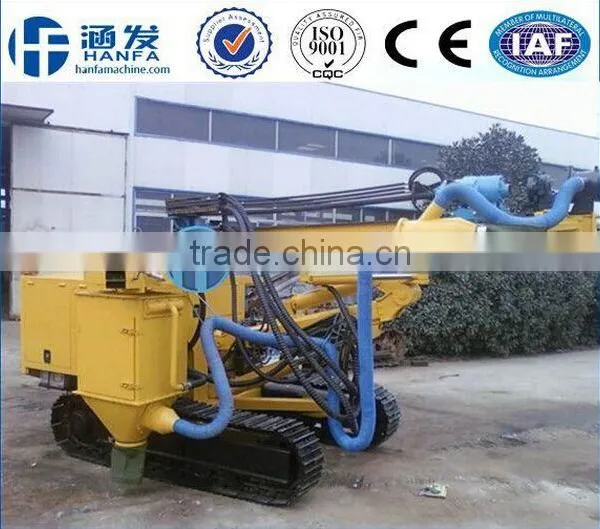

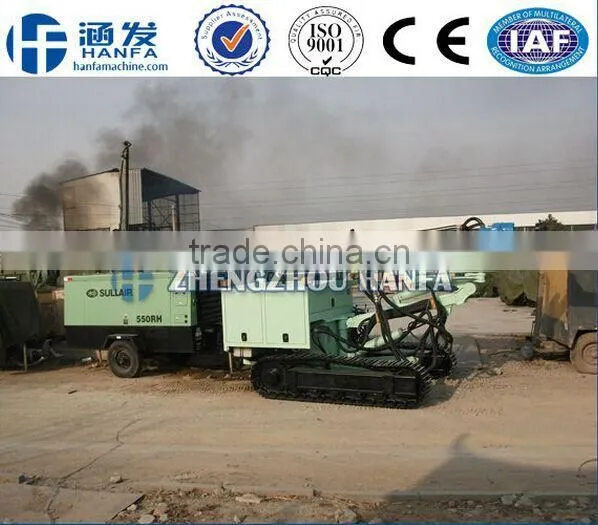

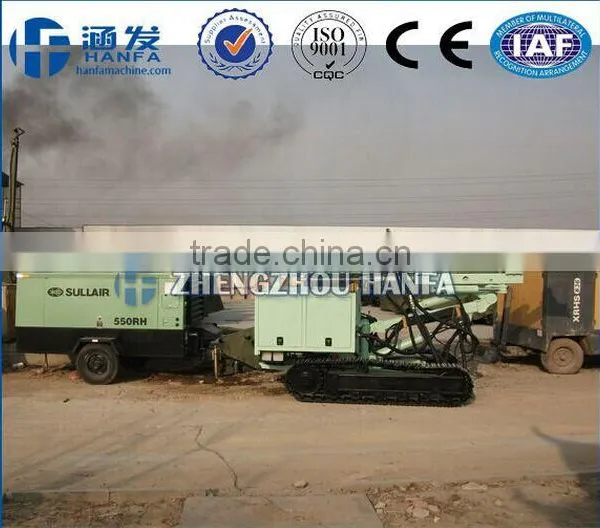

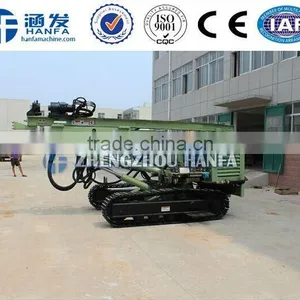

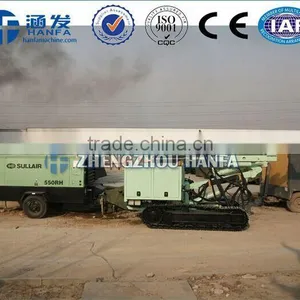

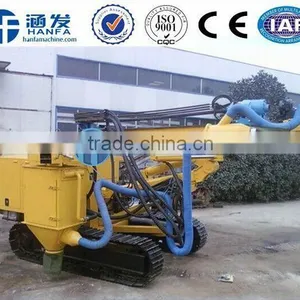

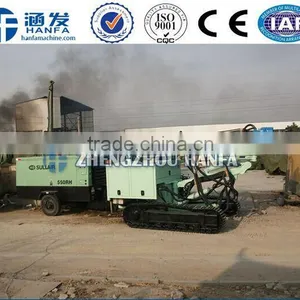

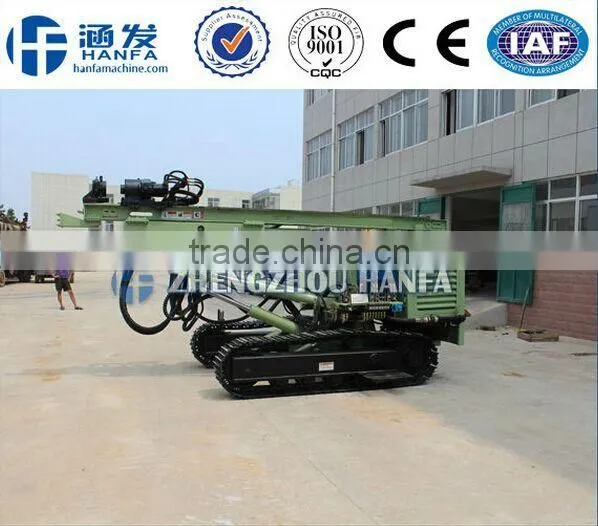

HF150 Y Hydraulic Blast Hole Crawler Mounted Drilling Machine
1. Application of HF series DTH drilling rig
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
2. Introduction
HF150Y High Air Pressure DTH Drill Crawler open with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs.
Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features.
Whole diameter 105-165mm, with a piercing, high efficiency, Maintenance is simple, high reliability, is a mining, highway, water conservancy, power station construction and other construction ideal for drilling rig operations.
3. Main technical parameters
(Mpa)Wind pressure |
1.2—2.46 |
(m³/min)Air consumption |
11--25 |
(mm)Drilling diamete |
105---165(max:203) |
(m)Drilling depth |
level 50m,down 80m |
(mm)Once promotion distance |
3000 |
(mm)Drill diameter |
76 |
(mm)Skid compensation |
1200 |
(N)Maximum lift force |
26000 |
(°)Guide shell lutting |
100up and down total 100 |
(°)Guide shell swing angle |
100Left and right total 100 |
(°)Boom lift angle |
70up and down total 70 |
(°)Boom swing angle |
45Left 45, right 45 |
(°)Grade ability |
30 |
(mm)Chassis ground clearance |
300 |
(Km/h)Travelling speed |
0-2.5 |
(r/min)Back to the transit speed |
0--90 |
(N.m)Rotary torque |
3000 |
Host Power |
56 |
For rock |
6---20 |
Total Weight |
6300 |
Dimension (L * W * H) |
5800*2070*2400 |
|
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |
4.Designs of HF series DTH drilling rig
Innovation is the key to our success: During these years, we continually make new designs on our products to make them easier for clients to use.
Hydraulic chuck: It is designed to save the trouble from ball chuck.
Slide: It is designed to move the machine backward or forward when you need to lift/change the drill rod or adjust the drilling position.
Trailer: 2-wheel, 4-wheel, 6-wheel. It is designed to move the drilling rig with tractors or such pulling devices.
Truck mounted: Easy to move and operate, they are also with hydraulic systems.
Crawler: Self-propelled, able to clime, suitable for complex terrains.
Hydraulic system: Tower and support. It is designed to decrease labor cost; two men are more than enough
to operate the drilling rig with hydraulic system.
Digital control: Multiple data display, easy controlling and monitoring, very convenient and efficient for
geological study.
