Welcomed in South America ! High Efficiency HF120W Trailer Hydraulic Portable Water Well Drilling Rig
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai port
Product Details
Condition: | New | CNC or Not: | Normal | Drilling Speed: | 1-30m/h |
Place of Origin: | Henan, China | Brand Name: | HF | Model Number: | HF120W earth hole drilling machine |
Voltage: | 220V/380V | Power(W): | 16.2KW | Dimension(L*W*H): | 3200X1400X1500 |
Weight: | 2t | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Portable Water Well Drilling Rig
HF120W Portable Water Well Drilling Rig

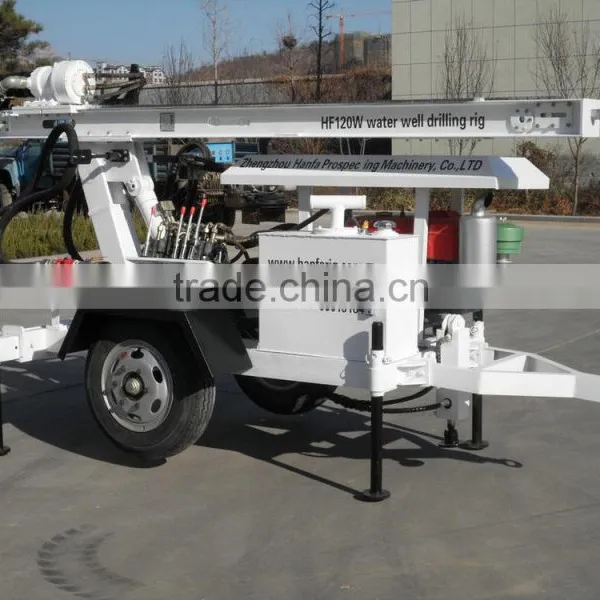

The HF120W is a Trailer mounted water well drilling rig, compact fully hydraulic, for down-the-hole hammer and rotary drilling up to 120 meters.
Description | HF120W |
Geology drilled | All kinds |
Drill depth | 0-120 m |
Drilling Diameter | 90 -140mm |
Drill system and operation | Hydraulic |
DRILL PIPE |
|
Drill pipe length | 2.00 meter |
Drill pipe diameter | 60/76 mm |
MUD PUMP |
|
Flow capacity | 200 liter/min |
Max. working pressure | 1.8MPA |
HYDRAULIC SYSTEM |
|
Hydraulic tank capacity | 140 liter |
DIMENSIONS |
|
Overall length | 3200 mm |
Overall width | 1400 mm |
Overall height | 1500 mm |
Diesel engine |
|
Power | 16.2KW |
HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
