Most durable and economic!HF100YA2 crawler type DTH blasting hole drill machine
- 20 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T
- 3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
- 2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
- The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Type: | Other, DTH drilling rig | Power Type: | Diesel | ||
Place of Origin: | Henan, China | Brand Name: | HF | Model Number: | HF100YA2 |
Usage: | Other, for open mining | Voltage: | 220V/380V | Power(W): | 33KW |
Dimension(L*W*H): | 4100*2030*2020mm | Weight: | 2800kg | Certification: | ISO CE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
HF100YA2 crawler type DTH blasting hole drill machine
1. depth 30m, hole diameter 90~130mm;
HF100YA2 down the hole DTH drilling rig data:
Total Weight (kg) | 2800 |
Drilling diameter (mm) | 90~130 |
Dimension (L * W * H)(mm) | 4100*2030*2020 |
Drilling depth (m) | 30 (max:40) |
Traveling speed (km/h) | 2 |
Once promotion distance (mm) | 2000 |
Grade ability (°) | 30 |
Working pressure (mpa) | 0.7~1.4 |
Chassis ground clearance (mm) | 260 |
Air consumption (m³/min) | 7~15 |
Skid pitch (°) | up and down total 100 |
Host Power (kw) | 33 |
Sliding tilt swing (°) | Left 35, right 10 |
For rock (f) | 6~20 |
Skid compensation (mm) | 900 |
Impact frequency (r/min) | 840 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. |

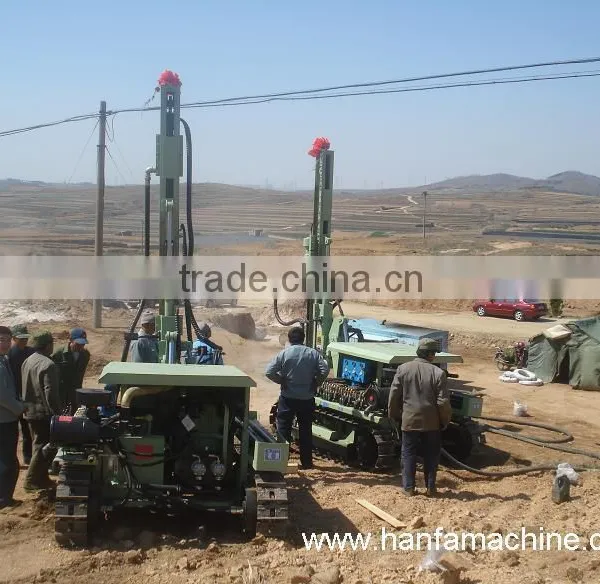

In working site:
Customers visit us:
