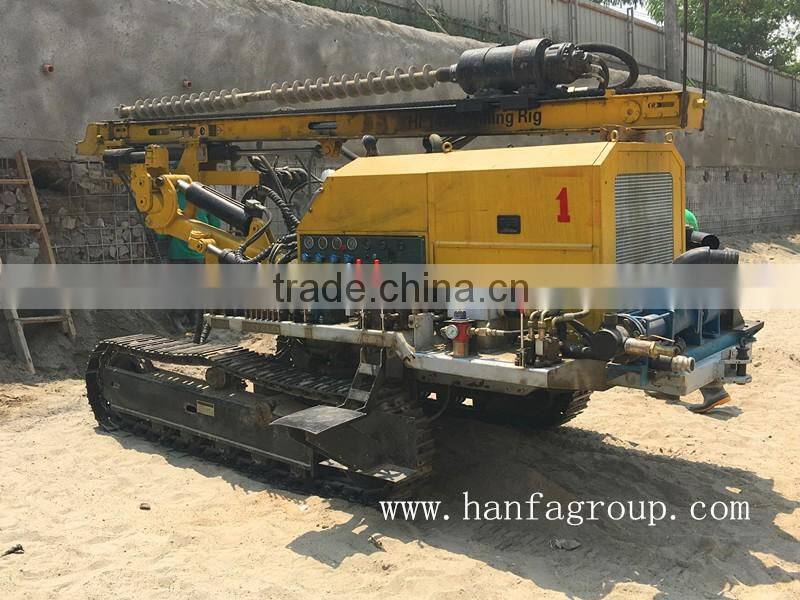

HF130Y Crawler Hydraulic Drilling Rig
1. HF130Y hydraulic crawler drill rig , using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection .
2. HF130Y hydraulic crawler drill rig structure is compact,.while the mast has adjustable
compensation function.when drilling, the mast supported on the ground, borehole stability is good.
3. HF130Y hydraulic crawler drill rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
4. HF130Y hydraulic crawler drill rig is mainly used for piling anchor, water Wells,
Photovoltaic solar spiral pile, DTH blasting construction, etc.
Bore diameter(hammer) | 90-300mm |
Bore depth | 20-100m |
Air consumption | 10-26m³/min |
Air pressure | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
|
Pipe diameter | 76mm/89mm |
For rock | F=6-20 |
Bore diameter(screw) | Max 400mm |
Bore depth | 0-30m |
Screw pipe diameter | 130-400mm |
Once promotion | 2000mm |
Skid pitch | 100° |
Swinging angle of skid | Left and right total 40° |
Rotation speed | 0-70r/min |
Host power | 56Kw |
Climb ability | 35° |
Dimension(L*W*H) | 4460*1950*2460(mm) |
weight | 4360Kg |
Walk speed | 0-2.5km/h |
Hanfa Group established in 1998 is a key enterprise in the industry of drilling machine in China, with the ability to research, manufacture and market.Presently,it has three subsidiaries which are Zhengzhou Hanfa Prospecting Machinery Co., Ltd,Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.Hong Kong Hanfa Prospecting Machinery Co., Ltd.
