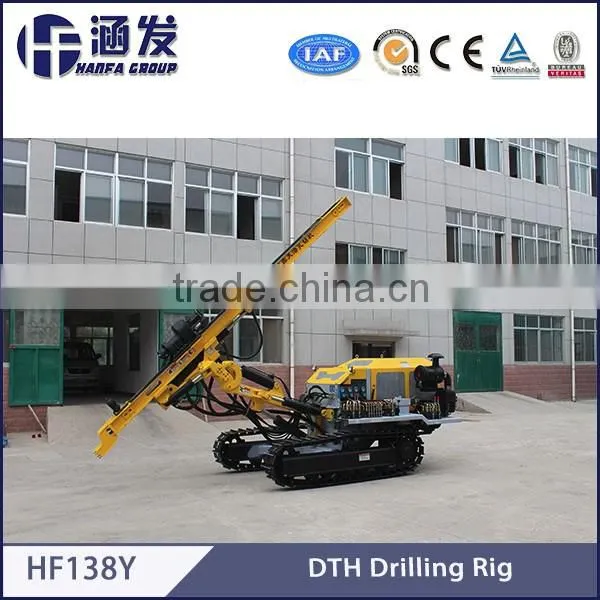

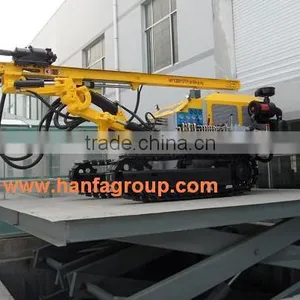

Durable! HF138Y Crawler DTH Hammer Mining Drilling Equipment

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, DTH

Power Type:

Diesel

Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, DTH

Power Type Diesel

Place of Origin Henan, China

Brand Name HF

Model Number HF138Y

Usage Other, blasting hole

Voltage Customized

Power(W) 45kw

Dimension(L*W*H) 5200*2030*2300mm

Weight 3.8T

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

DTH Hammer Mining Drilling Equipment

Main technical parameters of HF138Y
Wind pressure (Mpa)	0.7----1.6
Air consumption (m³/min)	10----15
Drilling diameter (mm)	90----130
Drilling depth (m)	level 40m,down 30m
Once promotion distance (mm)	3000
Drill diameter (mm)	60
Skid compensation (mm)	900
Maximum lift force (N)	24900
Skid pitch (°)	up and down total 45
Swinging angle of skid (°)	Left 40, right 30
Boom Pitch (°)	up and down total 60
Boom swing angle (°)	Left 30, right 40
Grade ability (°)	30
Chassis ground clearance (mm)	260
Traveling speed (km/h)	2
Back to the transit speed (r/min)	0----90
Rotary torque (N.m)	2000
Host Power (Kw)	45
For rock (f)	6----20
Impact frequency (r/min)	950---1500
Total Weight (kg)	3800
Dimension (L * W * H)	520020302300
