Most Durable and Economic!HF100YA2 Crawler Type Down the Hole Drilling Rig

US$ 12,050 - 14,050 MOQ: 1 Set

Key Specifications

Condition:

New, New

Type:

Other, DTH drilling rig

Power Type:

Diesel

Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Other, DTH drilling rig

Power Type Diesel

Place of Origin Henan, China

Brand Name HF

Model Number HF100YA2

Usage Other, for open mining

Voltage 220V/380V

Power(W) 33KW

Dimension(L*W*H) 4100*2030*2020mm

Weight 2800kg

Certification ISO CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

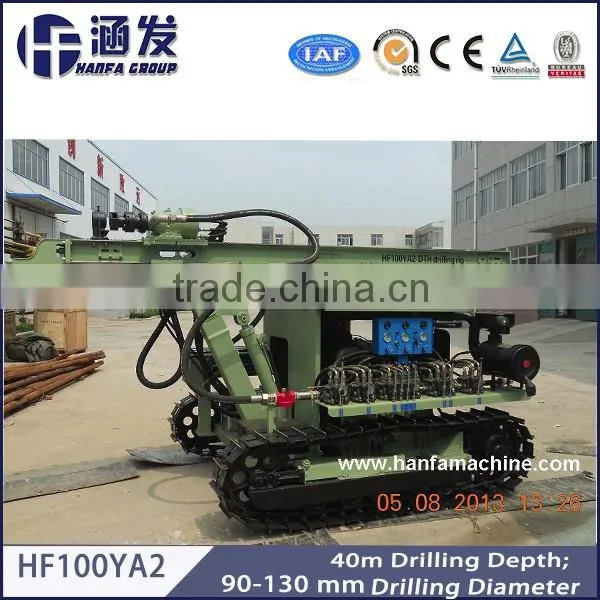

HF100YA2 crawler type down the hole drilling rig

Main Features

1. depth 30m, hole diameter 90~130mm;

2. steel crawler mounted, has strong climbing ability, suitable for rugged ground operations;

3. full hydraulic, simple to operate, 2 persons can operate it well;

4. high rotary speed, big rotary torque, low air consumption;

5. it is mainly suitable for open mining, water conservancy, power plants, road building and other rock drilling blasting holes;

Technical Data

HF100YA2 down the hole DTH drilling rig data:

Total Weight (kg)	2800
Drilling diameter (mm)	90~130
Dimension (L * W * H)(mm)	410020302020
Drilling depth (m)	30 (max:40)
Traveling speed (km/h)	2
Once promotion distance (mm)	2000
Grade ability (°)	30
Working pressure (mpa)	0.7~1.4
Chassis ground clearance (mm)	260
Air consumption (m³/min)	7~15
Skid pitch (°)	up and down total 100
Host Power (kw)	33
Sliding tilt swing (°)	Left 35, right 10
For rock (f)	6~20
Skid compensation (mm)	900
Impact frequency (r/min)	840
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
