Product Details
Condition: | New | Type: | Other, DTH | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | HF Crawler Mining Machine | Model Number: | HF140Y Crawler Mining Machine |
Usage: | Other, Blasting hole | Voltage: | 220V | Power(W): | 56KW |
Dimension(L*W*H): | 5270*1950*2300(mm) | Weight: | 4.8T | Certification: | CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

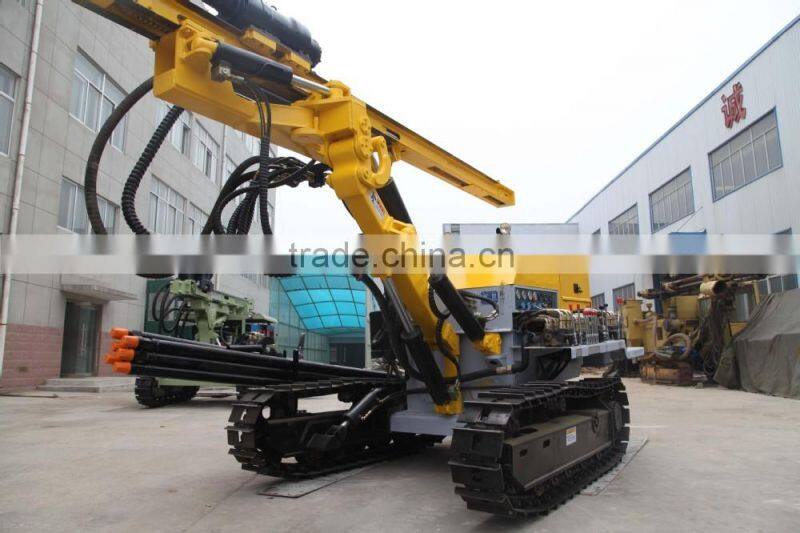

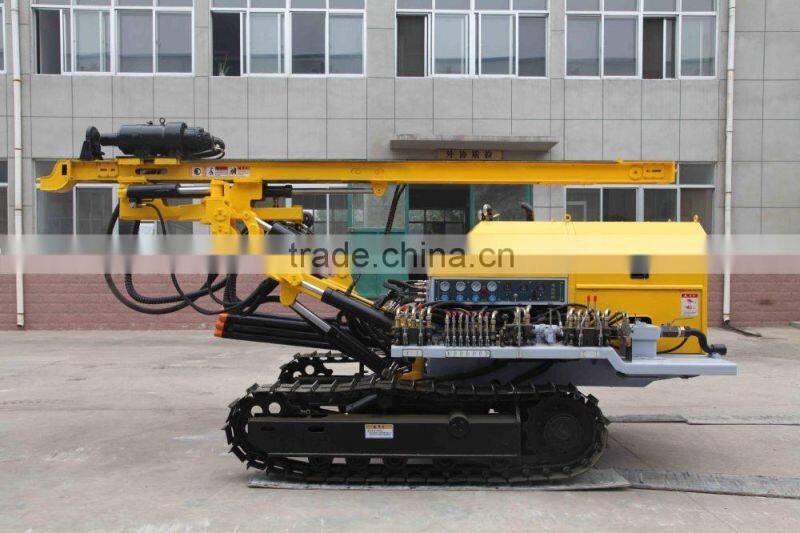

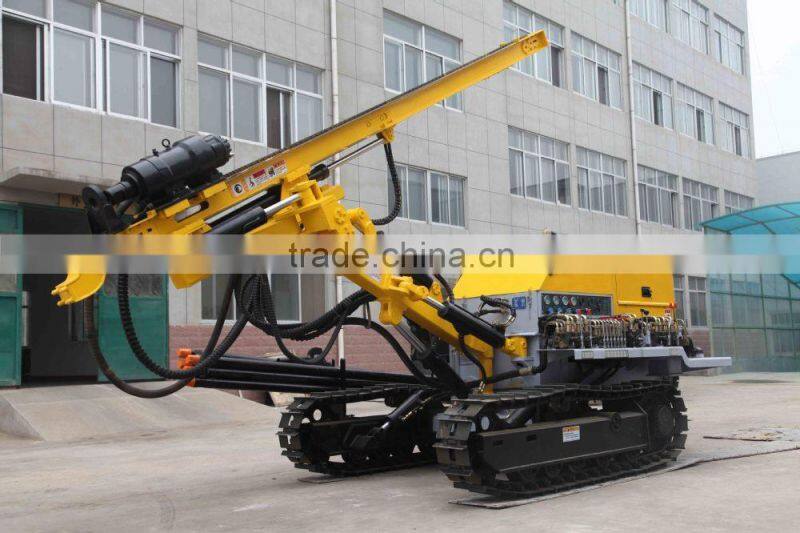

Crawler Drill Rig for Anchor Constructionmining
HF140Y High Air Pressure DTH Drill Crawler open with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs.
Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features.
Whole diameter 115- 165mm,
with a piercing, high efficiency, Maintenance is simple, high reliability, is a mining, highway,
water conservancy, power station construction and other construction ideal for drilling rig operations.
III. Main technical parameters
Bore diameter | 115-140mm |
Bore depth | 60m |
Walk speed | 0-2.5kw/h |
For rock | F=6-20 |
Air pressure | 1.05-2.46Mpa |
Air consumption | 10-20m³/min |
Once promotion | 3000mm |
Skid pitch | Up and down total100° |
Skid swing angle | Up and down total100° |
Boom swing angle | Left and right total 70° |
Boom pitch | Up and down total 60° |
Host power | 56Kw
|
Rotation speed | 0-126/min |
Dimension(L*W*H) | 5270*1950*2300(mm) |
weight | 4800Kg |
|
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
1.New machine provides technical train.
2.Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3.When the machine should be maintained,you will receive the reminding from us.
4.According to different geological conditions,we will recommend different construction plans for you.
5.Remind you which are wearing parts,so you can prepare enough.
6.24 hours respond to your quality problem.
7. Other customer's reasonable request
