Hot Selling HF138Y DTH Drilling Rig

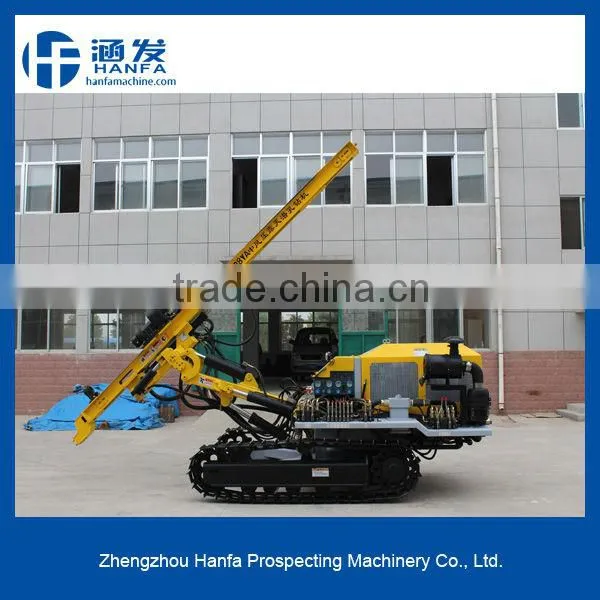

Hot Selling HF138Y DTH Drilling Rig photo-1
US$ 25,000 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, DTH drilling rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, DTH drilling rig
Power Type Diesel
Place of Origin Henan, China
Brand Name Hanfa dth drilling rig
Model Number HF130Y dth drilling rig
Usage Other, blasing holes,anchoring,open mining
Voltage 220V/380V
Power(W) 45KW
Dimension(L*W*H) 5200*2030*2300
Weight 3800kg
Certification ISO,CE
Warranty one year quality warranty
After-sales Service Provided Engineers available to service machinery overseas

Hot selling HF138Y DTH drilling rig





Specifications

HF138Y type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variablebit shift hole easy

The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the

sliding frame support on the ground, drilling and good stability. Use HF138Y rig reliable Chazzan efficient drilling in hard rock drilling rig

as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.

  Hot selling HF138Y DTH drilling rig

Technical Parameters:

Main technical parameters

Wind pressure (Mpa)

0.7----1.6

Air consumption (m³/min)

10----15

Drilling diameter (mm)

90----130((max:203)

Drilling depth (m)

level 40m,down 80m

Once promotion distance (mm)

3000

Drill diameter (mm)

60

Skid compensation (mm)

900

Maximum lift force  (N)

24900

Skid pitch (°)

up and down total 95

Swinging angle of skid (°)

Left 38, right 31

Boom Pitch (°)

up and down total 70

Boom swing angle (°)

Left 41, right 33

Grade ability (°)

30

Chassis ground clearance (mm)

260

Travelling  speed (km/h)

2

Back to the transit speed (r/min)

0----80

Rotary torque (N.m)

2000

Host Power (Kw)

45

For rock (f)

6----20

Impact frequency (r/min)

950---1500

Total Weight (kg)

3800

Dimension (L * W * H)

5200*2030*2300

Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.



More pictures:

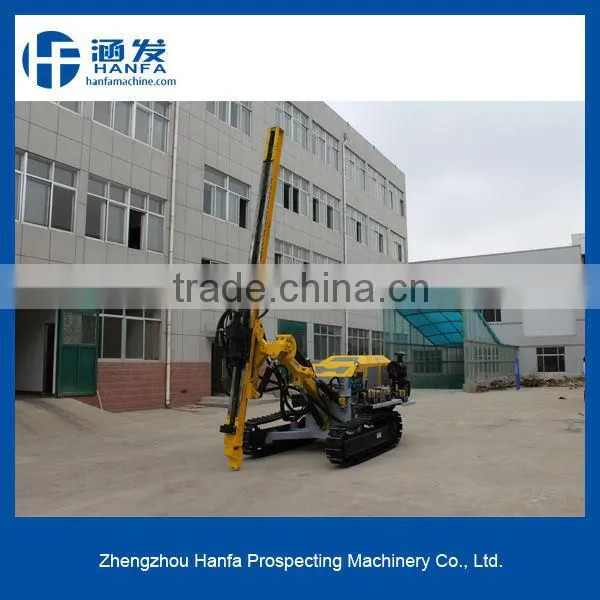

 Hot selling HF138Y DTH drilling rig
