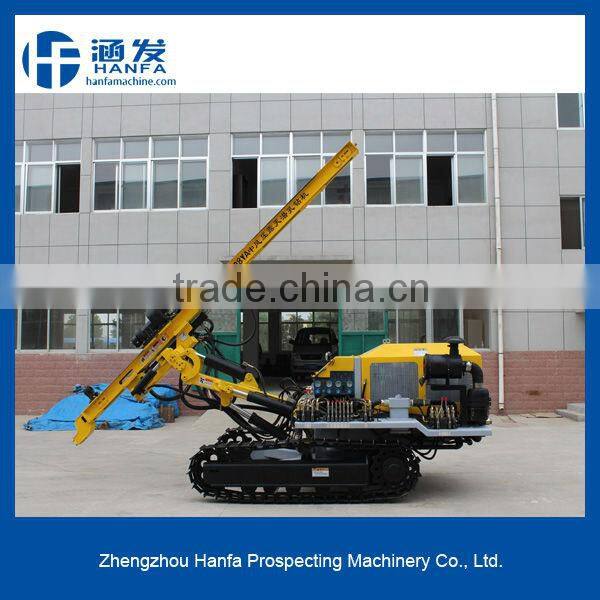

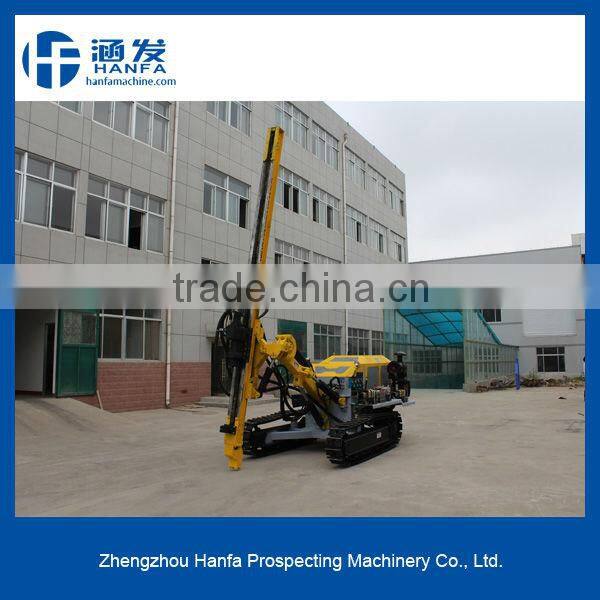

Crawler type rock drilling rig! HF138Y blasting hole drilling machine

FOB Price

USD $25,000 - $28,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Qingdao Tianjin Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, DTH drilling rig
Power Type	Diesel	Place of Origin	Henan, China
Brand Name	Hanfa	Model Number	HF130Y
Usage	Other, blasing holes,anchoring,open mining	Power(W)	45KW
Dimension(LWH)	520020302300	Weight	3800kg
Certification	ISO,CE	Warranty	one year quality warranty
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

HF138Y blasting hole drilling machine
1.level 40m, down 30m
2.90-130mm diameter
3.f=6-20
4.easy to operate

Crawler type rock drilling rig! HF138Y blasting hole drilling machine

Specifications

HF138Y type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variablebit shift hole easy

The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the

sliding frame support on the ground, drilling and good stability. Use HF138Y rig reliable Chazzan efficient drilling in hard rock drilling rig

as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.

Technical Parameters:

Main technical parameters
Wind pressure (Mpa)	0.7----1.6
Air consumption (m³/min)	10----15
Drilling diameter (mm)	90----130((max:203)
Drilling depth (m)	level 40m,down 80m
Once promotion distance (mm)	3000
Drill diameter (mm)	60
Skid compensation (mm)	900
Maximum lift force (N)	24900
Skid pitch (°)	up and down total 95
Swinging angle of skid (°)	Left 38, right 31
Boom Pitch (°)	up and down total 70
Boom swing angle (°)	Left 41, right 33
Grade ability (°)	30
Chassis ground clearance (mm)	260
Travelling speed (km/h)	2
Back to the transit speed (r/min)	0----80
Rotary torque (N.m)	2000
Host Power (Kw)	45
For rock (f)	6----20
Impact frequency (r/min)	950---1500
Total Weight (kg)	3800
Dimension (L * W * H)	520020302300

Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
