Home > Products > DTH Drilling Machine > Blasting hole drilling!!! HF100Y Crawler DTH down the hole hammer drill rig

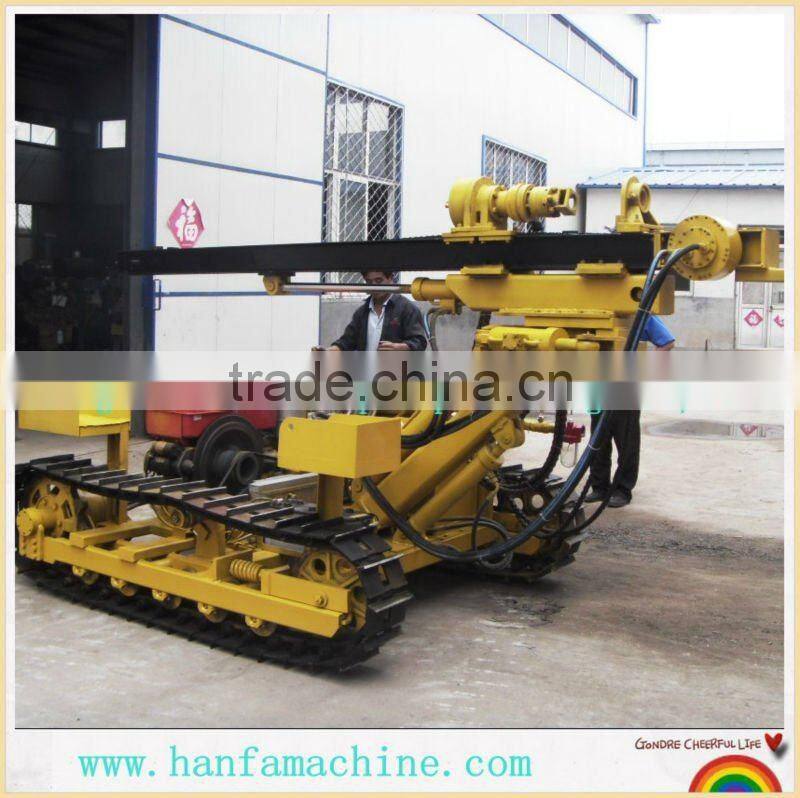

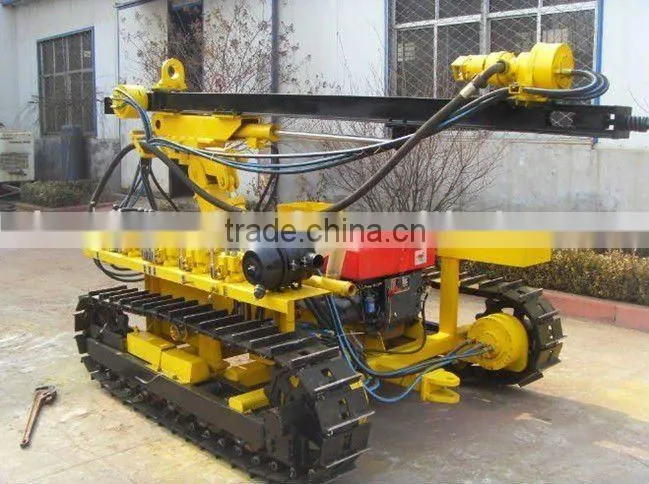

Blasting hole drilling!!! HF100Y Crawler DTH down the hole hammer drill rig
USD $1 - $17,000
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- Qingdao
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Other, DTH | Place of Origin: | Henan, China |
| Brand Name: | HF | Model Number: | HF100Y | Usage: | Ore |
Product Description
Specifications
HF100Y Crawler DTH down the hole hammer drill rig1.crawler type
2.hydraulic control
3.easy to operate
4.small volume
Blasting hole drilling!!! HF100Y Crawler DTH down the hole hammer drill rig
1.Hot sales drilling rig
2.Crawler blast bore drilling rig
Product Description:
1)Small volume,crawler chassis,easy for transportation
2)High drilling efficiency
3)High grade ability
4)Low air consumption
Main Parameters:
OverallUnit | 2.5ton | Diameter | 90-130mm |
Dimension | 4000*2020*2010 | Depth | 30m |
Gradeability | 30° | OncePush-offLenth | 2m |
MnimumGroundClearance | 250mm | AirConsumption | 6-9m3/min |
TravelSpeed | 2km/h | OncePropelLenth | 2m |
Pitch Angle of carriage | up and down10° | Power | 25HP(18.6kw) |
Tilt Angle of carriage | left 35° right 10° | BedStratum | f=6-20 |
Lenth compensation of carriage | 900m | Rush out Rate | 840r/min |
Usage: used in large,medium,small mines for blasing works.
