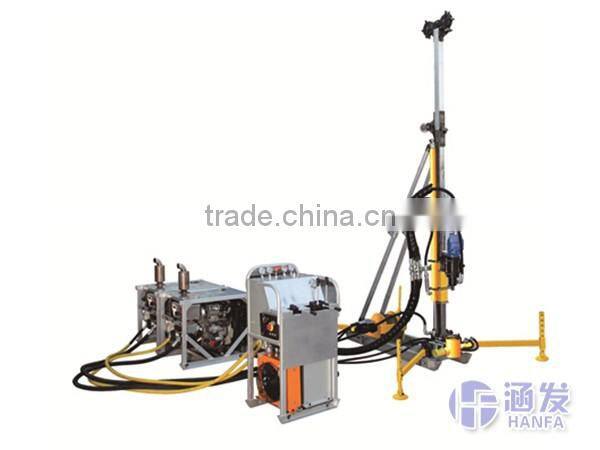

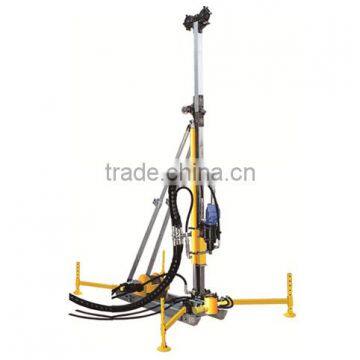

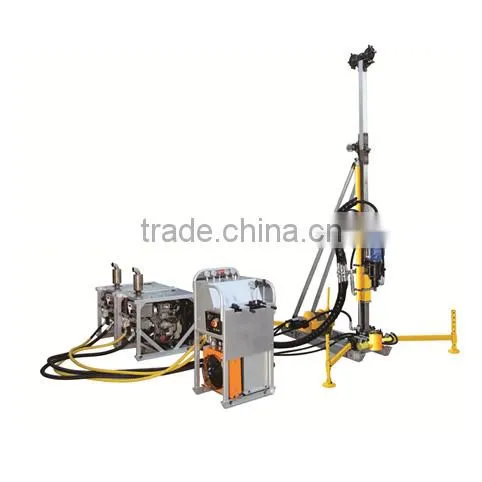

HFP200 hydraulic core drilling machine price
Fields of Application

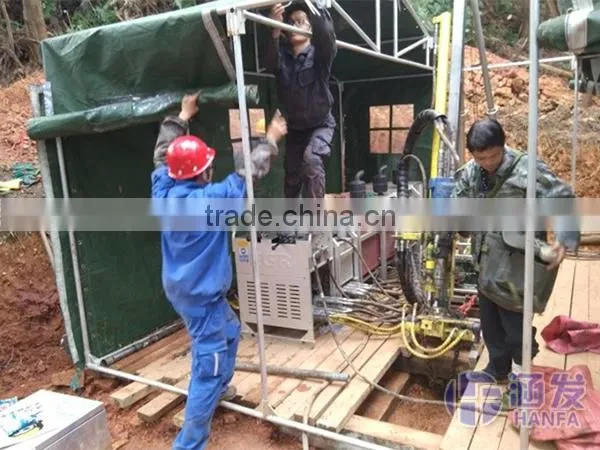

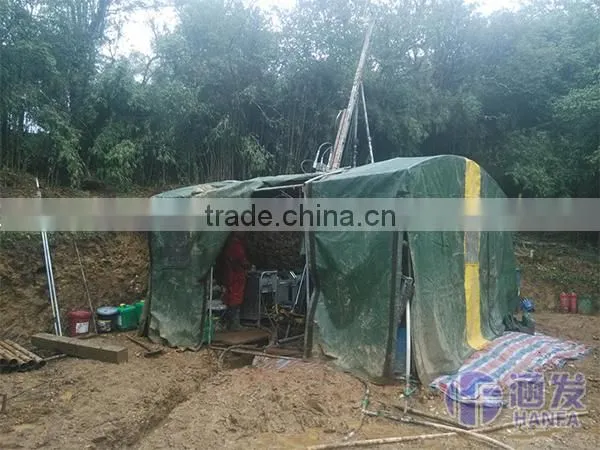

HFP200 is widely used in mineral exploration, infrastructure construction (i.e.railway, road and bridge, etc.), hydraulic and hydropower project, tunnelexploration and geographical investigation. It works particularly well in areaswith complex geographic characteristics such as mountainous regions, forestsand plateaus. It is the ideal drilling rig when operating in hard-to-accessareas within a depth of 200 meters, executing small projects, conductinginitial investigations and working on tight schedules.
Key Characteristics
1.Light weight –Modulized design with the heaviest pieceweighing only 120kg
2.Aviationaluminum materials used for more than 90% of the framework

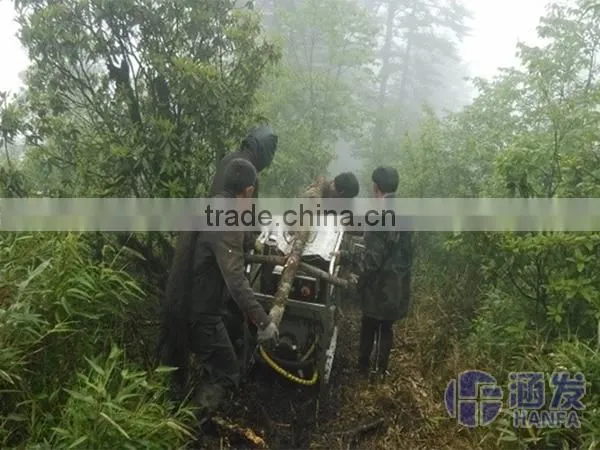

3.Fast – Easy to relocate with thecapability of being assembled/disassembled within only 20 minutes
4.Thin wall rods, low resistance,and speed penetration
5.Excellent – Long stroke cylinder, easier to control than the chain
6.Global leading brands ensuring stability andreliability
7.Cost-efficient – No road construction; No infrastructure construction; Time saving
Hydraulic coring and drilling; No drilling tower; Energy saving
Environmentally friendly;Worry-free
Low consumption;Cost saving

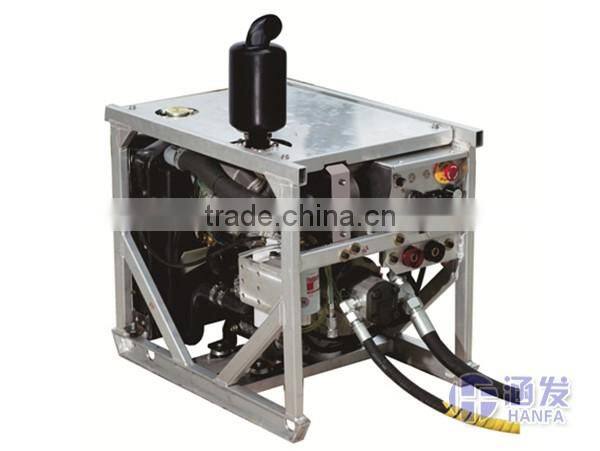

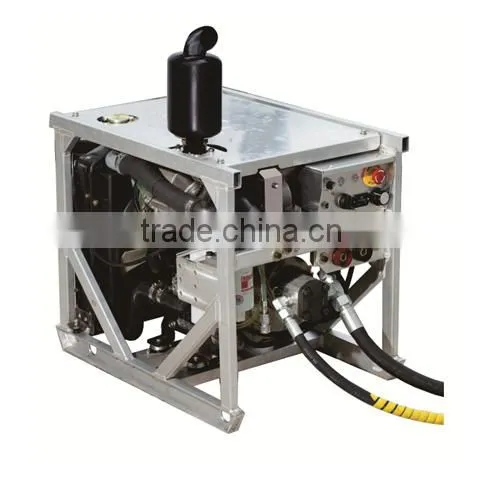

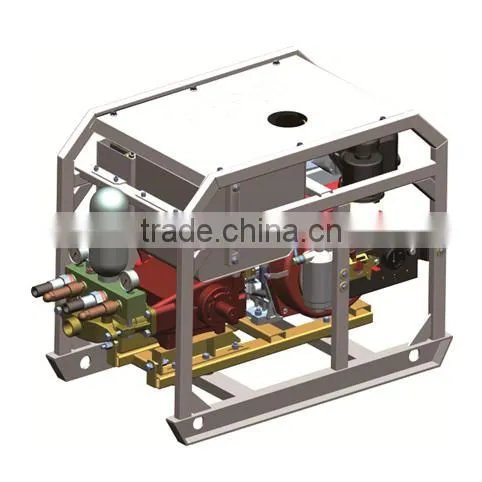

Engine Module

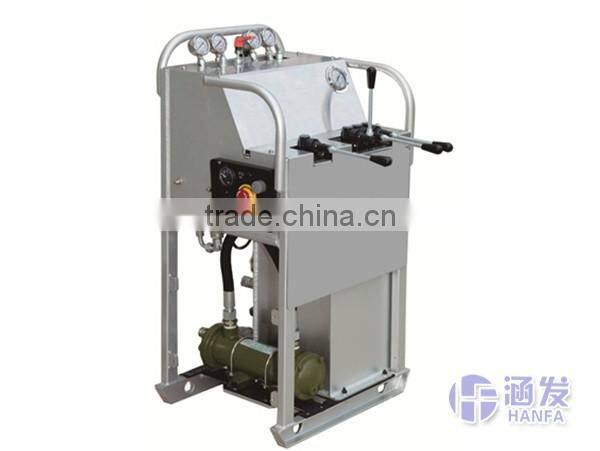

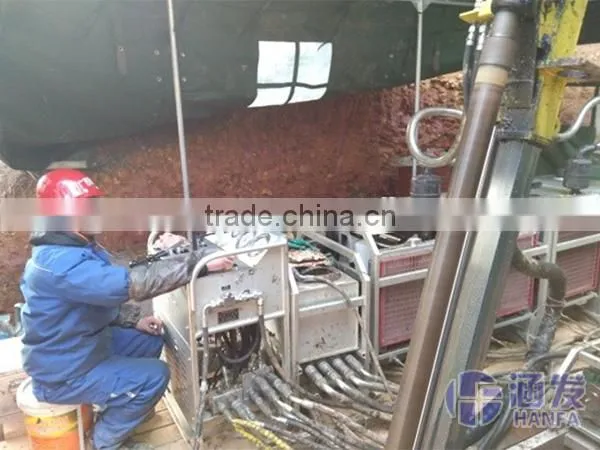

Hydraulic operation platform
HFP200Highlights
The key issue regardingthe traditional portable and vertical drilling machines, when executingprojects with a depth of 200 meters, is the balance of light weight and efficiency. With its light weight, easy assembling/dissembling capability andhigh efficiency, HFP200 is your best new choice.
| Drilling depth capacity | HQ/NTW/BTW | 30/100/200m |
| Hole Diameter | Rod Length 1.0m | 96/75.7/60mm |
| Core Diameter | 63.5/56/42mm | |
| Power engine | KUBOTA D1105.T, 23.5KW/3000RPM | |
| Hydraulic system | American Parker valve,water cooler | |
| Maximum pressure 20Mpa/max,Maxium flow 54L/min | ||
| Top drive rotation head | Maximum torque | 400N.m |
| Maximum rotation speed | 1300rpm | |
| Feed travel | 1.27m | |
| Pull/Thrust | 33KN/24KN(Single cylinder) | |
| Winch | Average speed | 150m/min |
| Lift | 600kg | |
| Were Diameter | 5mm | |
| Were accommodation | 240m | |
| Mast | Height of the mast on 90 degree | 3.8m |

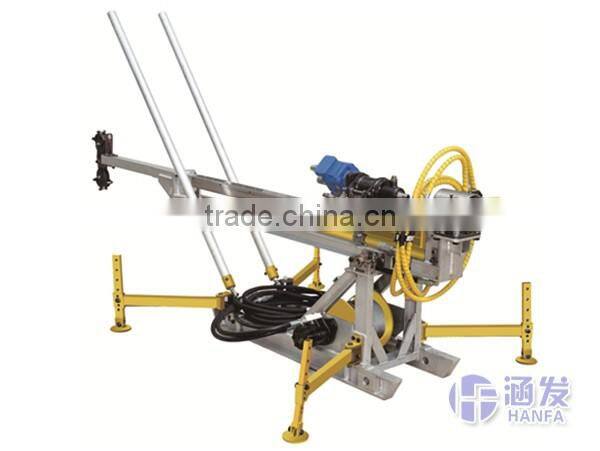

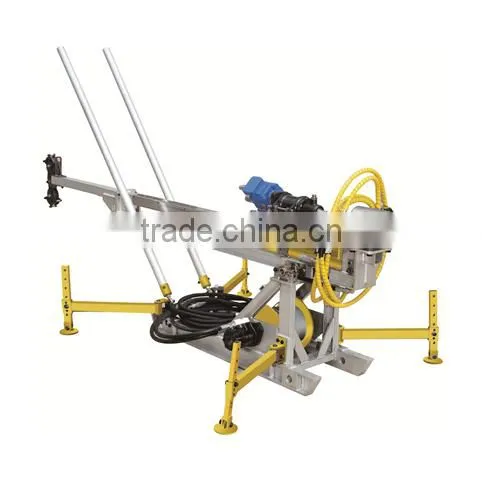

| Drilling angle | 45º-90º(standard ) | |
| 0º-90º(option ) | ||
| Size and weight | Platform area/Module quantity | 3m×3m/6 piece |
| Gross/Maximum module | 605kg/120kg | |

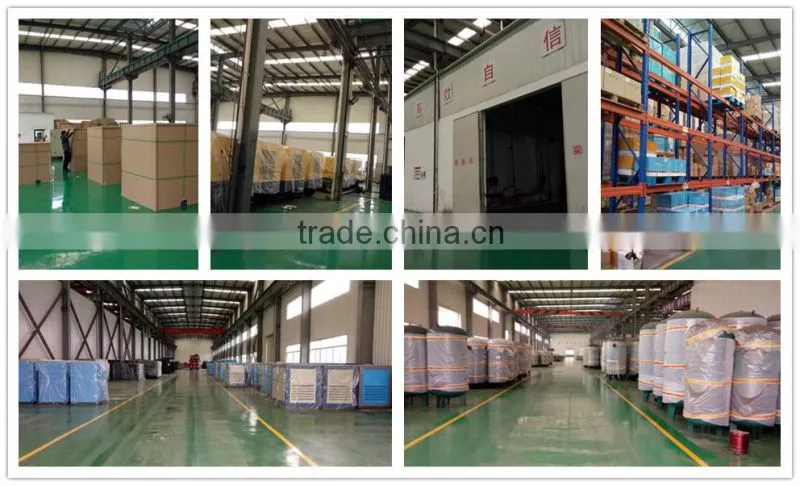

HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.

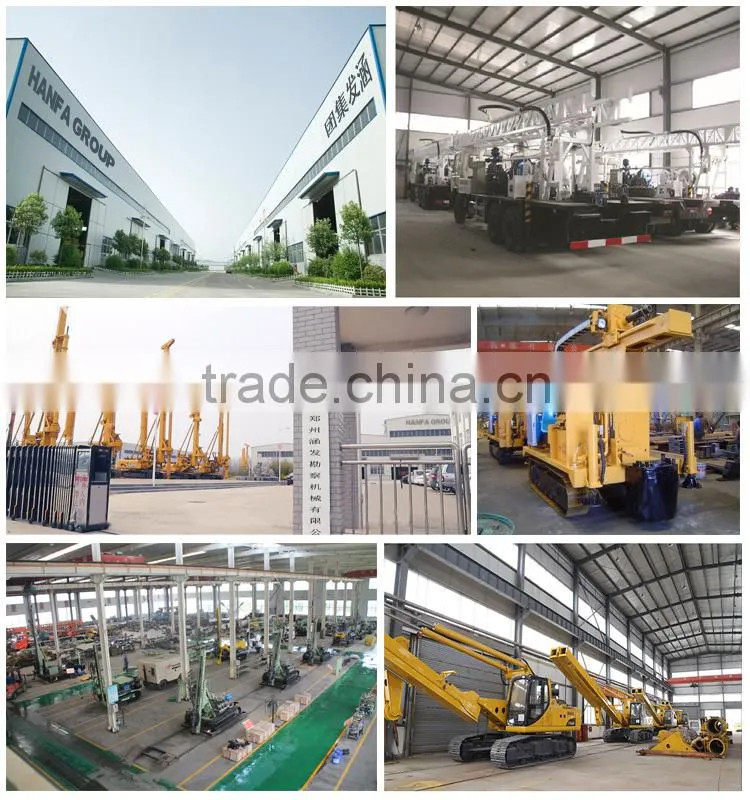

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
