Product Details
Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | HF core drilling machine | Model Number: | HFDX-4 core drilling machine |
Usage: | Other, core | Voltage: | 220V/380V | Power(W): | 132Kw (177HP) |
Dimension(L*W*H): | 2430*1540*1450 mm | Weight: | 5700 Kg | Certification: | ISO CE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

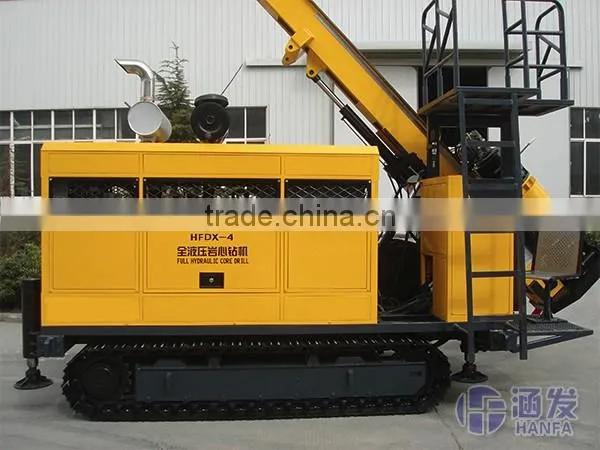

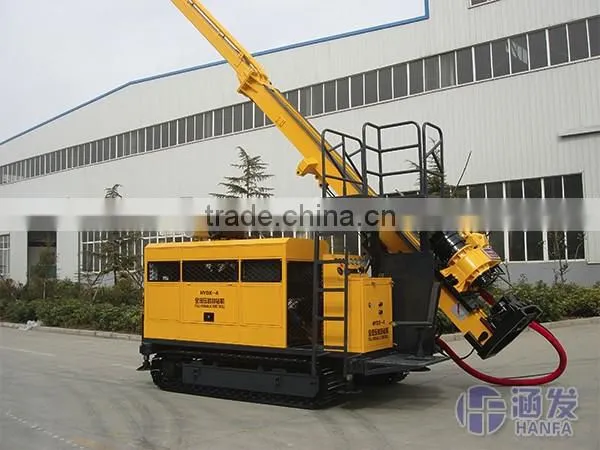

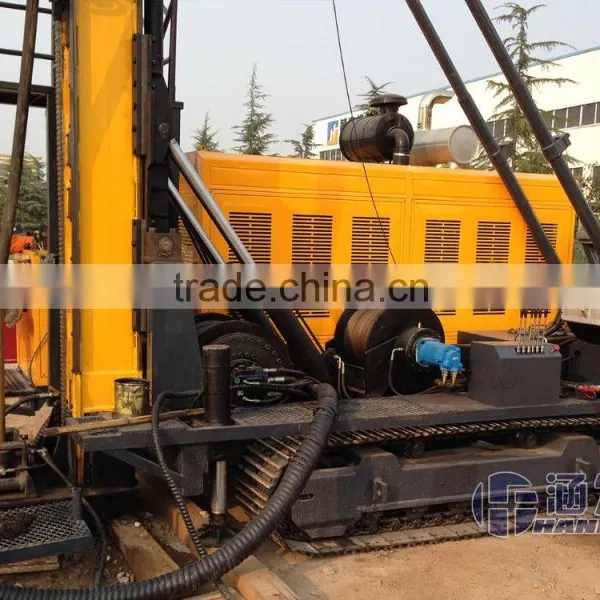

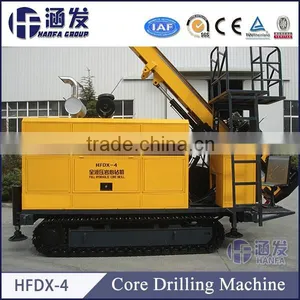

HFDX-4 core drilling machine for sale
1.The leading core drill rigs in the developed countries are full hydraulic operated type ,which adopt the technology of wire-drawing core with diamond tip ,this type of drill rig is also the main developing trend in the field of drill rig technology and related equipment,under the international and domestic trend ,our factry has developed the HFDX-4 Full Hydraulic Operated Core Drill Rig ,this type of drill rig can take the place of imported products and be applied in the fields of geology,metallurgy,coal mines,petroleum,natural gas and underground water exploration.
2.Crawler-type layout,the feeding and lifting of rotator are driven by a series motor with gear and chain with a long stroke,3.5m stroke.the rotation of spindle is driven by a single engine,it has four mechanical shifts .and it speed could be adjusted by hydraulic pressure with stepless speed change.the mast has the funcion of sliding and touching ground,the spindle lifted and lowered with oil cylinder,it could be folded for transporteing and storing .the spindle has a big diameter hole and high-precision structure.
Diesel Engine | Model | Cummins engine ,6BTA5.9-C180 |
Power | 132Kw (177HP) | |
Speed | 2200rpm | |
Drilling Capacity | BQ | 1000m(3280feet) |
NQ | 700m(2296 feet) | |
HQ | 500m(1640 feet) | |
PQ | 300m(984 feet) | |
Rotator Capacity | RPM | Four Shifts/ Stepless Change 0-1100 RPM |
Max. Torque | 3700 N·m(2727 lbf·ft) | |
Hold Diameter | 121 mm(4.76 inch) | |
Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
Max. Feeding Power | 60 kN(13480 lbf) | |
Capacity of Main Hoist | Hoisting force (single wire) | 57kN(12814 lbf) |
Steel Wire Diameter | 18 mm(0.71 inch) | |
Steel Wire Length | 50 m(164 feet) | |
Capacity of Steel Wire Hoist | Hoisting Force (single wire) | 1200 Kg(2646 lb) (bare drum) |
Steel Wire Diameter | 6 mm(0.24 inch) | |
Steel Wire Length | 1000 m(3280 feet) | |
Mast | Mast Height | 9.6 m(31.49 feet) |
Mast Adjusting Angle | 0°90° | |
Drilling Angle | 45°90° | |
Feeding Stroke | 3500 mm(137.80 inch) | |
Slippage Stroke | 600 mm(23.62 inch) | |
Other | Weight (platform type) | 5700 Kg(12569 lb) |
Working Dimensions (L×W×H) | 5100×2200×2450mm(200×86.6×96.5 inch) (Main equipment) | |
Transport Dimensions (L×W×H) | 2430×1540×1450 mm(95.7×60.6×57.1 inch) (Pump series) | |
Mud Pump | Model | BW150 |
Foot Clamp | Clamping Scope | 55.5-110 mm(2.19-4.33 inch) through hole 154mm(6.06 inch) |

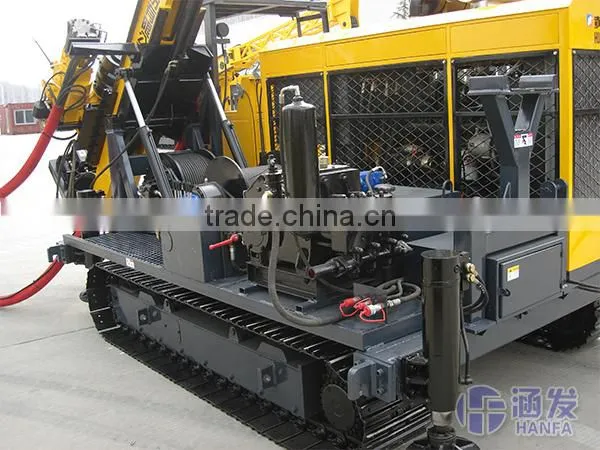

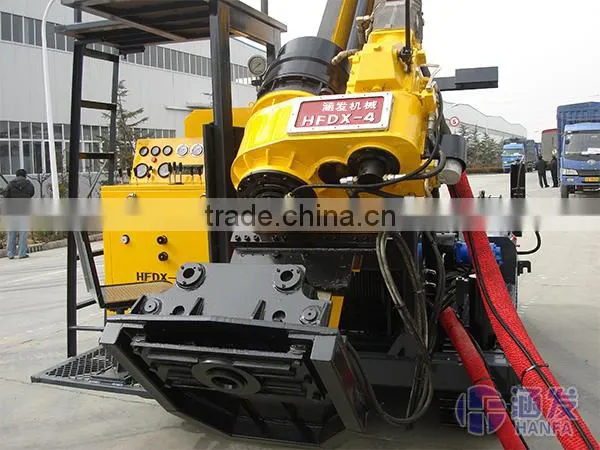

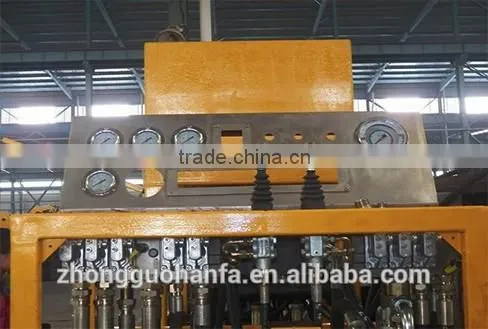

Operation Panel:

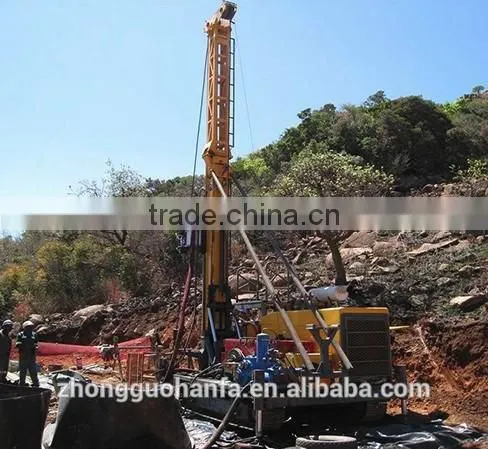

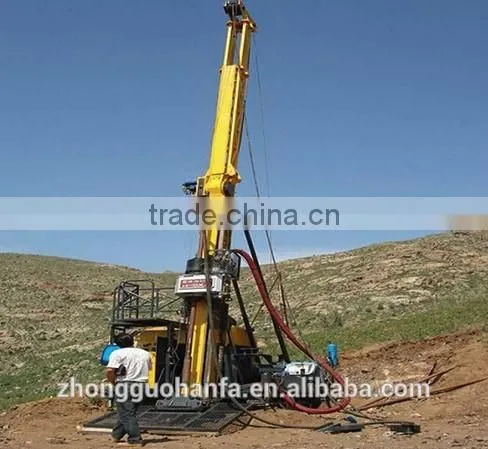

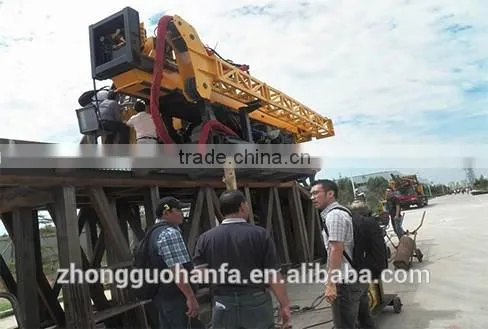

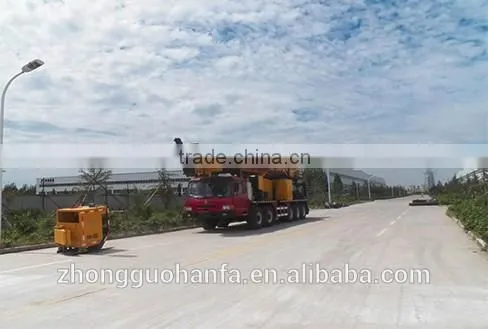

Working Site:
HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
