Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Mine Line Best Sell!Best Sell!HFDX-6 Full Hydraulic Crawler Type Core Drilling Rig

Mine Line Best Sell!Best Sell!HFDX-6 Full Hydraulic Crawler Type Core Drilling Rig

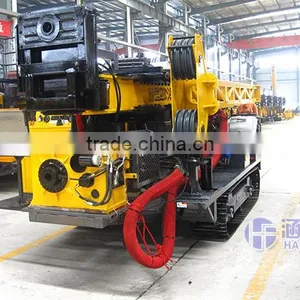

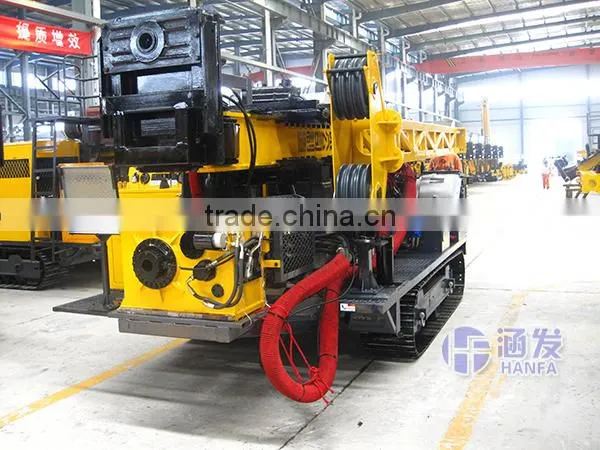

Mine Line Best Sell!Best Sell!HFDX-6 Full Hydraulic Crawler Type Core Drilling Rig photo-1

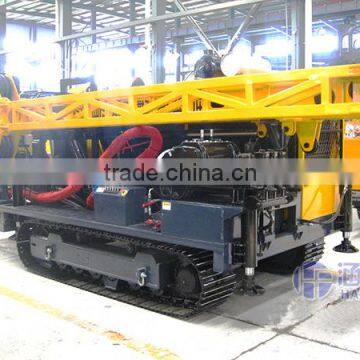

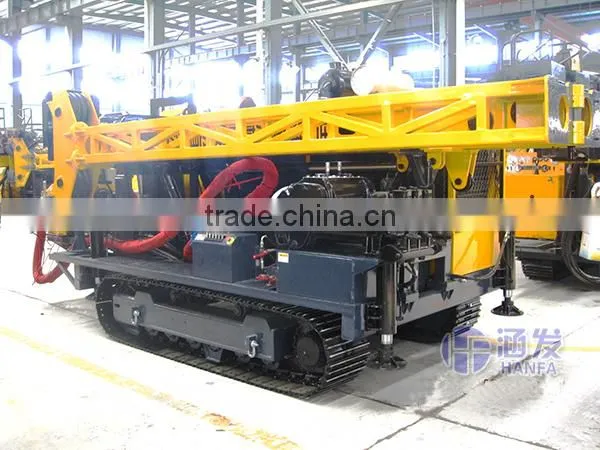

Mine Line Best Sell!Best Sell!HFDX-6 Full Hydraulic Crawler Type Core Drilling Rig photo-2
US$ 100 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name HanFa multi-function drilling machine
Model Number HFDX-6 multi-function drilling machine
Usage Water Well
Voltage 220V/380V
Power(W) 178kW
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

HFDX-6 full hydraulic crawler type core drilling rig

Mine line best sell!Best sell!HFDX-6 full hydraulic crawler type core drilling rig

I. General Introduction

HFDX-6 Hydraulic Core Drilling Rig,an up-to-date new product,is  a  thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world.

 1.  Main Features of the rig:

 1)Reliable Quality

2) High Efficiency



3)  Environmental Protection





4)  Energy Saving

Mine line best sell!Best sell!HFDX-6 full hydraulic crawler type core drilling rig



2.  Application Range



HFDX-6  can be applied  to both slant and vertical drilling. Being  a rig equipped with diamond and the carbide alloy bit drilling, it can be used in  the  fields  of  geology,  metallurgy,  coal  mining,  nuke  industry  and hydrology measuring.



II. Main Performance Parameters of HFDX-6



The figures  in these tables have been calculated,  based  on field experiences,  and may be reasonably expected.

Actual drilling capacity will depend on in-hold tools and conditions,  drilling techniques  and equipment used.



Diesel Engine

Model



Cummins 6CTA (turbocharged

and charge water cooled)

Displacement

8.3L (2.19 US Gallons)

Power

178kW (240HP)

Rated RPM(Factory setting)

2200rpm

Drilling Capacity

BQ

2000 m(6560 feet)

NQ

1600 m(5248 feet)

HQ

1300 m(4264 feet)

PQ

1000 m(3280 feet)

Drill Head

Rotation Motor

Double Hydraulic Motor



-variable and Reversible



Maker: SAUER-DANFOSS

RPM



Two Shifts/ Stepless Change 0-1100 RPM

Ratios

1st                                       8.776:1

2nd                                  2.716:1

Head Opener

sidewise sliding way with hydraulic drive

Hydraulic Chuck(PQ)



Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of  222 400 N

Max. Torque

6400 N.m(4717 lbf.ft)

Hold Diameter

121 mm(4.76 inch)

Max. Lifting capacity of Spindle

220 kN(49456 lbf)

Max. Feeding Power

110 kN(24728 lbf)











Our Services

Mine line best sell!Best sell!HFDX-6 full hydraulic crawler type core drilling rig

Mine line best sell!Best sell!HFDX-6 full hydraulic crawler type core drilling rig
