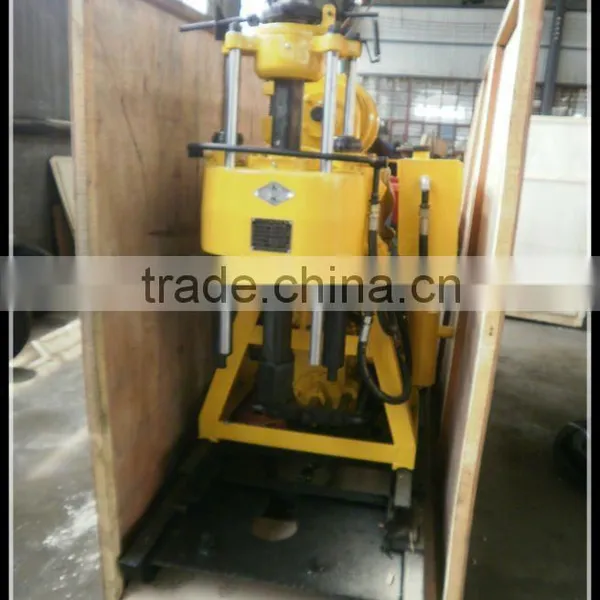

200m Capable Drilling Rig ! HF200 Exploration Drilling Machine

200m Capable Drilling Rig ! HF200 Exploration Drilling Machine thumbnail-1
200m Capable Drilling Rig ! HF200 Exploration Drilling Machine photo-1
US$ 6,000 - 8,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Place of Origin Henan, China
Brand Name Hanfa exploration drilling machine
Model Number HF200 exploration drilling machine
Usage Other, core sampling
Voltage 220/380V
Dimension(L*W*H) 2.75*0.95*1.6m
Weight 975KG
Certification ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

200m Capable drilling rig! HF200 exploration drilling machine





Specially recommended

This machine gained 3 national practical new-type patents invention.

To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong rigidity and big transfer torque.

To be provided with cone plate friction clutch, being facile to operate, with big transfer torque.

To adopt rolling bearing type hoist, with wide brake band and big lifting capacity.

To be equipped with speed reducer and sludge pump, being integrated structure.

The entire machine is featured by strong adaptability, high motive power, low cost and broad compatibility.

To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.

To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.

Main machine technical parameter

Drilling depth

200m

Drilling diameter

300mm

End diameter

75mm

Drilling pipe diameter

50mm

Drilling angle

90° - 75°

Drilling weight (no include power)

975kg

Unity machine dimensions

2.75×0.95×1.6m

Spindle

Spindle speed

64, 128, 287, 557r/min

Spindle stroke

 450mm

Hoist

Max. single line hoisting capacity

2400kg

Reel lifting speed

17, 35, 75, 151r/min

Reel diameter

140mm

Wire rope diameter

13mm

Wire rope cubic measure

35m

Hug floodgate diameter

260mm

Hug floodgate belt width

70mm

Distance between drill and hole

400mm

Power

Diesel engine

s1110 Model, 20HP

Electric Motor

Y160M—4 ,15kw 1440r/min

Mud pump

Type

Horizontal single urn twin-action

Displacement

170L/min

Maximum pressure

3.0Mpa

Work pressure

1.5Mpa

Water inlet caliber

40mm

Water to exit caliber

30mm

Triangle conveyer belt

B1728mm

Hydraulic pump

specification

CBT—F—314

Triangle conveyer belt

B1100×1

Application

Geology general check exploration, Earth physics exploration, sampling test in mining, water Well, Blast opening etc drilling engineering
