Excellent performance,rock killer ,HF-4T hydraulic core drilling rig
1. Application of HF series hydraulic core drilling rig
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
2. technical parameters about hydraulic core drilling rig
I. Features and Advantages

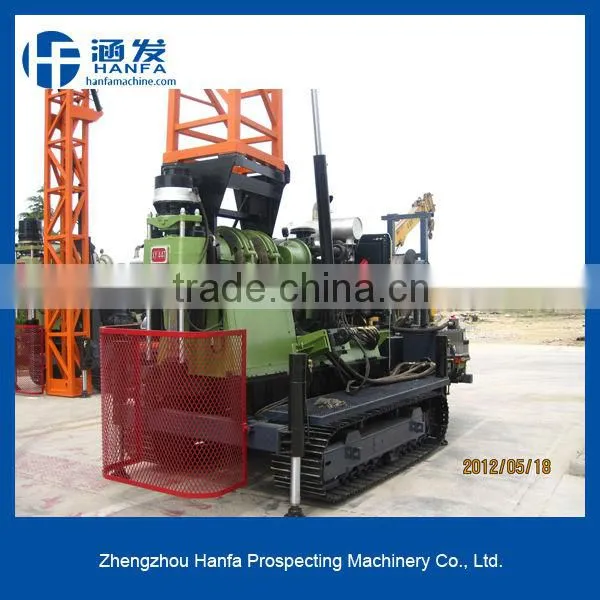

The HF-4T core drill rig, integrated rig with tower into one unit, consists of HF-4 drill rig and mast-type drill tower, with the function of hydraulic lifting and lowering of tower. The rig is simple in structure, reasonable in design, light in weight, easy to operate; it is in a wide range adjusting angle. It is especially suitable for drilling of hole with great slope angle.
The tower body of HF-4T Drill Rig is used as lifting drill tools for drilling vertical as well as inclined holes. The range of adjusting angels (in clock-wise direction) for drilling inclined holes is 0°-90°.
Main Components
The drill tower consists of base, tower body, crownblock (pulley mechanism), platform and auxiliary support.
Main Characteristics
The drill tower is pyramid-mast type. Being light in overall weight, single component being light and limited in disassembly quantity, the tower is convenient for transportation and installation. The tower has its own crownblock convenient for ground installation. When the rig is moved back during operation, the tower can be inclined to make up the moved-back distance so as to guarantee the central line between the centers of the hole and pulley. The tower can be adjusted in clock-wise direction for drilling inclined holes. The adjustment is convenient for making and wide in adjusting range. It is suitable for drilling large-angle hole.
2. The technical parameters
Specifications
|
Drilling Depth |
700—1000 m (2296-3280 feet) |
|
Max. Torque |
2.64 KN·m (1946 lbf·ft) |
|
Spindle Stroke |
600 mm (23.6 inch) |
|
I.D of Spindle |
68 mm (2.68 inch) |
|
Max. Lifting Capacity of Spindle |
80 KN (17984 lbf) |
|
Max. Pressure Force of Spindle |
60 KN (13488 lbf) |
|
Max. Hoisting Force |
30 KN (6744 lbf) |
|
Engine Power |
|
core drilling rig drill tower technical data
|
The Nominal Height of Tower |
10 m (32.8 feet) |
|
The Nominal Area of Base |
4×4 m (13.1×13.1 feet) |
|
The Number of Pulleys |
3 or 5 pcs |
|
Max. Load of Mast |
100 KN(22480 lbf) |
|
The Load of Movable Work Platform |
80Kg (176.4 lb) |
|
Adjusted Angles of Drill Tower |
45°-90° |
3,Designs of HF series hydraulic core drilling rig
Innovation is the key to our success: During these years, we continually make new designs on our products to
make them easier for clients to use.
Hydraulic chuck: It is designed to save the trouble from ball chuck.
Slide: It is designed to move the machine backward or forward when you need to lift/change the drill rod or adjust
the drilling position.
Trailer: 2-wheel, 4-wheel, 6-wheel. It is designed to move the drilling rig with tractors or such pulling devices.
Truck mounted: Easy to move and operate, they are also with hydraulic systems.
Crawler: Self-propelled, able to clime, suitable for complex terrains.
Hydraulic system: Tower and support. It is designed to decrease labor cost; two men are more than enough
to operate the drilling rig with hydraulic system.
Digital control: Multiple data display, easy controlling and monitoring, very convenient and efficient for
geological study.
4. Production ability( hydraulic core drilling rig )
We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client’s recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
5. Customers( hydraulic core drilling rig )
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.
6. Packing( hydraulic core drilling rig )
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
7. Quality guarantee( hydraulic core drilling rig )
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
