Specifications

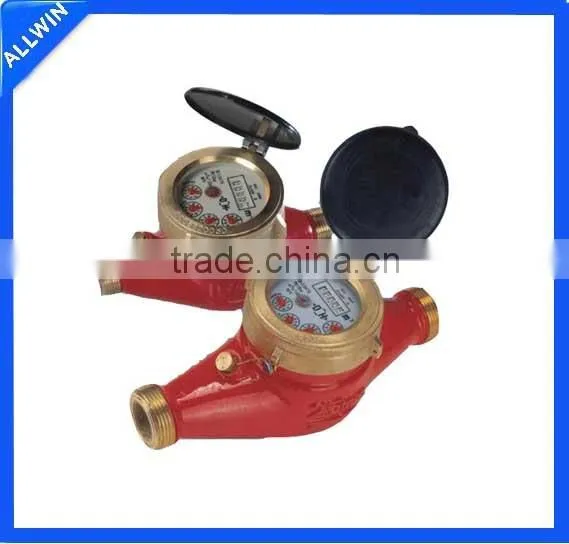

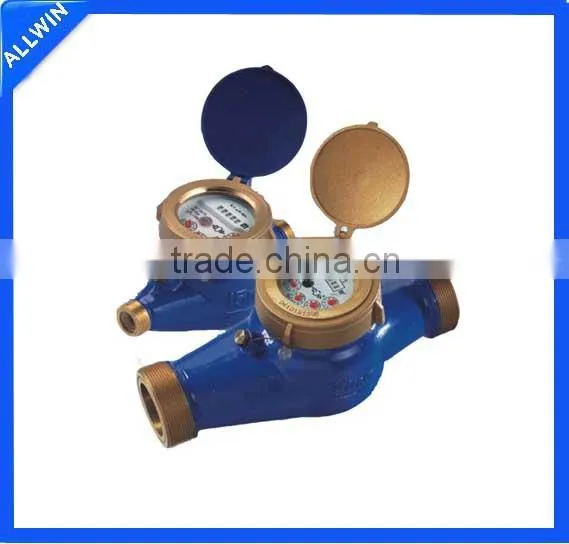

Residential/Commercial Water Meters1. Multi-jet impeller meters, totalizer only
2. brass body, epoxy coating
3. Size DN15-50
Residential/Commercial Water Meters
APPLICATION:
The range of water meter is used for family or a resident's measuring the gross number of
drinking water which flow through the water pipe.
FEATURES:
--Multi-jet, Rotary vane wheel dry type
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a
long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.
WORKING CONDITION:
Water temperature: ≤40°C Water pressure: ≤1.0MPa (1.6MPa for option)
COMPLIANCE WITH STANDARD: ISO 4064 (GB/T778-1996)
Maximum permissible error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.
(2) in the upper zone from qt inclusive up to and including qs is ±2%;

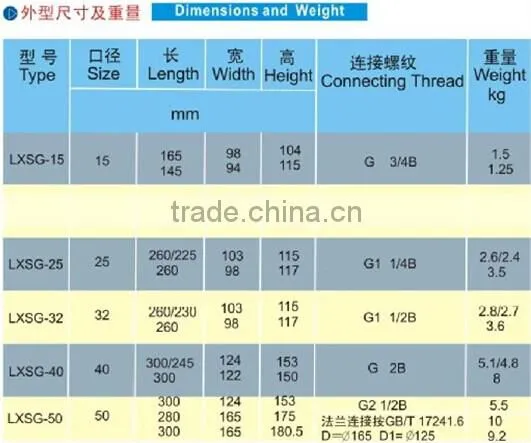

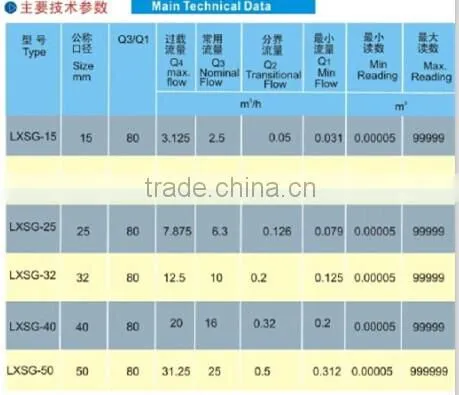

Technical Data
More models for your Choice
If you are interested in the water meter, please feel free to contact us!
