Specifications
Flanged Woltman Type Water Meter1, Dry-dial, Detachable.
2,Digital Water Flow Meter
3,Conform to Class B, ISO4064

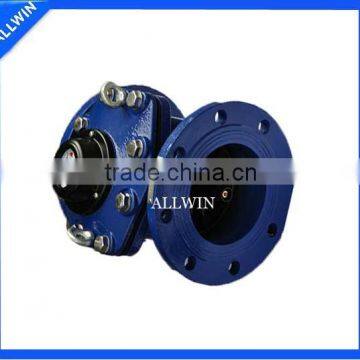

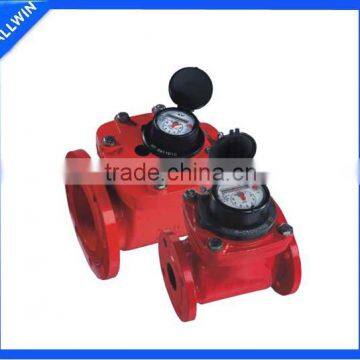

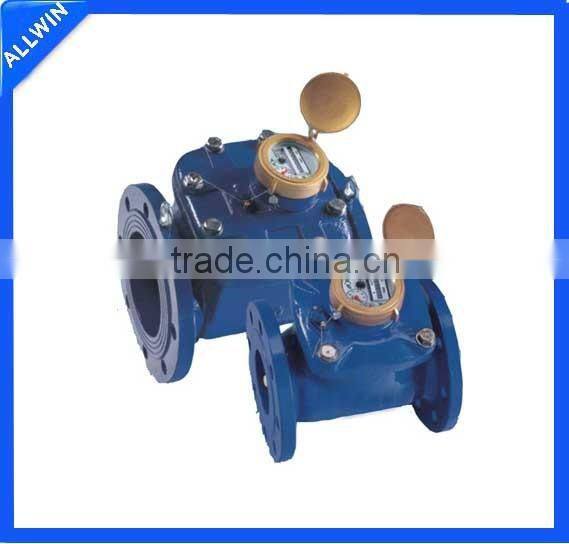

Flanged Woltman Type Water Meter
APPLICATION:
The range of water meter is used to measure the total quantity of cold/hot water which was
consumed in industrial and mining enterprise passing through the pipeline.
FEATURES:
--Removable element structure, easy installation and maintenance, register for universal use
within this range detachable without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a
long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.
WORKING CONDITION:
Water temperature: ≤40°C Water pressure: ≤1.0MPa (1.6MPa for option)
COMPLIANCE WITH STANDARD: ISO 4064 (GB/T778-1996)
Maximum permissible error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.
(2) in the upper zone from qt inclusive up to and including qs is ±2%;
Dimensions
If you are interested in the water meter, please feel free to contact us!
