Innovative design sand washing plant,sand washer machine

Specifications

1.High washing degree,durable
2.Stable operation,easy to maintain
3.Factory price

1.sand washer machine introduction

Our XS series sand washing machine is depending on the practice in sand and stone production ,and absorbing the leading technology in home and abroad,and is widely used in sand making industry.It is of high efficiency and has the features of reasonable structure,high capacity and low consumption.It can make final products free from dirt and impurities and reduce the high quality sand loss.It is on behalf of the new technique compared with the same equipment in other companies.

2. The sand washer machine working principle

Electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.



Model	XS2000	XS2600	XS2800	XS3200	XS3600
Capacity (t/h)	8-40	20-100	30-150	100-280	130-460
Sand return amount (t/h)	3-8	5-15	8-20	15-40	30-60
Power (kw)	4	5.5	7.5	11	15
Weight (kg)	1900	3500	5100	8800	14200

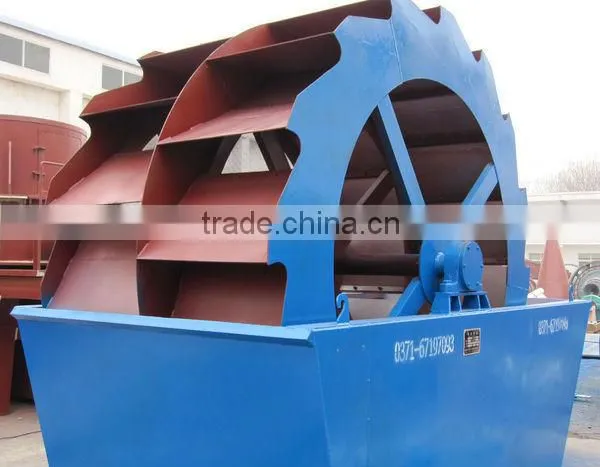

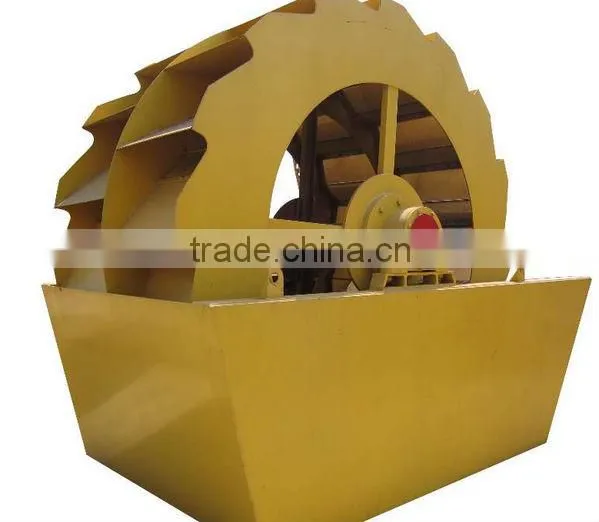

  5. Product show





  6.Our certificate and honor

       Looking forward to hearing from you and welcome to visit our factory!
