River Stone Washing Machine/stone Cleaning Machine
US$ 500 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao/shanghai/tianjin/guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rotary Stone Washer Machine for SaleUS$ 20 - 30,000MOQ: 1 Set -
China Professional Mining Machinery Equipment Manufacturer 2014 New Small Rotary Sand Stone Washer PriceUS$ 20 - 30,000MOQ: 1 Set
-
Mini Cylinder Stone Scrubber/lab Cylinder Stone Scrubber/small Cylinder Stone ScrubberUS$ 20 - 30,000MOQ: 1 Set
-
2042 Roller Stone Washer/Small Rotary Stone Washing Machine PriceUS$ 20 - 30,000MOQ: 1 Set
-
Mining Mini Wheel Sand Washing Machinery With Reasonable PriceUS$ 1,000 - 20,000MOQ: 1 Set
Condition
New
Motor Type
AC Motor
Place of Origin
China
Brand Name
HUAHONG
Certification
ISO&CE
Warranty
3 years
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Three functions:cleaning,dewatering and grading.2. Cleaning and upward conveying at the same time.
3. Low water cost

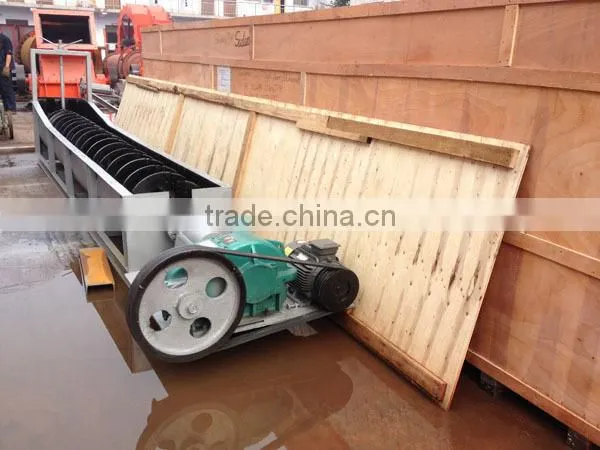

River stone washing machine/stone cleaning machine
stone washer machine working with ore mills to form close circulation in the concentrating plant,whose classification process depends on the sedimentation velocity of the particles. stone washer external appearance is a rectangular oblique chute, whose bottom is semi-circular.There is 1 or 2 vertical axles installed in the chute, spiral blades are installed along the axle one after another.
Technical parameter:
Model |
Spiral diameter(mm) |
Trough length(mm) |
Spiral rotation speed(r/min) |
Capacity(t/d) |
Power(kw) |
Weight
(t)
|
||
Return sand |
Overflow |
Driving |
Flifting |
|||||
FG7.5 |
750 |
5500 |
6-10 |
340-570 |
65 |
3.0 |
Manual |
2.7 |
FG10 |
1000 |
6500 |
5.0-8.0 |
675-1080 |
110 |
5.5 |
Manual |
4.43 |
FG12 |
1200 |
6500 |
5.0-8.0 |
1170-1870 |
155 |
5.5 |
1.5 |
8.7 |
FG15 |
1500 |
8400 |
4.0-6.0 |
1830-2740 |
235 |
7.5 |
2.2 |
12.5 |
FG20 |
2000 |
8400 |
4.0-6.0 |
3240-5400 |
400 |
11 |
2.8 |
20.5 |
FG24 |
2400 |
9210 |
3.6 |
4650-7450 |
580 |
15 |
3.0 |
25.6 |
FG30 |
3000 |
1250 |
3.2 |
11625 |
890 |
22 |
4.0 |
37.7 |
2FG12 |
1200 |
6500 |
5.0-8.0 |
2340-3740 |
310 |
5.5x2 |
1.5x2 |
14.0 |
2FG15 |
1500 |
8400 |
4-6.0 |
3660-5480 |
470 |
7.5x2 |
1.5x2 |
21.1 |
2FG20 |
2000 |
8400 |
3.0-5.5 |
7780-11880 |
800 |
11x2 |
2.8x2 |
36.5 |
2FG24 |
2400 |
9210 |
3.6 |
13600 |
1160 |
15x2 |
3x2 |
46.8 |
2FG30 |
3000 |
12500 |
2.0-3.2 |
14600-23400 |
1785 |
22x2 |
4x2 |
73.0 |
Single stone washer machine:

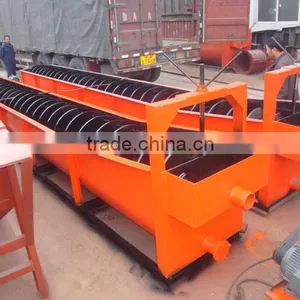

Double screw classifier:
