Specifications
1.High capacity2.High efficiency
3.Long lifetime
4.Sand washing in high efficient

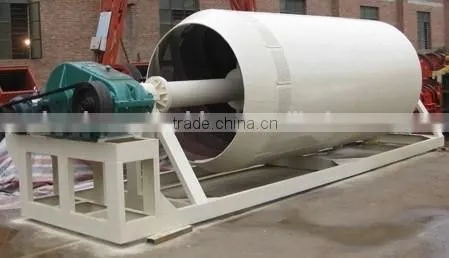

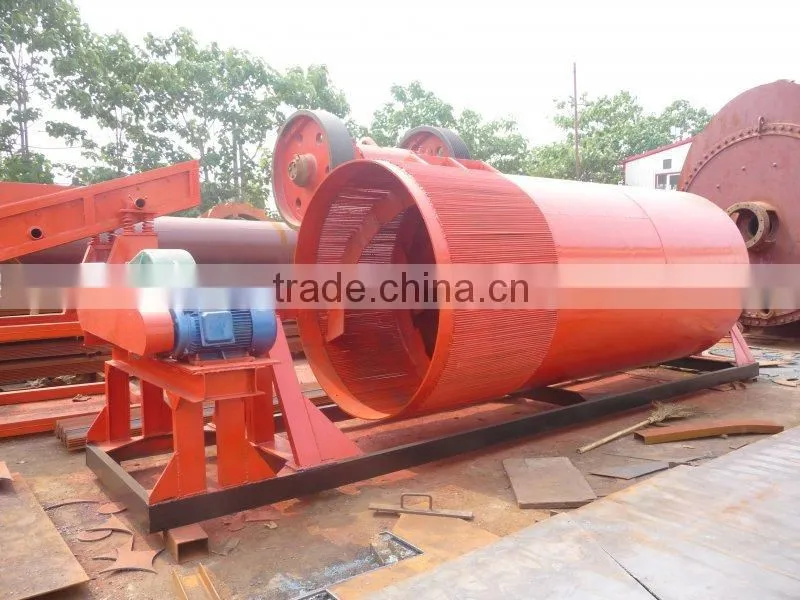

Mini cylinder stone scrubber/lab cylinder stone scrubber/small cylinder stone scrubber
Description of drum stone washing machine :
stone washing machine is a main equipment for washing stone and sand.this stone washer is aspecial equipemtn used for cleaning the sand and stone materials in highway,reilway,bridge ,tunnel construction industries,it is more flexible ,productive.and energy-saving with higher cleaning ration than other similar products in domestic.
Characteristics of drum stone washing machine :
1.Reasonable structure, easy maintenance, high output, low energy consumption, high cleaning rate
2.novelty cloth structure, brand-new transsmission device, adjustable sink
3.efficient, wearing, and of good hydrate effect, steady final product.
The electric motor drives the drum sieve to rotate after reducing speed through V-belt, gear box, gear wheel. The stone loader is put into the hopper and rolls along with the drum sieve and the stones are grinded mutually. In this process, the impurity on the surface of the stone are removed. Meanwhile, water will be added and forms a strong water flow, which will take the impurities and light foreign matters. The dry stones will be carried to the yard by conveyors.
Specification |
1542 |
1842 |
2042 |
Cylinder diameter |
1500 |
1800 |
2000 |
Cylinder length(mm) |
4200 |
4200 |
4200 |
Screw speed(r/min) |
10-13 |
10-12 |
9-11 |
Feed size(mm) |
60 |
80 |
110 |
Capacity(t/h) |
40-60 |
60-80 |
100-150 |
Motor power(kw) |
15 |
18.5 |
22 |
Weight(t) |
6.8 |
11.8 |
18.6 |
Overall dimension(m) |
6.5*1.75*1.8 |
7.5*2.1*2.6 |
8.8*2.2*2.9 |
