Specifications
wheel sand washing machine1.Wear-resisting,
2.Simple Opeation,
3.Worthy Quanlity,
4.Good Price.
wholesale performance high quality wheel sand washer machine for mining
wheel sand washer Machine:
wheel sand washing machine is a high-efficiency sand washing equipment adopting wheel-like structure, which works with sand making machine. It can wash the stone powder and impurity from the mixed sand that made by sand making machine, which can improve the sand quality. Sand washer is widely used in washing, grading and dehydrating in the industry of stone factories, construction site and quartz sand in glass factory.
XSD Series Sand washer is used for sand washing, separating, and cleaning in the construction of high speed road, high speed railway, hydroelectric project, public works and so on.
Wheel Sand Washer Machine Features:
1. High efficiency, reasonable structure, high capacity and low consumption
2. The bearing device of impeller drive is separated from water and materials in water, which greatly protects the bearing from soaking, sand and pollutants.
3. Compared with the spiral sand washing machine, the loss of medium and fine sand and powder is minimized, and the grade and fineness can meet the required standard
4. Sand Washing Machine is with long service life and low maintenance costs.

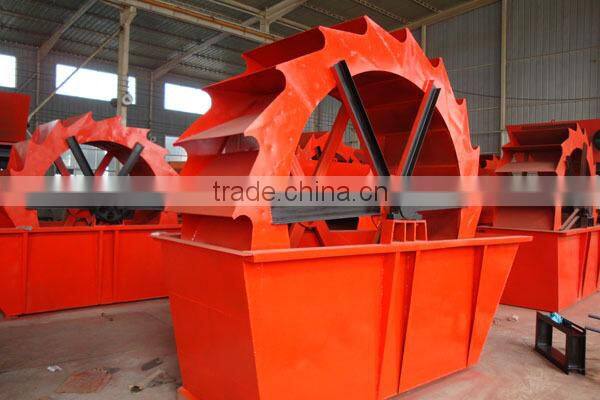

Pictures of wheel sand washer machine:

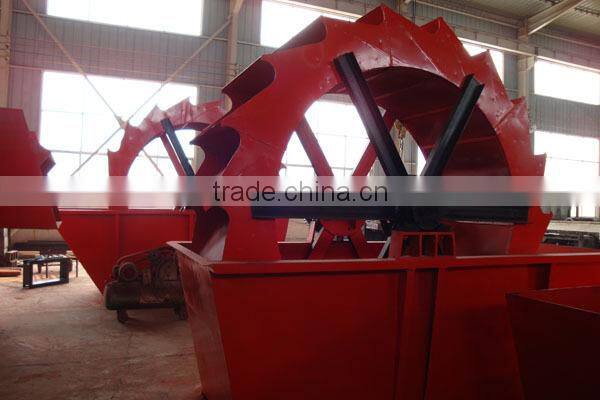

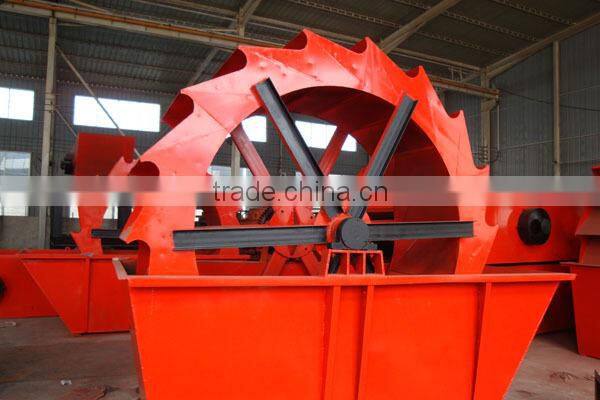

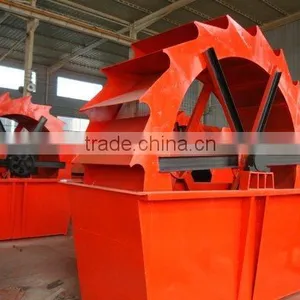

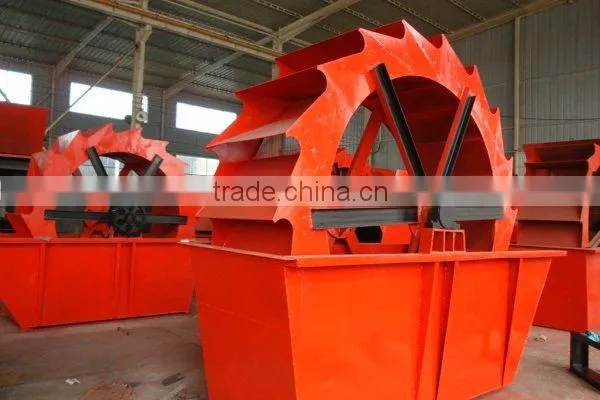

No paint wheel sand washer machine in our workshop:

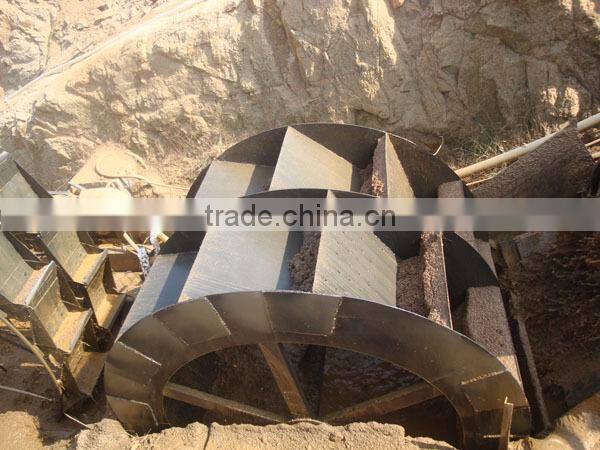

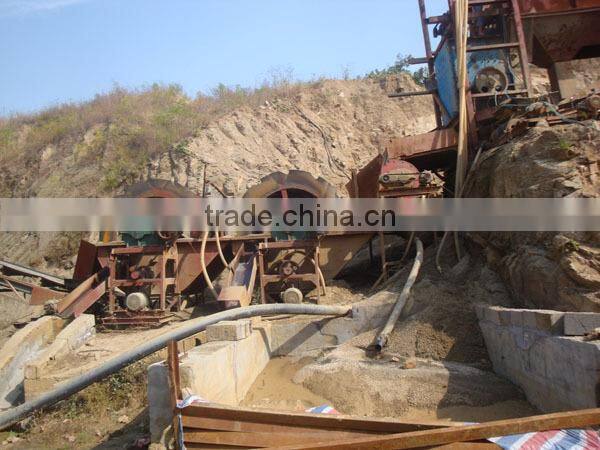

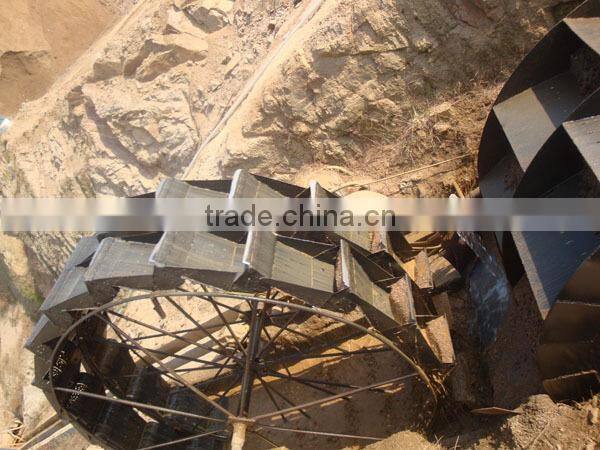

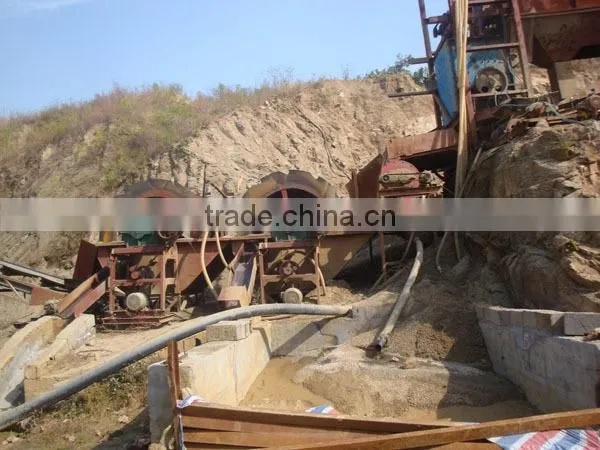

Scence of wheel sand washing machine:
Working principle of wheel sand washer machine:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary
impellor to finish the washing task.
Wheel sand washer main technical parameter:
Specification |
XS2006 |
XS3200 |
XS3600 |
Bucket diameter (mm) |
2060 |
3200 |
3600 |
Speed (r/min) |
0.8-1.2 |
0.8-1.2 |
0.8-1.2 |
Handling capacity (t/h) |
20-80 |
240-150 |
280-400 |
Return to the sand(t/h) |
5-20 |
100-150 |
140-200 |
Motor (kw) |
5.5 |
11 |
15 |
Weight (kg) |
2400 |
11400 |
16720 |
Note: This specification is just reference, any changes are subject to the products.

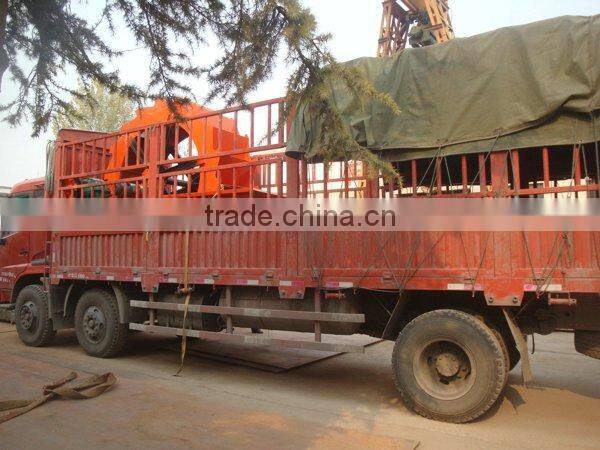

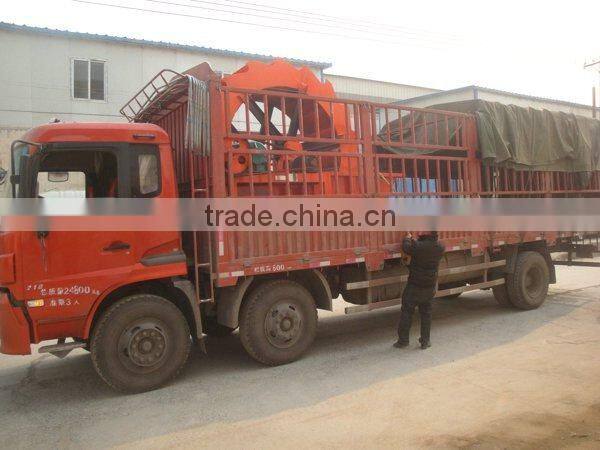

Deliery of wheel sand washer machine:
Price Negotiation:
Sure, we are factory and be able to offer you lowest price below market one, and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any client, and discount can be given according to quantity”.
After-sale Service:
1. Setting up customer records, knowing well the location and running state of the sold equipment, return visit time and contact information; Dispatching professional after-sales service staff to the site to help customers install and adjust equipment. 12 technicians are needed to assist customers in site-manufacturing for 1 month until customers are satisfied.
2. Keeping a record of the daily information from hot-line and its handling.Announcing the customers whose equipments have been over warranty period in time; Informing them of the maintaining details at regular intervals.
3. As to customer complaints out of noquality reasons, customer managers should work with aftersales staff to analyse and explain problems caused by personal factors, make up and restore the damaged parts, implement operation guiding and training among customers' operators.
Why Choose Us?
We are the sand washer manufactory;
Strictly quality control system;
Professional technical online service;
Any mail or message will be replied within 8 hours;
Completive manufactory price;
We have many large ore dressing line;
We will provide equipment operation training for our client;
We have a professional after-sale service team to promptly solve your problems.
Welcome to visit our factory !
Factory Information
Zhengzhou Huahong Machinery Equipment Co.,ltd
Address:Southward 150 meters away from the intersection of Chemical Road and Changchun Road, Zhengzhou High-tech Industrial Development Zone, Henan, China.
Contact:Kama Wang
Skype:huahongmachine07
