Lowest Price High Efficiency of Small Jaw Crusher

Lowest Price High Efficiency of Small Jaw Crusher thumbnail-1
Lowest Price High Efficiency of Small Jaw Crusher thumbnail-2
Lowest Price High Efficiency of Small Jaw Crusher thumbnail-3
Lowest Price High Efficiency of Small Jaw Crusher thumbnail-4
Lowest Price High Efficiency of Small Jaw Crusher photo-1

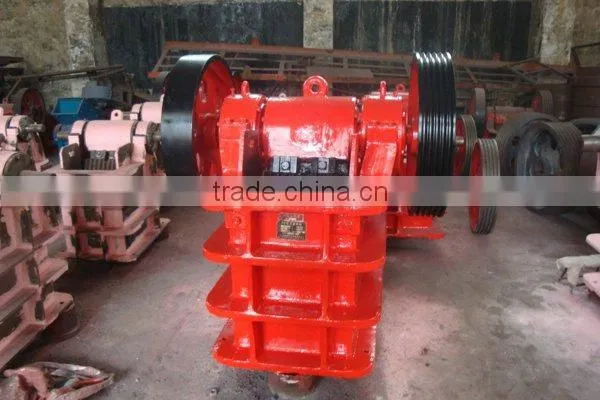

Lowest Price High Efficiency of Small Jaw Crusher photo-2

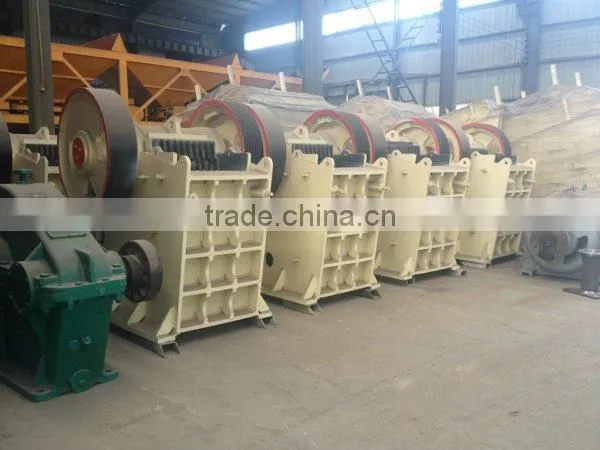

Lowest Price High Efficiency of Small Jaw Crusher photo-3

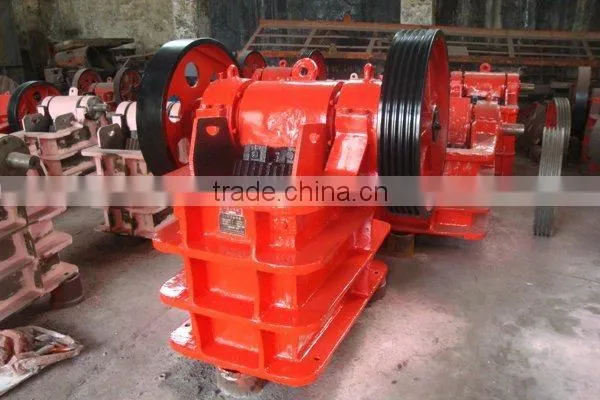

Lowest Price High Efficiency of Small Jaw Crusher photo-4
US$ 1,000 - 10,569 MOQ: 1 Case
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
Mine/stone/ore/rock/gold
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOBqingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Jaw Crusher
Application Mine/stone/ore/rock/gold
Motor Type AC Motor
Power(W) 30 kw
Capacity(t/h) 16-60
Place of Origin Henan, China
Brand Name huahong
Model Number PEseries
Dimension(L*W*H) depend on product
Weight 500kg
Certification ISO 9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

  Application of jaw crusher specifications

The Dongmeng Mining machinery jaw crusher is used in primary crushing for stones and bulk materials .It processes various

kinds of ore with compression strength not more than 320mp. It has been widely applied in area of is widely used in mining,

quarry,metallurgy, building, highway, railway, construction wastes processing,water conservancy and cement production,etc.

The jaw crusher is divided into the coarse jaw crusher and the fine jaw crusher, i.e. PE series and PEX series.

Characteristics and Advantage of  jaw crusher specifications



1.High reduction ratio and even final particles



2.Simple structure and easy to be maintained



3. Easy replacement of wearing and spare parts
4.Reliable operation and long service life
5.Convenient maintenance and low maintainance charges



6.Wide ranges of products series for jawcrusher for sale

Working principle of Mining machinery jaw crusher




The motor drives the eccentric shaft to rotate by the V-belt & the slot wheel, then the movable jaw moves back and forth to break

the materials in the crushing cavity which is composed of fixed jaw plate & movable jaw plate and side guard plate. When the

movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be broken to reach the

crushing target. When the movable jaw is moving down, the angle between the fixed jaw and movable jaw becomes smaller.

the end products slide from the discharge opening at the bottom of the jawcrusher for sale

Technical Parameters

Model Feed opening
size
(mm)		 Max
feed
size(mm)		 Adjustable
range
(mm)		 Capacity
(t/h)		 Eccentric shaft
rotary speed
(r/min)		 Motor
power
(kw)		 Total weight
(t)		 Overall dimensions
(L*W*H)(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 90-110 29 2660×2430×2800
PE-800×1060 800×1060 640 160-220 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-300 400-800 180 160 100.9 4200×3300×3500
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600



 lowest price high efficiency of small jaw crusherlowest price high efficiency of small jaw crusherlowest price high efficiency of small jaw crusherlowest price high efficiency of small jaw crusherlowest price high efficiency of small jaw crusherlowest price high efficiency of small jaw crusherlowest price high efficiency of small jaw crusher
