ZZ Huahong Sand Making Production Plant/sand Making Plant

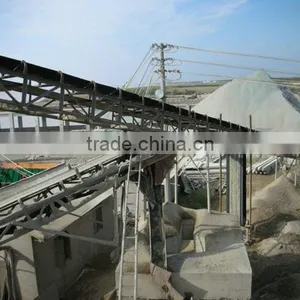

ZZ Huahong Sand Making Production Plant/sand Making Plant photo-1
US$ 200 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, sand making machine
Application:
sand,stone, cement,pebble,quartz..
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai tianjin guangdong
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, sand making machine
Application sand,stone, cement,pebble,quartz..
Motor Type AC Motor
Power(W) 45-55kw
Capacity(t/h) 45-75
Place of Origin Henan, China
Brand Name HUAHONG
Model Number 1010X1010
Certification ISO&CE
Warranty 2years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

sand plant
1.High-efficiency
2.ISO9001:2008&SGS certified
3.Low energy consumption





ZZ Huahong sand making production plant/sand making plant





Sand Making Production Line (whole set)  - Introduction



This production line is composed of feeder machine, jaw crusher, counter-attack crusher, "Stone strike stone" sand making machine, vibrating screen, sand washer, belt conveyor, centralized electric control and so on. In order to meet the different needs of customer, it can be equipped with a complete set of cone crusher, the dust removal equipment and so on. The production line can be used in many kinds of materials like limestone, granite, basalt, river stone, cobblestone, the gangue and manual sand making work. It is applied to the water and electricity, building, building materials, highway, urban construction.



Sand Making Production Line  - Working principle



The material (limestone, granite, basalt, gneiss, river stone, cobblestone) will be fed into the jaw crusher to be crushed preliminarily. The material after be thickly crushed preliminarily will be transported to the counter-attack crusher to be crushed further by the belt conveyor. The stone material after be crushed twice will be transported to "Stone strike stone" sand making machine to be crushed once more. The crushed stone material will be screened out the different specification by the vibrating screen through the belt conveyor. The qualified finished product will be transported to the finished product storehouse by the belt conveyor and the unqualified stone returns to the "Stone strike stone" sand making machine through the belt conveyer to be crushed once more. It can form the close circulated crushing.



Sand Making Production Line - Performance Features



1.High automatic

2.Low consumption
3.Fine and even

4.Low cost
5.Low pollution



This production line has the high automatization, high efficiency production, low cost, energy conservation, low pollution, the finished product granularity even, good grain size which conform to the National high speed materials requirement. This selection of equipment of the production line is mainly decided by the specification, output and the customer request. We can provide the customer with the comprehensive technical process and technical support also may design the non-standard parts and so on according to the installment condition of the site.



If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials,feeding size, you required output size,capacity and other special requirement.Our engineer will choose the optimum type and our saleman will send you the resonable price.





model
Feeder Opening
mm
Feeding
Size
mm
Output size
mm
Output size
mm
Capacity t/h
Motor
(kw)
Clinker
limestone
Siliceous sand
800×400
400×185
120
≤5
5-20
20-30
30-45
35-45
22-37
800×600
500×250
180
≤5
5-20
35-40
40-55
45-55
37-45
800×800
550×330
180
≤5
5-20
35-45
60-65
55-65
37-45
1010×1010
1000×350
180
≤5
5-20
45-55
60-75
65-75
45-55
1200×1000
1200×400
180
≤5
5-20
80-110
80-100
80-100
90-110
1200×1200
1200×450
180
≤5
5-20
100-110
90-100
90-120
110-132
1400×1400
1500×500
190
≤5
5-20
100-150
100-150
120-150
160
1600×1600
1600×550
190
≤5
5-20
170-210
190-250
190-250
250
1800×1800
1800×800
190
≤5
5-20
250-270
280-310
280-310
280







ZZ Huahong sand making production plant/sand making plant





ZZ Huahong sand making production plant/sand making plant













ZZ Huahong sand making production plant/sand making plant



ZZ Huahong sand making production plant/sand making plant



ZZ Huahong sand making production plant/sand making plant

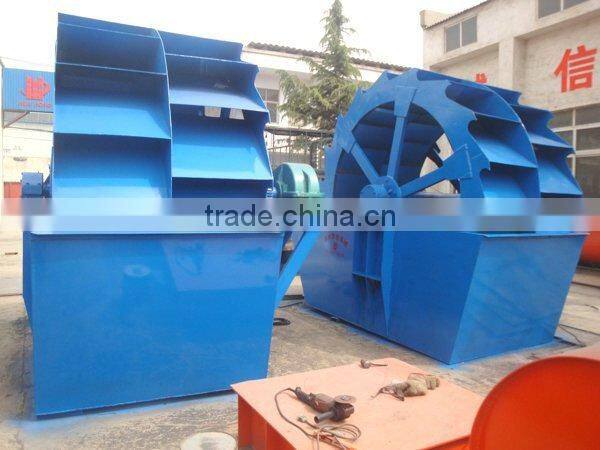

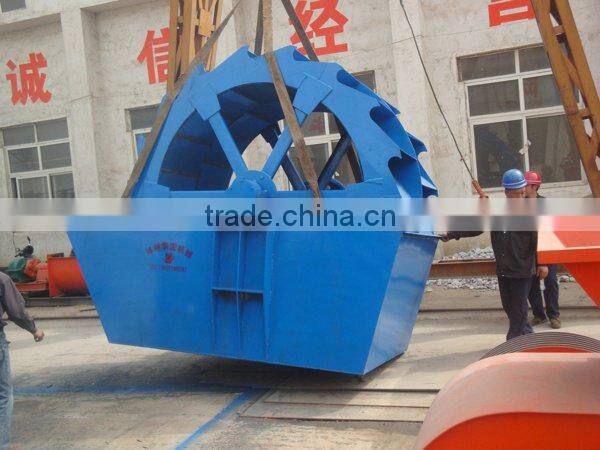

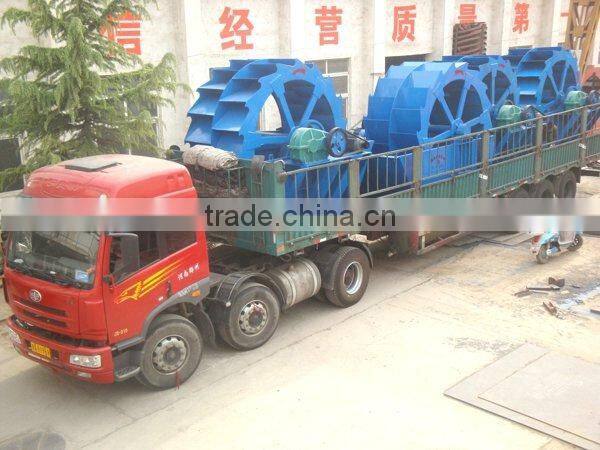

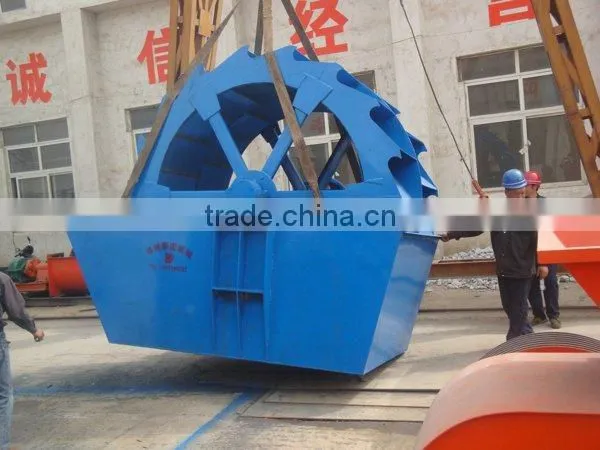

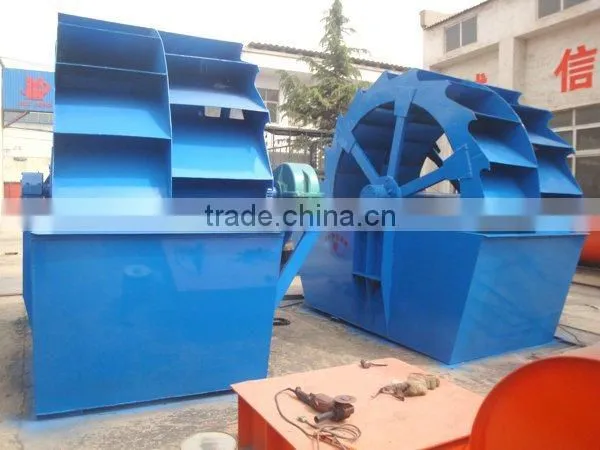

sand washing machine:



ZZ Huahong sand making production plant/sand making plantZZ Huahong sand making production plant/sand making plantZZ Huahong sand making production plant/sand making plant

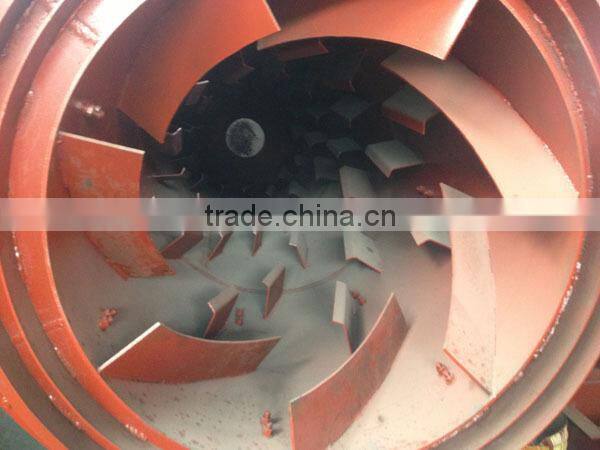

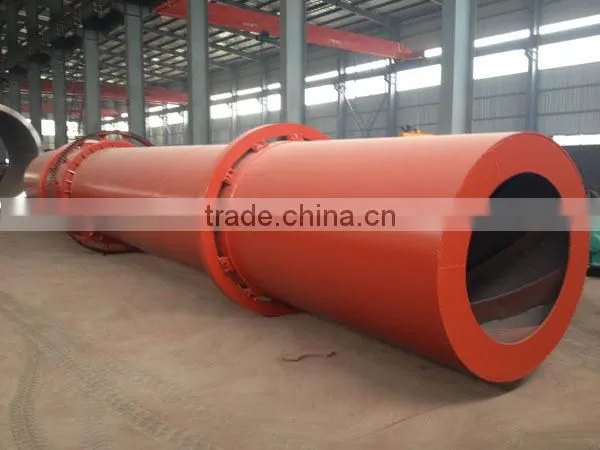

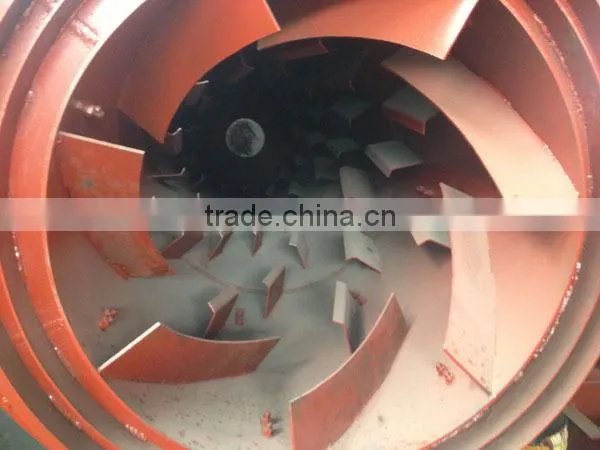

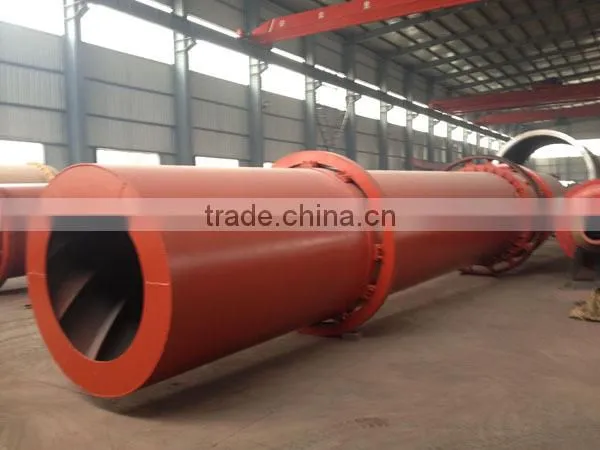

sand dryer:



ZZ Huahong sand making production plant/sand making plantZZ Huahong sand making production plant/sand making plantZZ Huahong sand making production plant/sand making plant

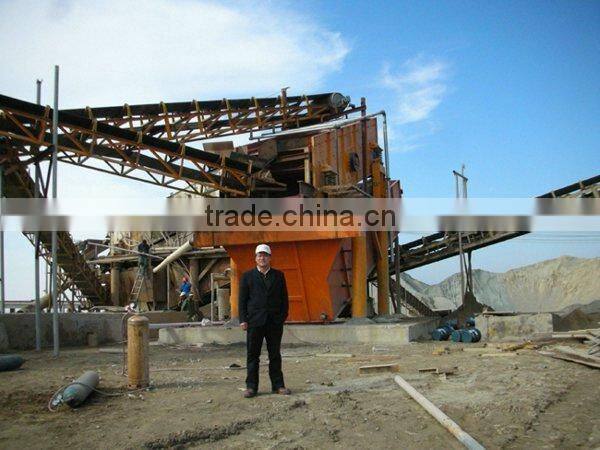

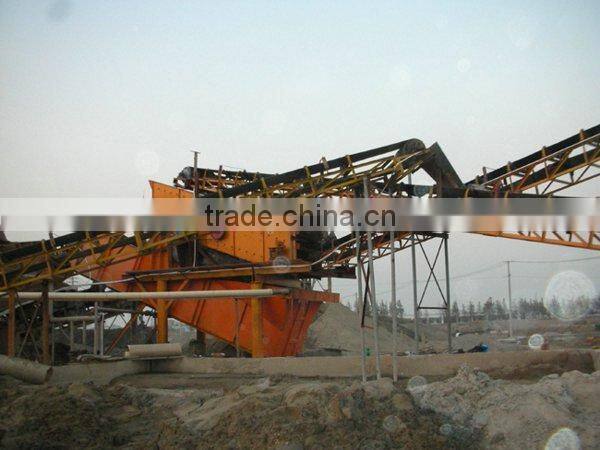

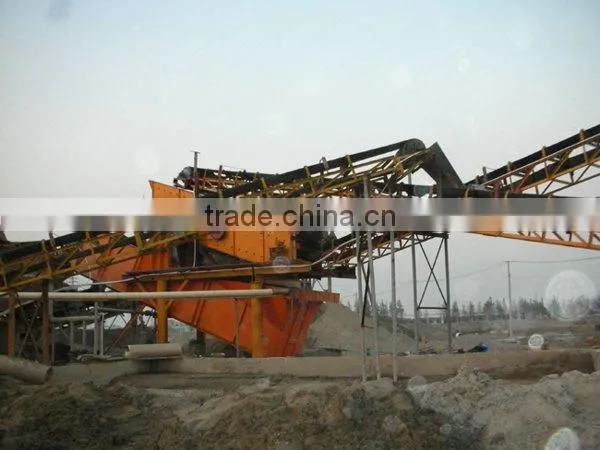

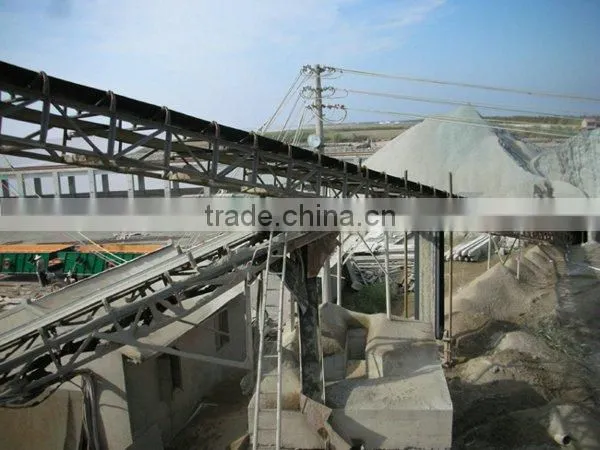

sand making complete production line:





ZZ Huahong sand making production plant/sand making plantZZ Huahong sand making production plant/sand making plantZZ Huahong sand making production plant/sand making plant
