Specifications
fine crusher1. Smooth running characteristics.
2. Advanced design.
3. High efficiency.

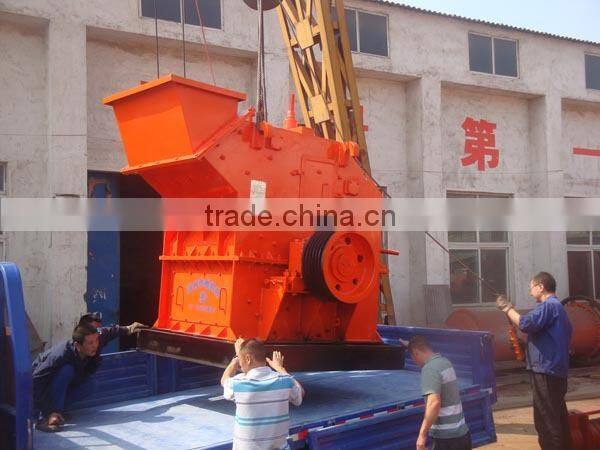

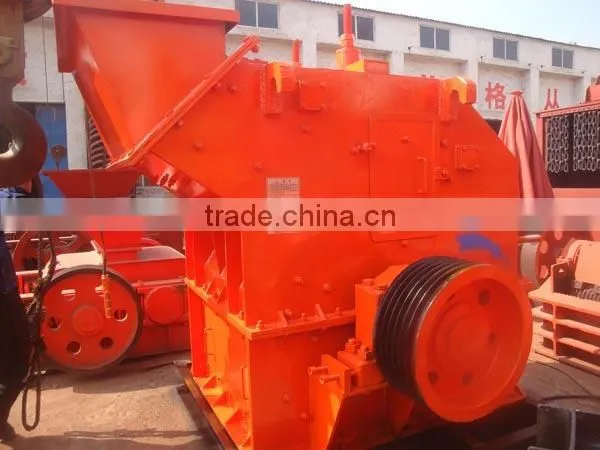

High efficiency fine crusher, fine crusher plant, sand maker for sale

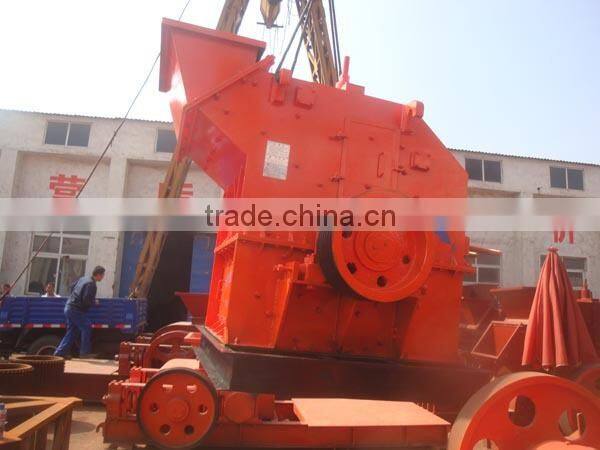

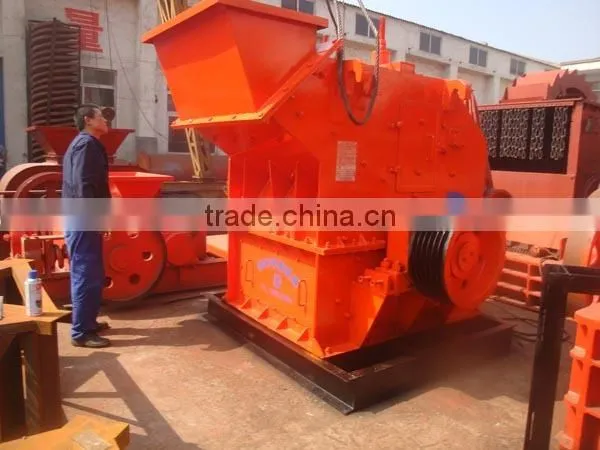

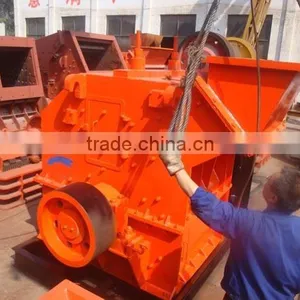

Fine crusher in our factory
The introduction of fine crusher, fine crusher plant, sand maker
Fine crusher is used for fine and second crushing,especially for grinding Quarts, steel grit, slag powder, copper ore, iron ore, gold ore, concrete aggregate, many kinds of hard, and brittle materials. It is more energy-saving, which can save 50% energy than traditional crushers. Fine crusher is also named efficiency fine crusher, which is widely used. Our fine crushers have reached the world-class level. It has the features of practical reliable crushering and grinding machine.
The working principle of fine crusher, fine crusher plant, sand maker
Crusher work when the fine crusher(sand maker) driven by the motor, the rotor high-speed rotation, the material into the crushing chamber crushing impact crusher and plate hammer on the rotor, and then enter the second crushing chamber to smash, and finally from the discharge port.
The features and benefits of fine crusher, fine crusher plant, sand maker
1. The reasonable multi-cavity crushing room combination, and the new convenient bitonality structure, can guarantee 85% material granularity size is below 5mm, the product granularity are fine and even;
2. This equipment investment is lower 35%-50% than the traditional process with same scale, but productivity is higher 35%-50%.and the cost of the long-term maintenance is lower 35%-50%.
3. Convenient maintenance installment makes the hammer and screen plate exchanged easily.
4. The worn parts mainly adopt the new high quality multi-element chromium alloy anti-friction material, guarantee the hammer and the plate have superior abrasion and impact resistance
5. Big capability, the hammer has long service life , low power of the necessary device, can change the three-level crushing into two-level crushing, simple craftwork and structure, easy maintance, steady operation, low dust and electricity consumption.
The technical datas of fine crusher, fine crusher plant, sand maker
|
Model
PXJ series
|
Feeder Opening
(mm)
|
Max Feeding
Size (mm)
|
Output size
(mm)
|
The width of the gap adjustment is expected(mm) |
Capacity (t/h) |
Motor
(kw)
|
||
Clinker |
limestone |
Siliceous sand |
||||||
800×400 |
400×185 |
120 |
≤5 |
5-20 |
20-30 |
30-45 |
35-45 |
22-37 |
800×600 |
500×250 |
180 |
≤5 |
5-20 |
35-40 |
40-55 |
45-55 |
37-45 |
800×800 |
550×330 |
180 |
≤5 |
5-20 |
35-45 |
60-65 |
55-65 |
37-45 |
1010×1010 |
1000×350 |
180 |
≤5 |
5-20 |
45-55 |
60-75 |
65-75 |
45-55 |
1200×1000 |
1200×400 |
180 |
≤5 |
5-20 |
80-110 |
80-100 |
80-100 |
90- 110 |
1200×1200 |
1200×450 |
180 |
≤5 |
5-20 |
100-110 |
90-100 |
90-120 |
110-132 |
1400×1400 |
1500×500 |
190 |
≤5 |
5-20 |
100-150 |
100-150 |
120-150 |
160 |
1600×1600 |
1600×550 |
190 |
≤5 |
5-20 |
170-210 |
190-250 |
190-250 |
250 |
1800×1800 |
1800×800 |
190 |
≤5 |
5-20 |
250-270 |
280-310 |
280-310 |
315 |

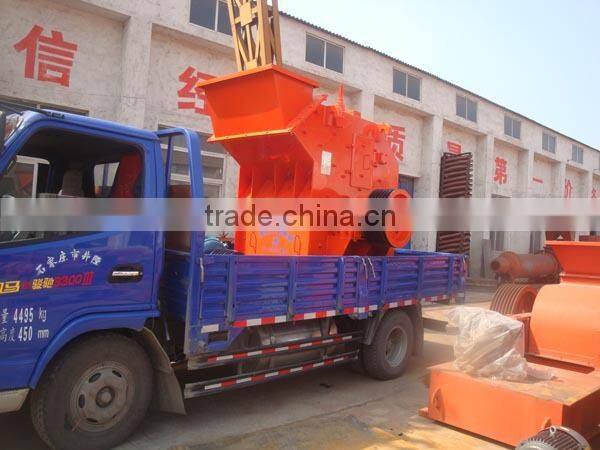

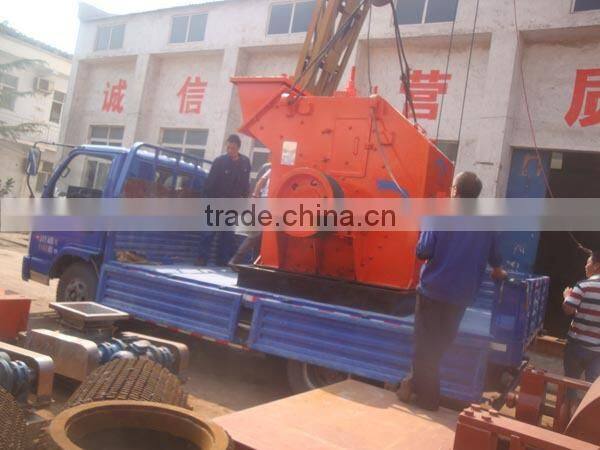

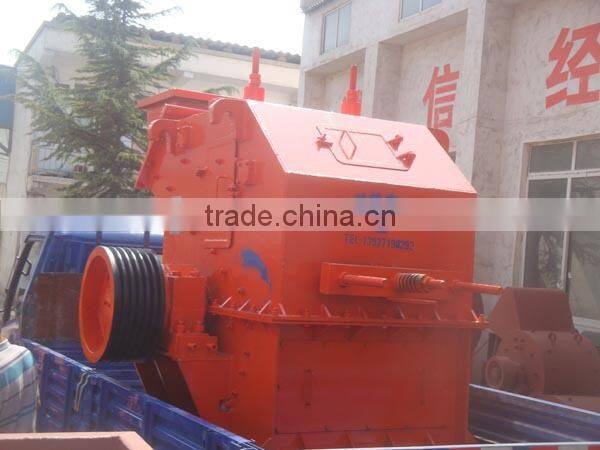

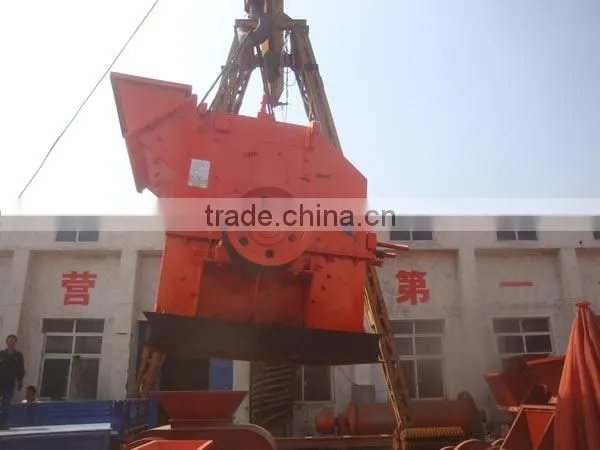

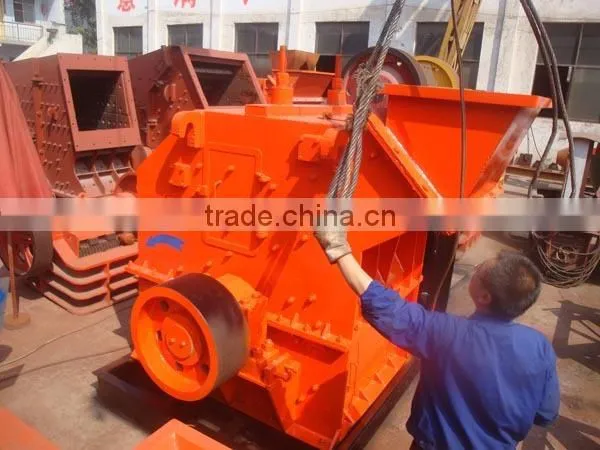

Delivery site
About us
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi~Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification, its annual output value of a billion dollars, Huahong has 10,000 square meters of heavy industrial plant more than 200 units of the seat, a variety of large and medium!~sized machining, riveting, assembly equipment, assembly maximum lifting capacity of 150 tons, Our main production include energy~saving crusher, new sand making machine, a full set of mineral processing equipment, milling flour milling machine, ball mill, a multi~purpose drying equipment, a fully automatic Mianshaozhuanji aerated concrete block equipment, and the supporting building materials equipment and other products, Huahong equipment cost~effective, reliable work, easy maintenance, low operating costs, widely used in mining Mining the field of building materials, railway and road bridges, coal, chemical industry, metallurgy, refractory materials, smelting works, has become a major production and export base of the domestic crusher and sand making machine manufacturing industry now!
About our services
(1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
