Specifications
counterattack crusher1.36 years manufacture experience
2.exported to over 30 countries
3.high quality and low price

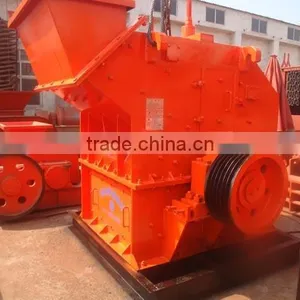

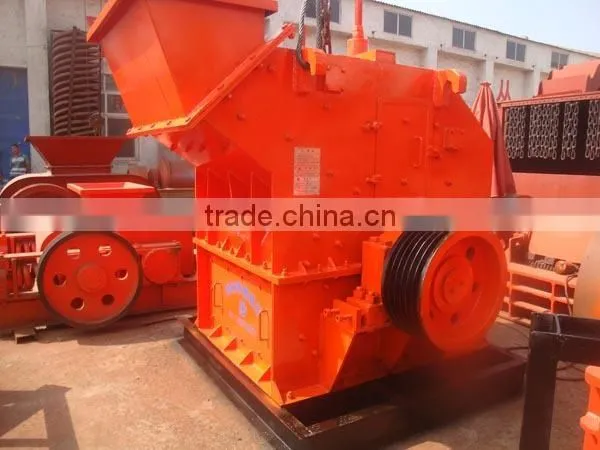

HUAHONG PXJ series counterattack crusher/ counterattack efficient crusher/sand making machine
PXJ series counterattack crusher introduction
The PXJ series counterattack crusher/counterattack efficient crushing machine, also known as the third generation sand making machine, the third generation of the Crusher.
This machine is widely used, its performance has reached international advanced level, is the most effective, practical and reliable gravel machine, especially suitable for the production of abrasives, refractory, cement, quartz sand, steel grit, slag powder, copper ore, a variety of hard iron ore, gold ore, concrete aggregate, asphalt aggregate, crushing of brittle materials in pieces, is a highly efficient, energy saving gravel sand making equipment, 50% energy saving than the traditional crushing machine, is the advanced Crusher equipment.
PXJ series counterattack crusher working principle
Crusher work when the fine crusher/fine aggregate crusher driven by the motor, the rotor high-speed rotation, the material into the crushing chamber crushing impact crusher and plate hammer on the rotor, and then enter the second crushing chamber to smash, and finally from the discharge port.
PXJ series counterattack crusher features
1. Super-fineness crushing capability: The new particle size adjusting mechanism guarantees 85% of the particles controlled within 3mm;
2. High-efficient and energy-saving: 40% power consumption reduced at equivalent output;
3. Extra long life: hammer heads are made of new type of high quality alloy materials with multiple elements and can be turned for use thus to prolong the service life by 4 times.
4. Great crushing ratio: incorporating Gr. I & Gr. II crushing for clinkers and Gr. II & Gr. III crushing for limestone into one step.
5. Easy Maintenance: The rear cover of the upper machine frame can be hydraulically (hand)-opened to make the maintenance much.
PXJ series counterattack crusher technical datas
|
Model
PXJ series
|
Feeder Opening
(mm)
|
Max Feeding
Size (mm)
|
Output size
(mm)
|
The width of the gap adjustment is expected(mm) |
Capacity (t/h) |
Motor
(kw)
|
||
Clinker |
limestone |
Siliceous sand |
||||||
800×400 |
400×185 |
120 |
≤5 |
5-20 |
20-30 |
30-45 |
35-45 |
22-37 |
800×600 |
500×250 |
180 |
≤5 |
5-20 |
35-40 |
40-55 |
45-55 |
37-45 |
800×800 |
550×330 |
180 |
≤5 |
5-20 |
35-45 |
60-65 |
55-65 |
37-45 |
1010×1010 |
1000×350 |
180 |
≤5 |
5-20 |
45-55 |
60-75 |
65-75 |
45-55 |
1200×1000 |
1200×400 |
180 |
≤5 |
5-20 |
80-110 |
80-100 |
80-100 |
90- 110 |
1200×1200 |
1200×450 |
180 |
≤5 |
5-20 |
100-110 |
90-100 |
90-120 |
110-132 |
1400×1400 |
1500×500 |
190 |
≤5 |
5-20 |
100-150 |
100-150 |
120-150 |
160 |
1600×1600 |
1600×550 |
190 |
≤5 |
5-20 |
170-210 |
190-250 |
190-250 |
250 |
1800×1800 |
1800×800 |
190 |
≤5 |
5-20 |
250-270 |
280-310 |
280-310 |
315 |

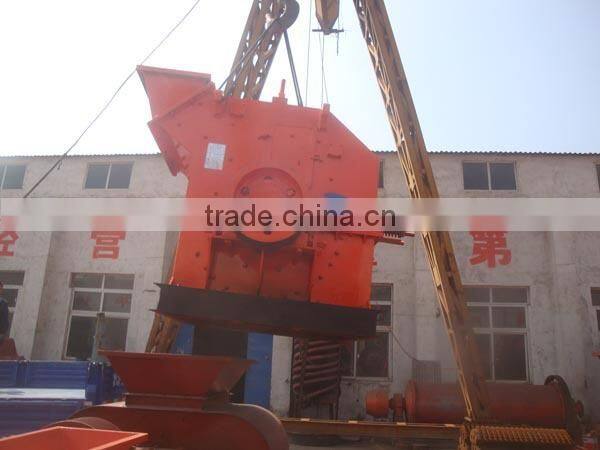

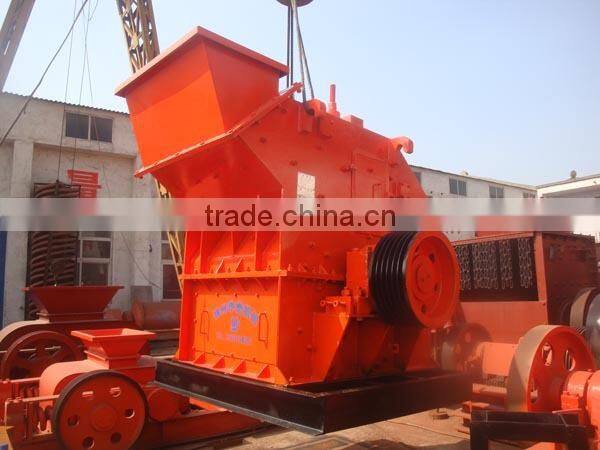

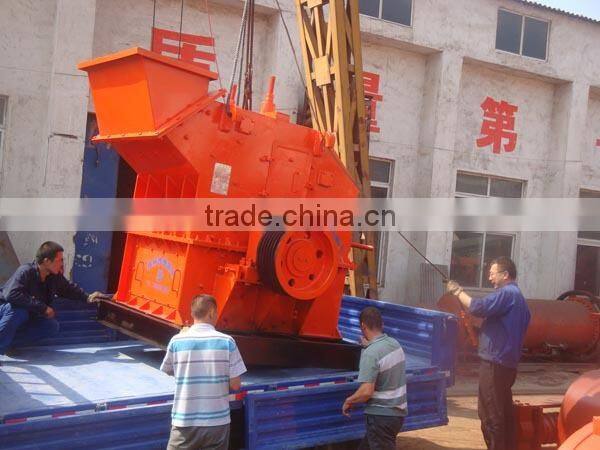

PXJ series counterattack crusher delivery site
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi~Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification, its annual output value of a billion dollars, Huahong has 10,000 square meters of heavy industrial plant more than 200 units of the seat, a variety of large and medium!~sized machining, riveting, assembly equipment, assembly maximum lifting capacity of 150 tons, Our main production include energy~saving crusher, new sand making machine, a full set of mineral processing equipment, milling flour milling machine, ball mill, a multi~purpose drying equipment, a fully automatic Mianshaozhuanji aerated concrete block equipment, and the supporting building materials equipment and other products, Huahong equipment cost~effective, reliable work, easy maintenance, low operating costs, widely used in mining Mining the field of building materials, railway and road bridges, coal, chemical industry, metallurgy, refractory materials, smelting works, has become a major production and export base of the domestic crusher and sand making machine manufacturing industry now!
(1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
Welcome to contact us!
My Skype: huahongmachine10
