Specifications
1. Low power consumption2. long working life
3. Powerful self-contained spiral lifting device

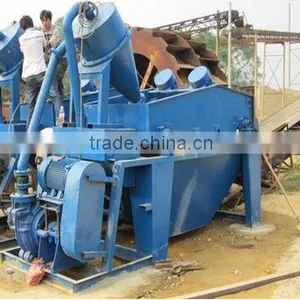

Introduction of fine sand recycling machine:
Sand recycling machine is designed by our company absorbing the world advanced technology, combined with
the actual working condition. It is widely used in aggregate processing system, glass factory, artificial sand
production line , environmental protection project, and mud purify.
Fine sand recycling machine features:
1, Reduce the fine sand erosion,solve the problem of fitness modulus too high and stone powder low.
2, Reduce the enviroment pollution, ease the drain trap.Maximum retrive 85% fine sand of the total tailings.
3,Reduce the prodcing cost and control the water of tailings.
4, Long working life, non-maintain for long term.
5, Inner the polyurethane, strengthen the whole device service life, it can smoothly finished the work of
condensing slime and clearing the liquid etc.
Fine sand recycling machine working principle:
Working process: The pump sends the sand and water mixture to cyclone, the fine sand with eccentricity is sent to vibrating screen. The fine sand and water are effectively separated after dehydration, and little fine sand and mud go back to washing trough.
When the liquid surface of the washing trough is high, the fine sand discharges from output opening. The linear vibrating screen can recover material with concentration 70%-85%, and fineness adjustable is achieved by changing pump rotation speed, changing mortar concentration, and adjusting overflow water yield

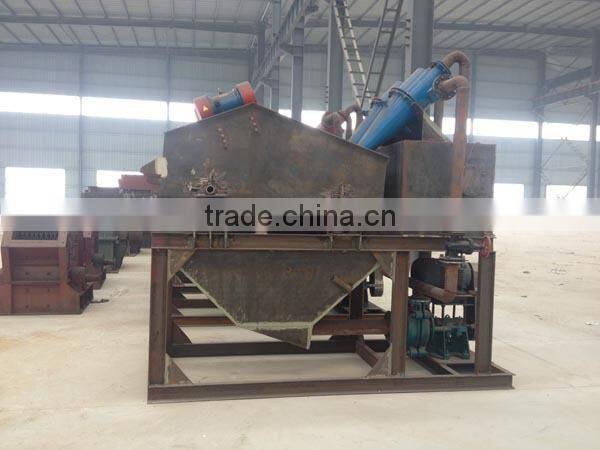

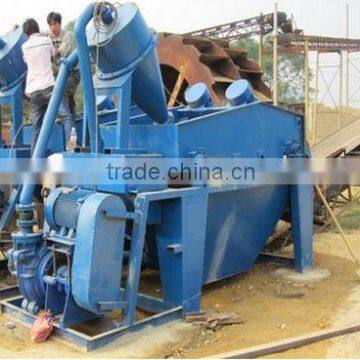

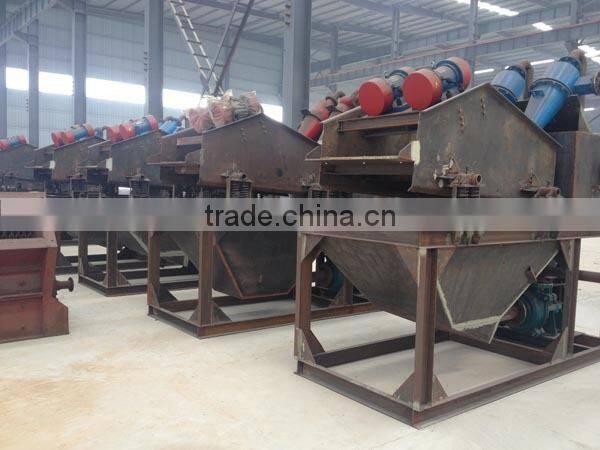

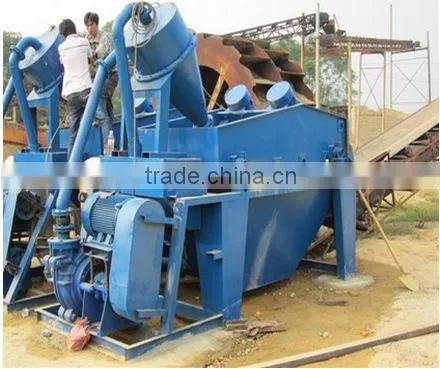

Structure: consist of motor, pump, cyclone, vibrating screen, washing trough, and returning material box.
Technical parameter:
Model |
Hydrocyclone Diameter(mm) |
Capacity (m3/h) |
Pump |
Dewatering screen |
Weight (kg) |
|||
power(kw) |
Size (inch) |
Model |
Space (m2) |
Power (kw) |
||||
L-06-300 |
300 |
30-80 |
11kw |
2.5'' |
06x2.25 |
1.35 |
2x1 |
3945 |
L-08-300 |
300 |
40-100 |
15kw |
3'' |
08x2.25 |
1.8 |
2x1.5 |
4200 |
L-10-350 |
350 |
70-130 |
18.5kw |
3'' |
10x2.25 |
2.5 |
2x1.5 |
4900 |
L-12-550 |
550 |
100-220 |
22kw |
4'' |
12x3.0 |
3.6 |
2x3.0 |
7515 |
L-12-650 |
650 |
120-272 |
30kw |
5'' |
12x3.0 |
3.6 |
2x3.0 |
7833 |
L-14-750 |
750 |
180-350 |
37kw |
6'' |
14x3.0 |
4.2 |
2x3.0 |
9610 |
L--14-750Ⅱ |
750 |
230-430 |
45kw |
6'' |
14x3.75 |
5.25 |
2x5.5 |
11850 |
L-16-900 |
900 |
250-500 |
55kw |
8'' |
16x3.75 |
5.25 |
2x5.5 |
14300 |
BL--16-650 |
2*650 |
300-500 |
55kw |
10'' |
18x3.75 |
6.00 |
2x5.5 |
16700 |
L-18-750 |
2*750 |
400-600 |
75kw |
10'' |
18x3.75 |
6.75 |
2x7.5 |
19680 |
Matching equipment for fine sand recycling machine in sand production line:

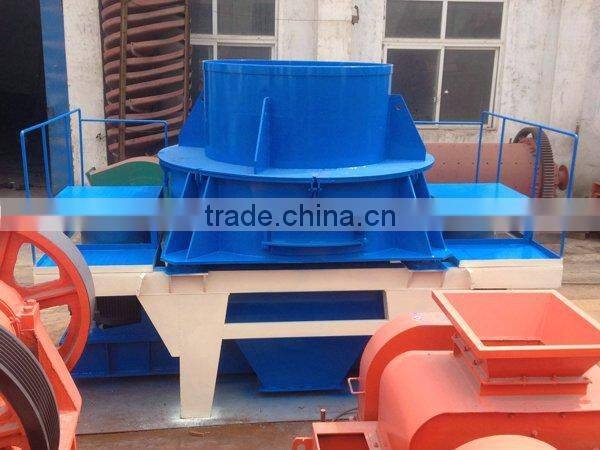

1) sand making machine

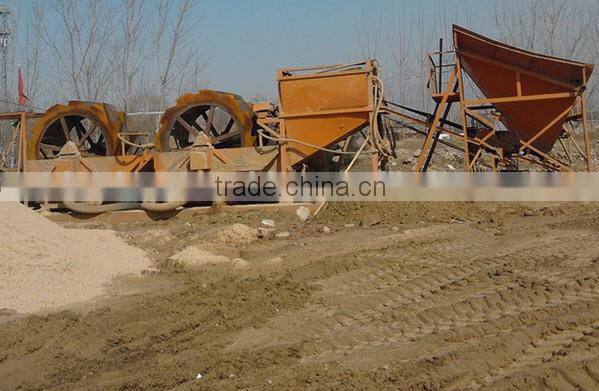

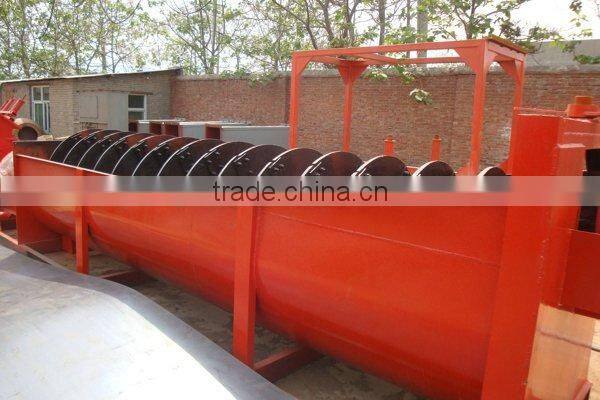

2) sand washing machine/sand washer
