Specifications
fine crusher sand maker1) Extra large practical rotor
2) Durable hammer
3) Big feeding opening
4) ISO9001
Fine crusher/sand maker for sale
Sand maker fine crusher working principle
The entire center feeding: Material falls the feed hopper, then enters the high-speed rotary sling wheel from center feeding hole, which is speeded immediately in the sling wheel. The speed can reach several dozens times of the gravity acceleration. Then Sand making machine is thrown from the sling wheel. First, it is crushed with other rebounded material fell freely from the sling wheel. Then both of them are impacted to the material lining (rock-rock) or strike back block (rock-iron), rebounded and stroke to the top of eddy cavity of Sand making machine in the inclined-up direction. Then it moves along deflection-down, and forms a continuous material curtain with the material from the impellers passage. Just like this, the material is stroke, rubbed, crushed twice or more, then is discharged from the down discharging hole.
Sand maker fine crusher Features:
1. The structure is simple, and the operating cost is low.
2. High efficiency, and low consumption.
3.Sand making machine is slightly influenced by the humidity of material, and the max humidity is 8%.
4. Sand making machine is more suitable for crushing mid-hardness materials and high-hardness materials.
5. Its product is cubic, and the density of piling up is high and the iron pollution is low.
6. The working noise is less than 75 decibels and dust pollution is little
Sand maker fine crusher specifications:
| Model | Feed at center&sides | Feed at center | Soft Material | Hard Material | REV (r/min) | Power (kw) | Motor Model | Machine Size (mm) |
| Capacity (t/h) | Max.Feeding (mm) | |||||||
| B-7611 | 120-180 | 60-90 | 35 | 30 | 1700-1890 | 4-55×2 | Y250M-4/55 | 4100×2250×2258 |
| B-8518 | 200-260 | 100-130 | 40 | 35 | 1520-1690 | 4-90×2 | Y280M-4/90 | 4140×2280×2425 |
| B-9526 | 300-380 | 150-190 | 45 | 40 | 1360-1510 | 4-132×2 | Y315M-4/132 | 4560×2450×2780 |
| B-1140 | 450-520 | 225-260 | 50 | 45 | 1180-1310 | 4-200×2 | Y315L2-4/200 | 5100×2690×3200 |

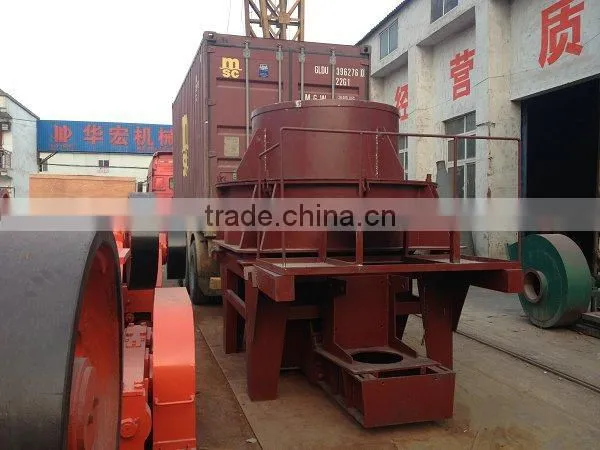

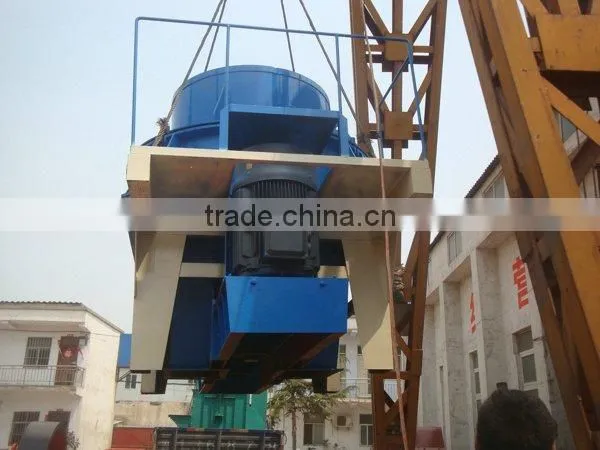

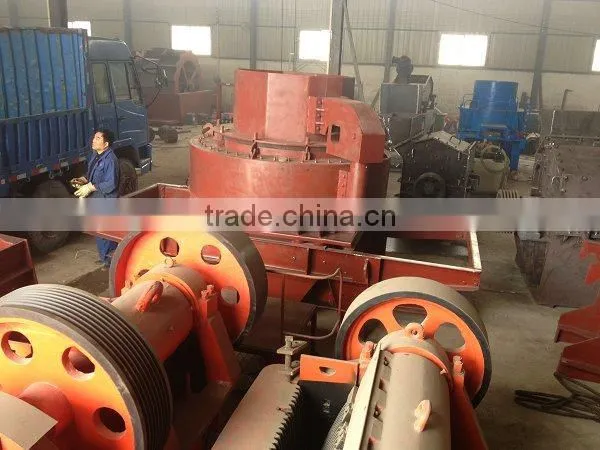

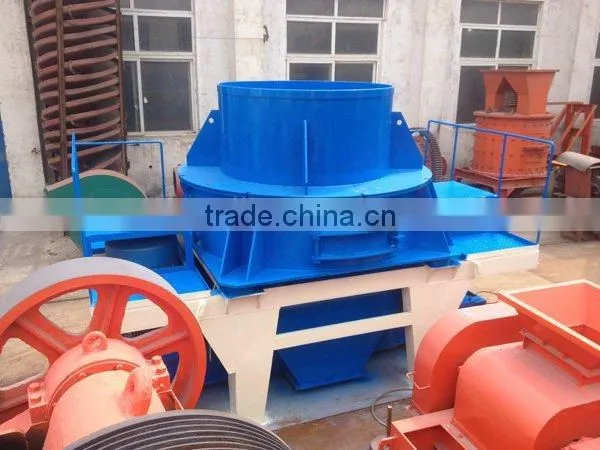

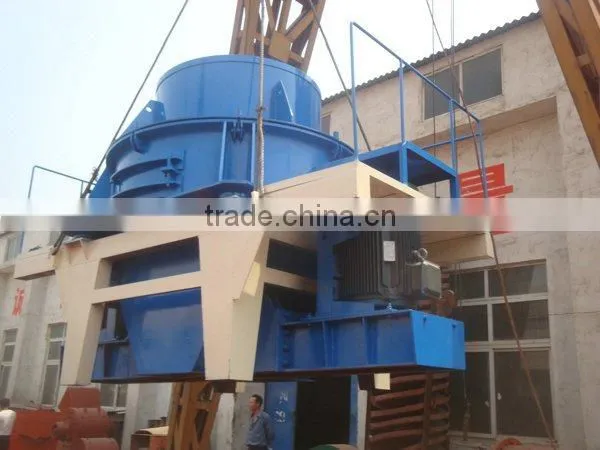

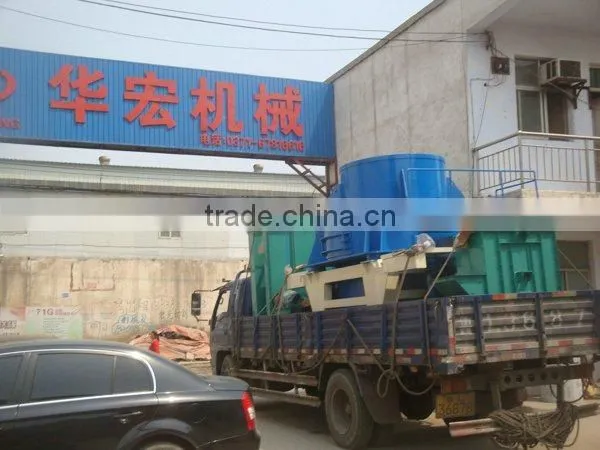

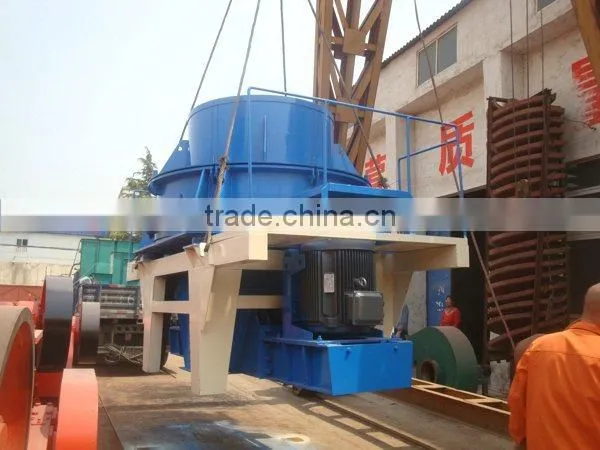

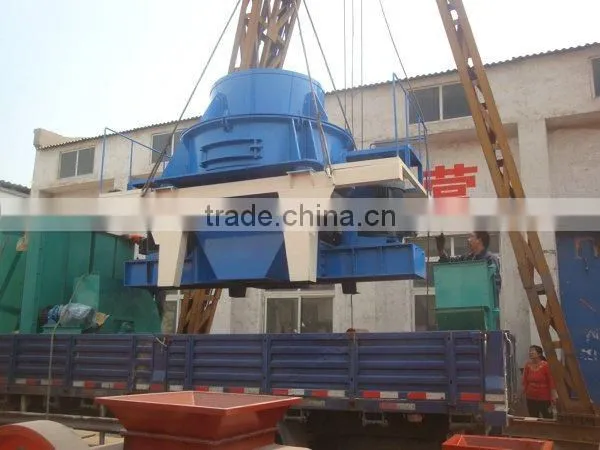

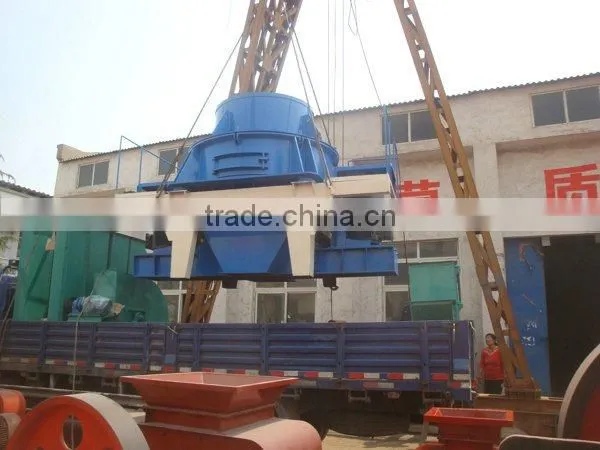

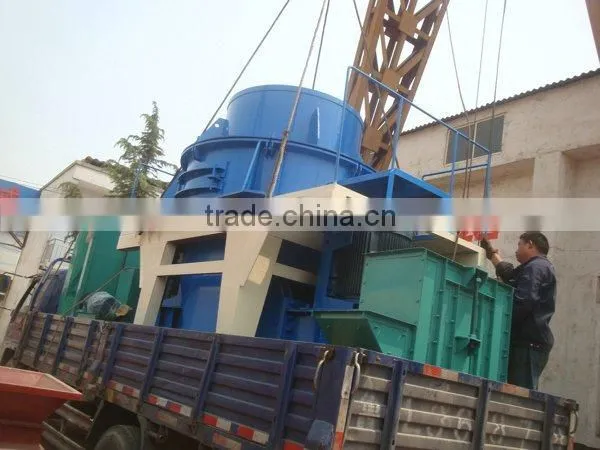

Pictures show of sand maker fine crusher
Welcome to visit our factory!!
