Specifications
vertical impact crusher1.CE/ISO9001
2.Good final shape
3.Technical durable design
Stone Crushing Machine Vertical Shaft Impact Crusher

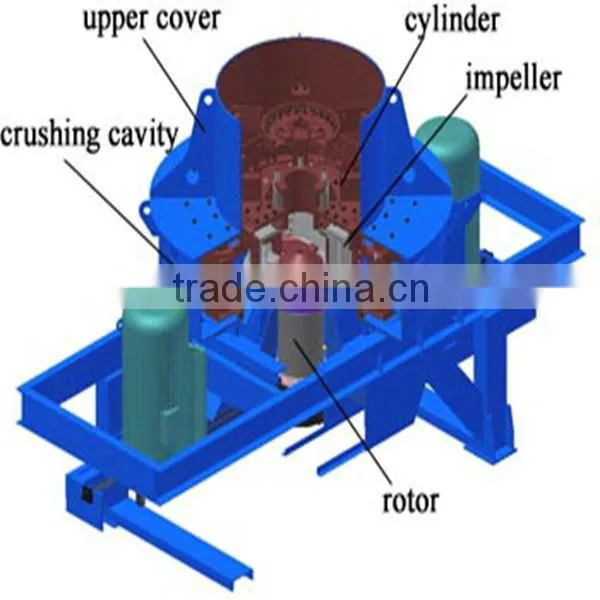

Structure of the vertical impact crusher
Application of vertical impact crusher
1. Used for pebble, granite,quartzite, iron ore, limestone,etc.
2. Applied in expressway,high-rise building, municipal works, etc.
3. Our company provides mainly three types of sand making machine for sale: the VSI5X Sand Making Machine, the VSI Sand Making Machine and the PCL hot sale sand mak
Advantages of vertical impact crusher
1. The cubic shape with small iron pollution;
2. Form a protective bottom layer which makes the equipment more durable;
3. Adopt hard and wear-resistant materials extend the service life;
4. Small bulk and light weight can be changed easily.
5. Simple structure, stable operation;
6. Low energy consumption, high output and big reduction ratio;
7. Convenient operation, installation and maintenance;
Working principles of vertical impact crusher
The materials fall into the crusher and are divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials bump and crush fast during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen.

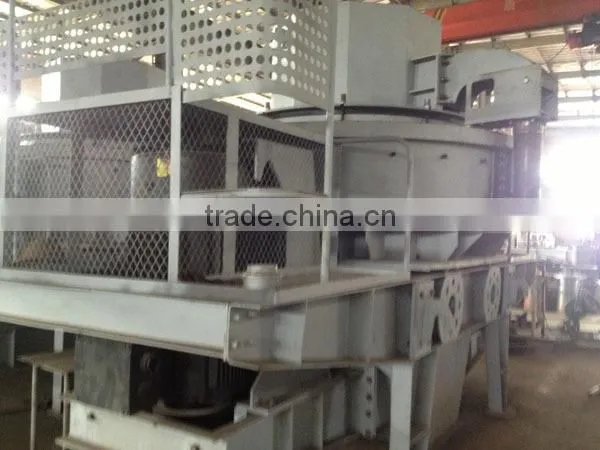

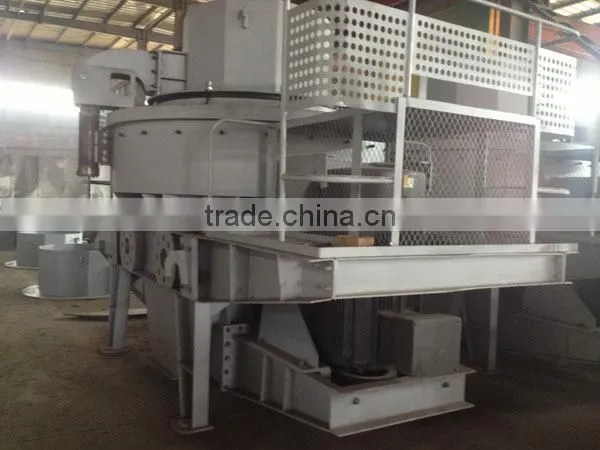

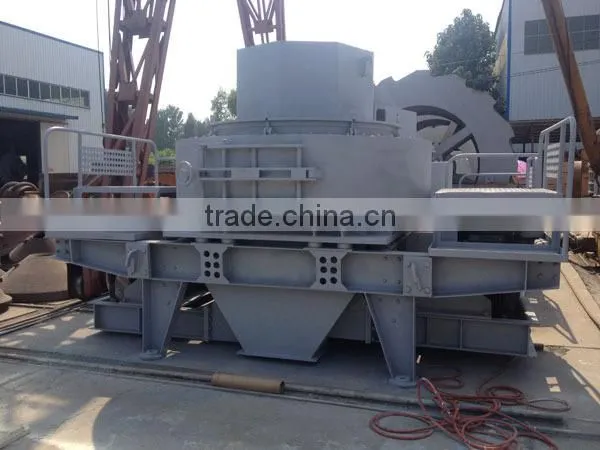

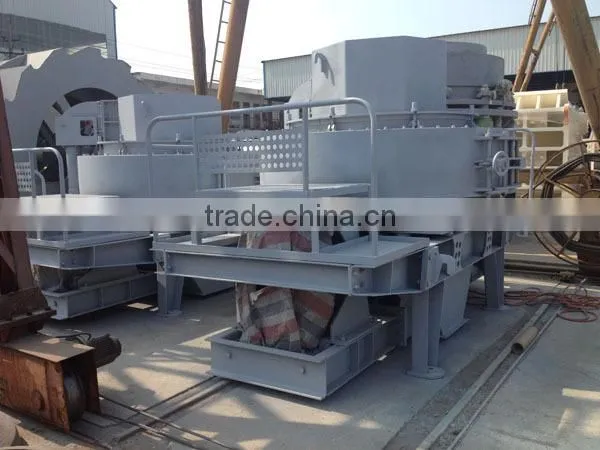

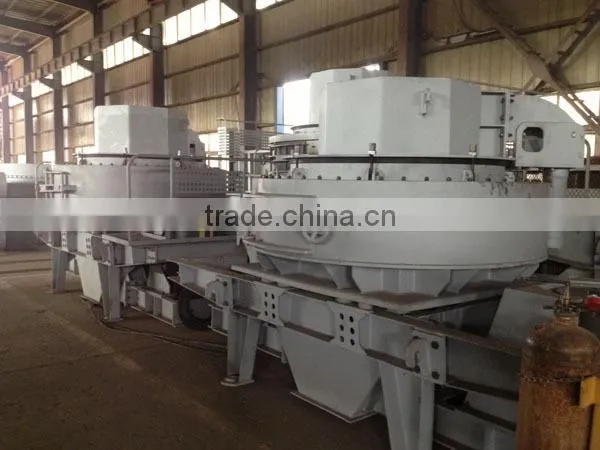

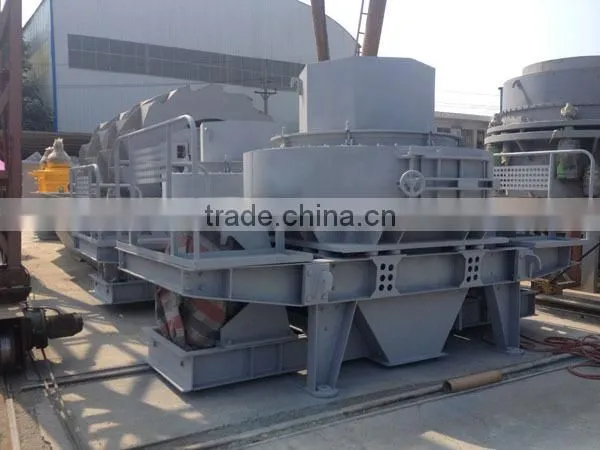

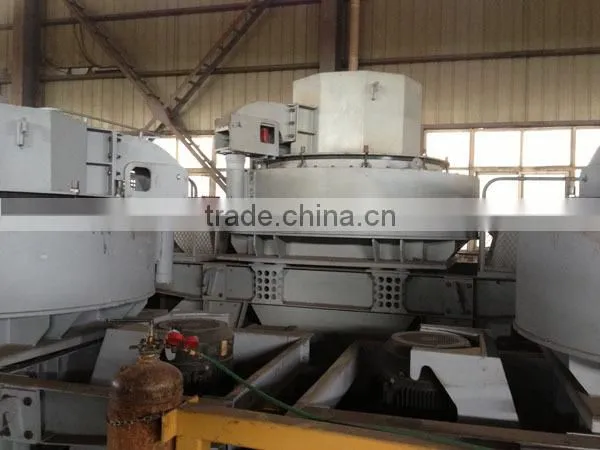

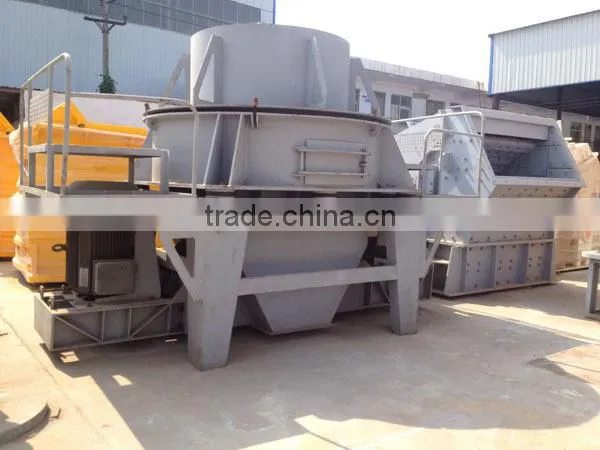

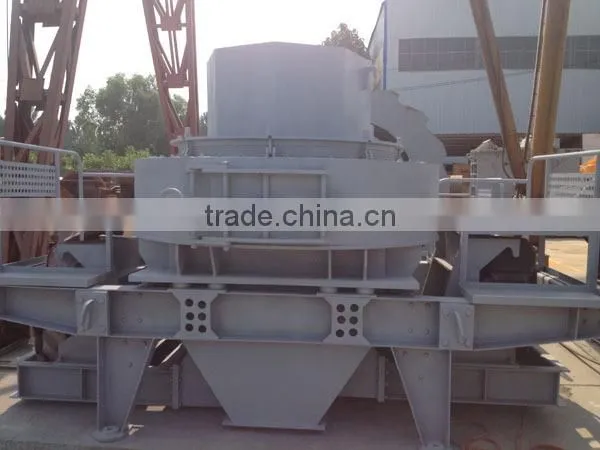

Detailed looks of the vertical impact crusher in our factory
Vertical impact crusher technical parameters
| Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | ||
| Throughput capacity (t/h) | Center and Ring feeding | 120~180 | 200~260 | 300~380 | 450~520 | |
| Center feeding | 60~90 | 100~130 | 150~190 | 225~260 | ||
| Max. Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 | |
| Hard material | <30 | <35 | <40 | <45 | ||
| Rotation speed (r/min) | 1700~1890 | 1520~1690 | 1360~1510 | 1180~1310 | ||
| Power of double motor (KW) | 110 | 180 | 264 | 400 | ||
|
Overall dimension L x W x H (mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | ||
| Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | ||
| Power supply | 380v,50Hz |
|||||
| Lubrication & hydraulic station | Power for double motor | 2 x 0.31 KW | ||||
| Safety | To make sure the supply of oil with double oil pump,working without oil, temperature when water cools, start the motor byheating it in winter. | |||||
| Power for oil box heater | 2 KW | |||||
| Overall dimension L x W x H (mm) |
820 x 520 x 1270 | |||||
Our service
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
