High quality fine sand maker, vertical shaft impact crusher,VSI machine
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai or as request
- T/T D/P D/A Credit Card PayPal
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, sand making machine | Application: | sand making |
Motor Type: | AC Motor | Power(W): | 110 kw | Capacity(t/h): | 120~180 |
Place of Origin: | Henan, China | Brand Name: | Huahong | Model Number: | VSI7611 |
Dimension(L*W*H): | 3700x2150x2100 mm | Weight: | 11.8 t | Certification: | ISO;CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
fine sand maker1.CE/ISO9001
2.Good final shape
3.Technical durable design
High quality fine sand maker, vertical shaft impact crusher,VSI machine

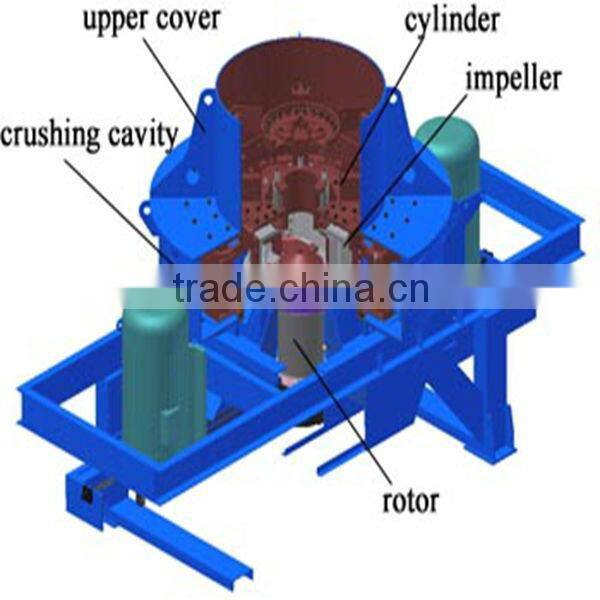

Structure of the fine sand maker
Application of fine sand maker
1. Used for pebble, granite,quartzite, iron ore, limestone,etc.
2. Applied in expressway,high-rise building, municipal works, etc.
3. Our company provides mainly three types of sand making machine for sale: the VSI5X Sand Making Machine, the VSI Sand Making Machine and the PCL hot sale sand mak
Advantages of fine sand maker
1. The cubic shape with small iron pollution;
2. Form a protective bottom layer which makes the equipment more durable;
3. Adopt hard and wear-resistant materials extend the service life;
4. Small bulk and light weight can be changed easily.
5. Simple structure, stable operation;
6. Low energy consumption, high output and big reduction ratio;
7. Convenient operation, installation and maintenance;
Working principles of fine sand maker
The materials fall into the crusher and are divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials bump and crush fast during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen.

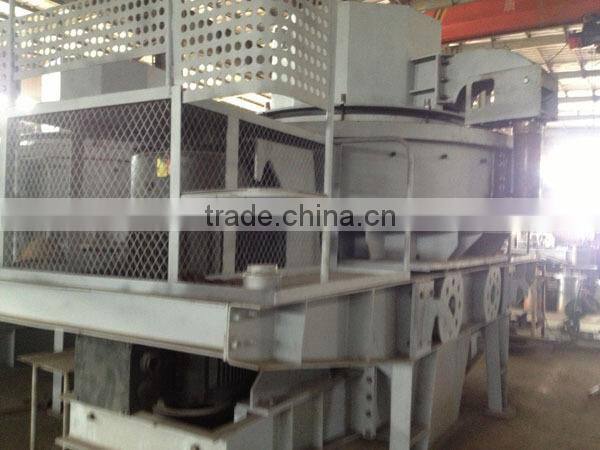

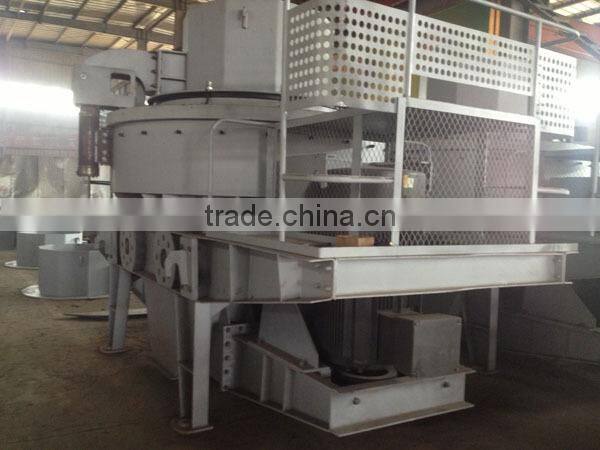

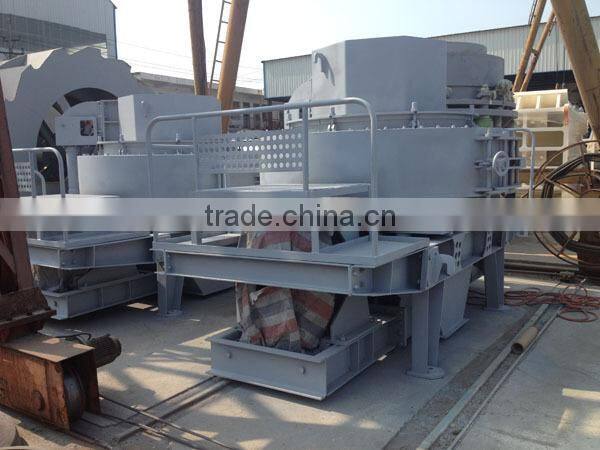

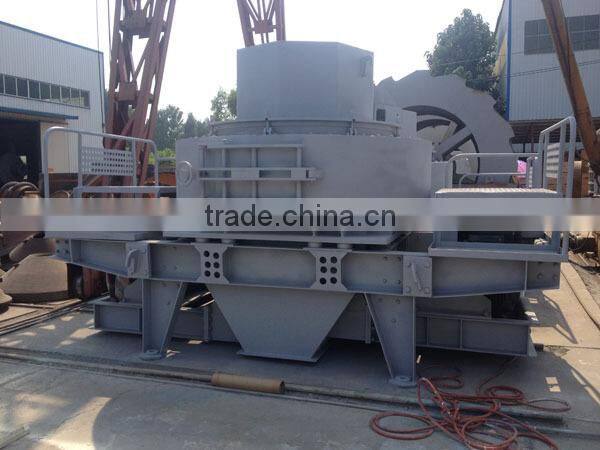

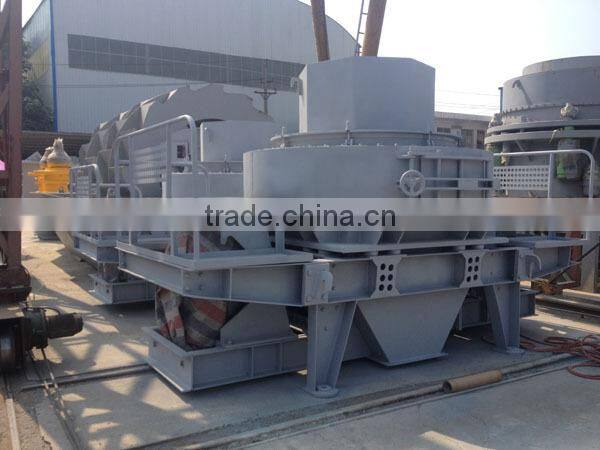

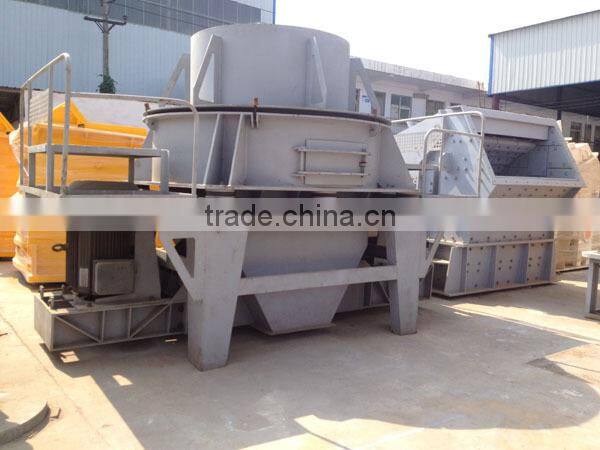

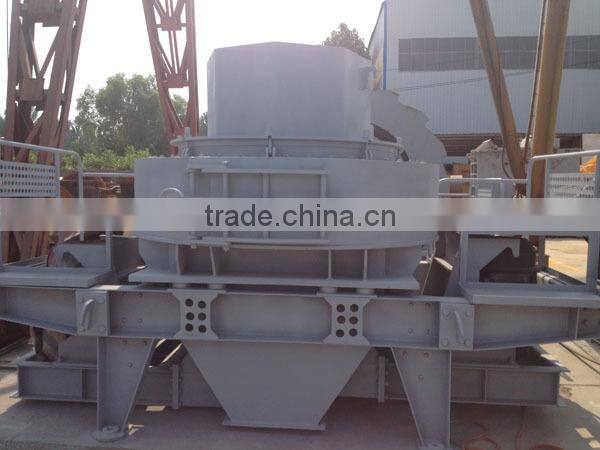

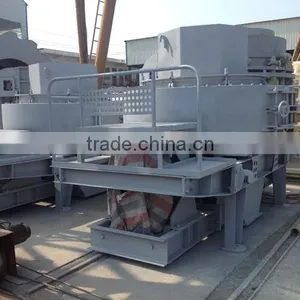

Detailed looks of the fine sand maker in our factory
Fine sand makertechnical parameters
Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | ||
Throughput capacity (t/h) | Center and Ring feeding | 120~180 | 200~260 | 300~380 | 450~520 | |
Center feeding | 60~90 | 100~130 | 150~190 | 225~260 | ||
Max. Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 | |
Hard material | <30 | <35 | <40 | <45 | ||
Rotation speed (r/min) | 1700~1890 | 1520~1690 | 1360~1510 | 1180~1310 | ||
Power of double motor (KW) | 110 | 180 | 264 | 400 | ||
Overall dimension L x W x H (mm) | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | ||
Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | ||
Power supply | 380v,50Hz | |||||
Lubrication & hydraulic station | Power for double motor | 2 x 0.31 KW | ||||
Safety | To make sure the supply of oil with double oil pump,working without oil, temperature when water cools, start the motor byheating it in winter. | |||||
Power for oil box heater | 2 KW | |||||
Overall dimension L x W x H (mm) | 820 x 520 x 1270 |
Our service
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
