Sand Make Crusher,sand Making,sand Making Plant

Sand Make Crusher,sand Making,sand Making Plant thumbnail-1
Sand Make Crusher,sand Making,sand Making Plant photo-1
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, sand making machine
Application:
stone crush
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, sand making machine
Application stone crush
Motor Type AC Motor
Power(W) 110-132kw
Capacity(t/h) 90-120 t/h
Place of Origin Hainan, China
Brand Name Huahong
Model Number PXJ 1200x1200
Certification ISO9001
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Artifical sand making machine:
Finished size less than 5mm;
High effiency,big crushing ratio;
Long-life hammer;
90-120t/

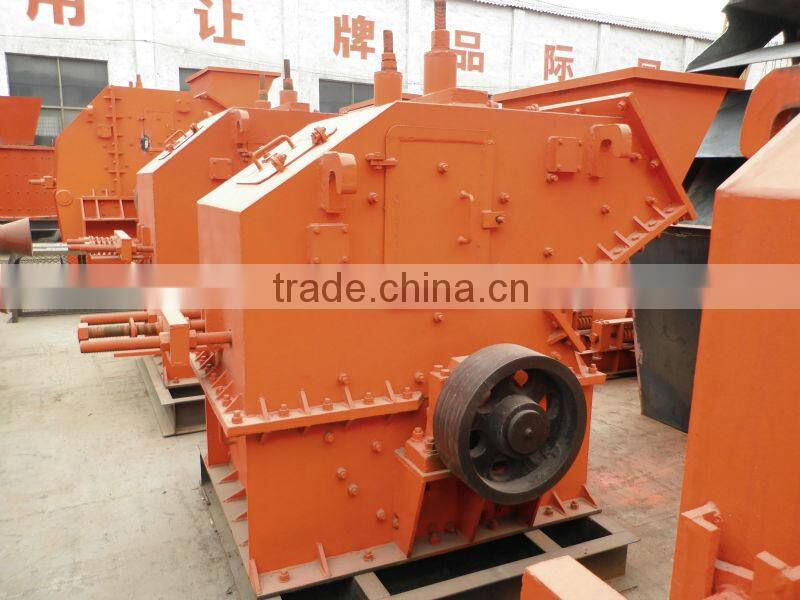

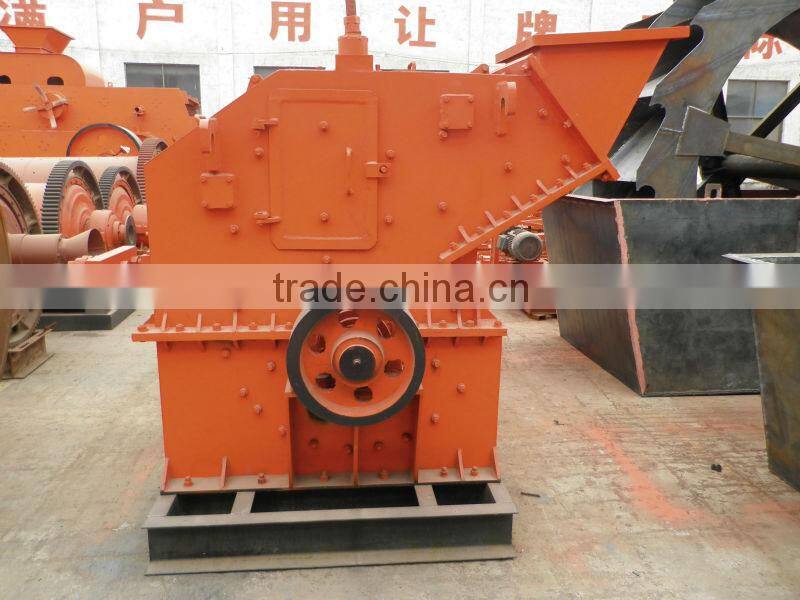

                                     Huahong sand making machine



Huahong sand making machine's application:
1.PXJ super-fineness energy saving crusher is also called new sand making machine.

2.It’s widely used in the chemical industry,construction,coal mining,refractory material and so on.

3.Further crushing the medium hard materials,such as gypsum,talcum, imestone,cement,clay,Calcite,granite, river gravel,basalt and so on.

Sand make crusher,sand making,sand making plant





Huahong sand making machine's featutres:
1.Small material size, uniform granularity, big producing capacity, long-life hammer, supporting small power, and change three for two broken broken, process simplification, simple structure, easy maintenance, and the smooth running characteristics.



2.Equipment investment lower than the same size of the traditional technique and equipment 35% -50%, higher than the same scale output efficiency of traditional technique and equipment 35% -50% (limestone as an example: One product size ≤ 5 mm accounting for 85 percent).



3.Long-term maintenance costs run less than the same size of the traditional technique and equipment 35% -50%.



Sand make crusher,sand making,sand making plant







Huahong sand making machine's main technical parameters:



model
Feeder Opening
mm
Feeding
Size
mm
Output size
mm
Output size
mm
Capacity t/h
Motor
(kw)
Clinker
limestone
Siliceous sand
800×400
400×185
120
≤5
5-20
20-30
30-45
35-45
22-37
800×600
500×250
180
≤5
5-20
35-40
40-55
45-55
37-45
800×800
550×330
180
≤5
5-20
35-45
60-65
55-65
37-45
1010×1010
1000×350
180
≤5
5-20
45-55
60-75
65-75
45-55
1200×1000
1200×400
180
≤5
5-20
80-110
80-100
80-100
90-110
1200×1200
1200×450
180
≤5
5-20
100-110
90-100
90-120
110-132
1400×1400
1500×500
190
≤5
5-20
100-150
100-150
120-150
160
1600×1600
1600×550
190
≤5
5-20
170-210
190-250
190-250
250
1800×1800
1800×800
190
≤5
5-20
250-270
280-310
280-310
280

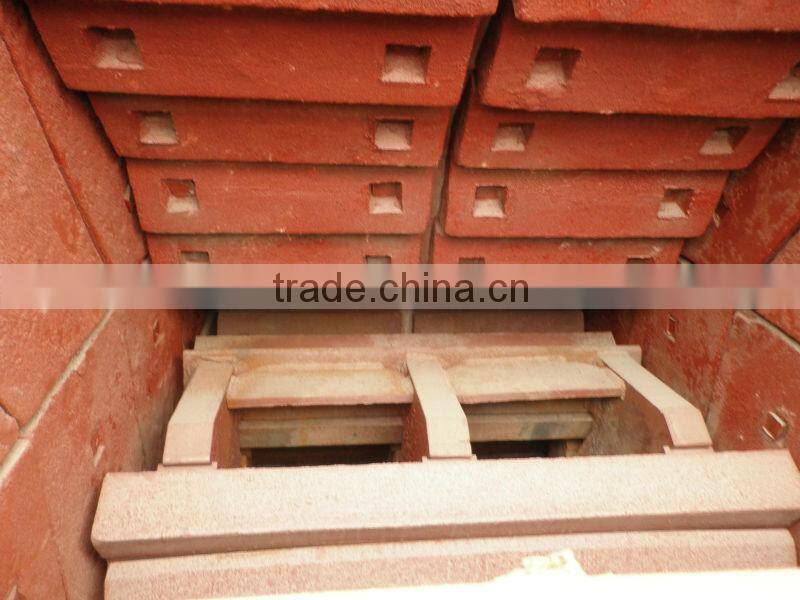

The inner structure:

Sand make crusher,sand making,sand making plant

Welcome to visit our factory!

          We will provide you our best equipments at the

            reasonable price to meet your requirements.

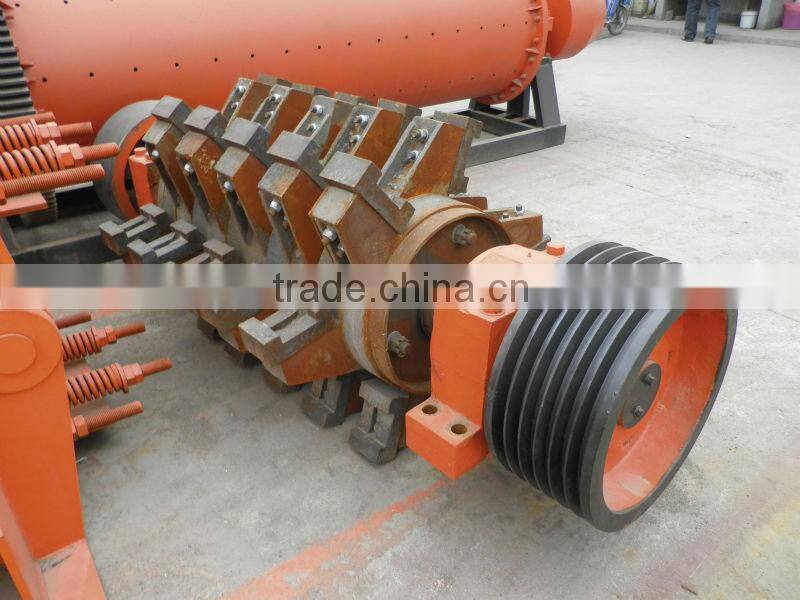

The rotor used in the machine:

Sand make crusher,sand making,sand making plant
