Specifications
raymond mill for cement powder
1.High efficiency raymond mill
2.Lower energy raymond mill
3.particle output

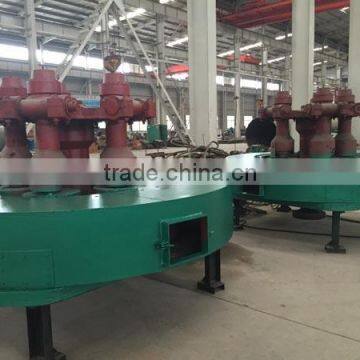

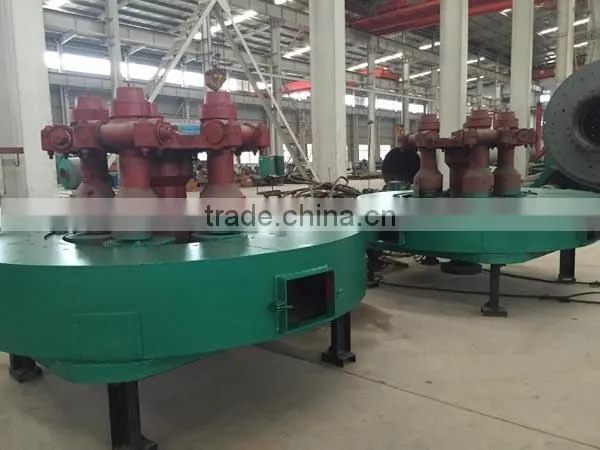

Ultrafine limestone milling machine raymond mill
General introduction
Raymond mill widely used in grinding equipment of mine, cement, chemical industry, is one of the important equipment of non metallic mineral deep procession. Since its strong stability,adaptability and high cost performance it has popularized in non metallic mineral processing field. Applied in grinding various non plastic ore, mineral soil,metallic oxide, chemical composition etc. which Mohs hardness not more than grade 7,humidity less than 6% non flammable and combustible material such as speckstone, dinas rock, graphite, fluorite, magnesia stone, bentonite, kaoline, pottery clay etc.
Working principle of raymond mill for cement powder
In the mainframe of raymond mill, there are strong springs with pressure as high as1000-1500 kg equipped on the roller suspender. When Raymond Mill works, the roller rotates around the principal axis, and clings to ring under the effect of the strong spring and eccentricity. Its press is 1.2 times of Raymond mill under the same press condition, so the production is largely increased. When the materials are sent into the grinding chamber, they are brought to the space between the roller and ring and get grinded. Then the powder grinded will be blown into separator. The fine powder after departed with the air is discharged through the outlet as final product. The large-sized powder falls back for regrinding. The air will be back to the blower for repetition of the above process. The left air wil come to the bag filter to get cleaned. When the wear and tear between roller and the ring reaches certain degree, adjust the length of the strong spring,, so to keep the invariable pressure between the roller and the ring, to make sure the stable production and the fineness.
Raymond mill for cement powder parameters
| Size | Roller | Ring | Max.granulation of feeding materials(mm) | Fineness of product(mm) | Horsepower(kw) | ||||
| No. | Dia.(mm) | Height Dia.(mm) | Inside Dia.(mm) | Height Dia.(mm) | Crusher | Pulverizer | |||
| 3R 2714 | 3 | 270 | 140 | 830 | 140 | 130 | 15 | 0.044~0.125 (325mesh-125mesh) | ≤22 |
| 4R 3216 | 4 | 320 | 160 | 970 | 160 | 210 | 20 | ≤37 | |
| 5R 4119 | 5 | 410 | 190 | 1270 | 190 | 210 | 20 | ≤75 | |
| 6R 5113 | 6 | 510 | 230 | 1670 | 230 | 350 | 60 | ≤185 | |
List of power used on attachments of raymond mill for limestone
| Model | Mill | Blower | Jaw Crusher | Separator | Bucket | Electro-magnetic Vibrating Feeder |
| 3R 2714 | 22 | 15 | 5.5 | 4 | 3 | 0.06 |
| 4R 3216 | 37 | 30 | 15 | 5.5 | 3 | 0.2 |
| 5R 4119 | 75 | 55 | 15 | 7.5 | 11 | 0.2 |
| 6R 5113 | 185 | 160 | 30 | 15 | 11 | 0.45 |
Standard capacity of raymond mill for limestone
| Model | Mhos Scale Number | ||||
| >2~3 | >3~4 | >4~5 | >5~6 | >6~7 | |
| Capacity(t/h) | |||||
| 3R 2714 | 1.3~1.6 | 1~1.3 | 0.7~1 | 0.5~0.7 | 0.3~0.5 |
| 4R 3216 | 2.6~3.2 | 2~2.6 | 1.6~2 | 1.2~1.6 | 1~1.2 |
| 5R 4119 | 5~6.3 | 4~5 | 3.2~4 | 2.5~3.2 | 2~2.5 |
| 6R 5113 | 12.5~16 | 10~12.5 | 8~10 | 6.25~8 |
5~6.25
|
Certification
1,We offer comprehensive technical and business consultation services in the pre-service.
2,We propose the most suitable scheme and equipment for our clients.
3,We design and fabricate targeted products according to our client's special requirements.
4,We provide life-long maintenance service.
How is the quality of your products ?
Our products are manufactured strictly according to national and international standard,
and we take a test on every machine before delivered out. If you want see our quality certifications
and all kinds of testing report, please just ask us for it.
How about price?
Yes, we are factory and be able to give you lowest price below market one,
and we have a policy that“ for saving time and absolutely honest business attitude,
we quote as lowest as possible for any customer, and discount can be given according to quantity”,
if you like bargain and factory price is not low enough as you think, just don’t waste your time.
Please trust the quotation we would give you, it is professional one.
